| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T04_9000003272_22114cztM0_level2.evt | modeM0/AS1A07_007T04_9000003272_22114cztM0_level2_quad_clean.evt |
| Size (bytes) | 538,361,280 | 81,990,720 |
| Size | 513.4 MB | 78.2 MB |
| Events in quadrant A | 3,150,934 | 519,467 |
| Events in quadrant B | 3,270,040 | 530,832 |
| Events in quadrant C | 3,190,699 | 501,451 |
| Events in quadrant D | 6,249,478 | 475,061 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13432 | 2 |
| B | 0 | 13755 | 2 |
| C | 0 | 13581 | 2 |
| D | 0 | 23223 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6538 | 49 | 0.749465% |
| B | 6539 | 66 | 1.009329% |
| C | 6539 | 84 | 1.284600% |
| D | 6539 | 561 | 8.579293% |

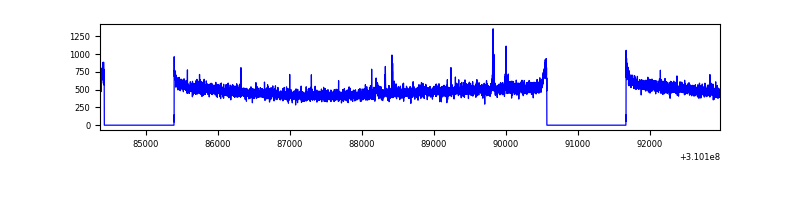

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8608 | 6540 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8609 | 6541 | 1 | 1 | 0.01% | 0.02% |  |
| C | 8609 | 6541 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8609 | 6541 | 458 | 458 | 5.32% | 7.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11712 | 66.1 | 816 | 798 | 165.1 |
| A | 0 | 226 | 6940 | 37.2 | 816 | 798 | 165.1 |
| A | 3 | 137 | 6818 | 36.46 | 816 | 798 | 165.1 |
| B | 0 | 230 | 38341 | 241.61 | 816 | 797 | 155.4 |
| B | 12 | 111 | 18770 | 115.66 | 816 | 797 | 155.4 |
| B | 11 | 111 | 16539 | 101.3 | 816 | 797 | 155.4 |
| C | 14 | 238 | 124502 | 672.36 | 781 | 787 | 184.0 |
| C | 10 | 22 | 19291 | 100.56 | 781 | 787 | 184.0 |
| C | 13 | 61 | 5430 | 25.23 | 781 | 787 | 184.0 |
| D | 2 | 133 | 2979307 | 16117.66 | 751 | 727 | 184.8 |
| D | 2 | 136 | 203286 | 1096.09 | 751 | 727 | 184.8 |
| D | 1 | 52 | 163984 | 883.41 | 751 | 727 | 184.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

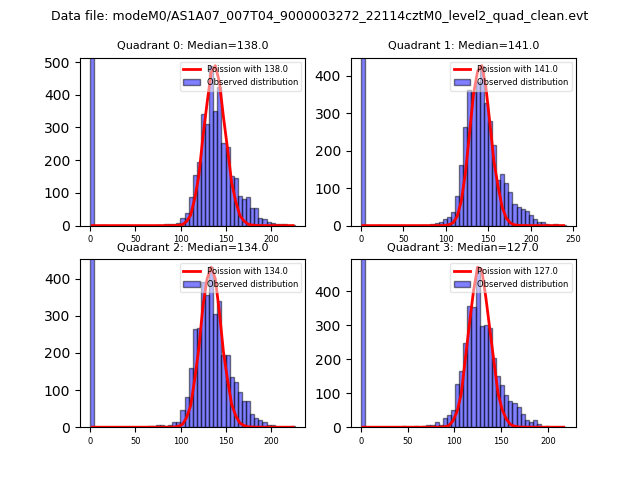

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

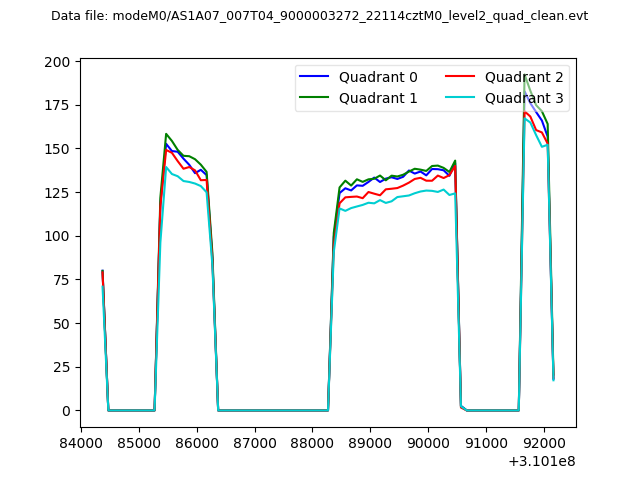

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

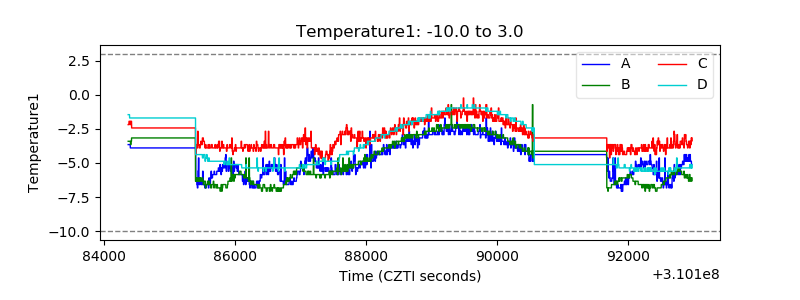

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

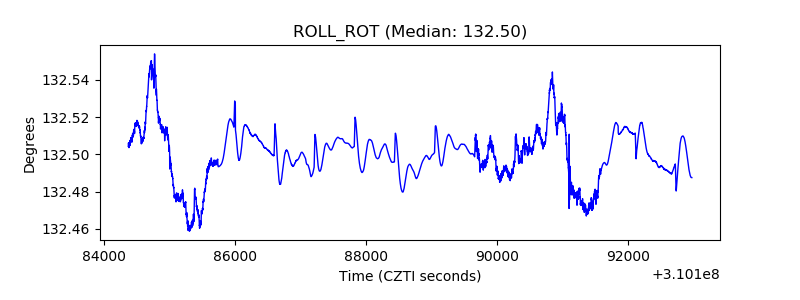

| _ROLL_ROT |  |
| _Roll_DEC |  |

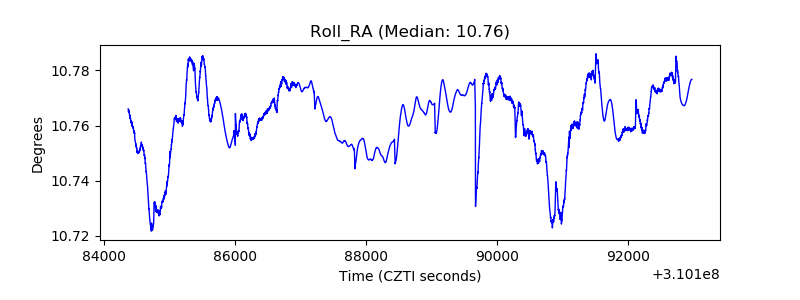

| _Roll_RA |  |
| Veto Counter |  |
