| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_145T01_9000003278_22147cztM0_level2.evt | modeM0/AS1T03_145T01_9000003278_22147cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,041,920 | 94,101,120 |
| Size | 474.0 MB | 89.7 MB |
| Events in quadrant A | 3,556,176 | 605,880 |
| Events in quadrant B | 3,639,266 | 614,692 |
| Events in quadrant C | 3,831,398 | 586,492 |
| Events in quadrant D | 3,577,610 | 581,901 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14514 | 2 |
| B | 0 | 14821 | 2 |
| C | 0 | 15646 | 2 |
| D | 0 | 14797 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6606 | 132 | 1.998183% |
| B | 6606 | 187 | 2.830760% |
| C | 6607 | 288 | 4.359013% |
| D | 6607 | 130 | 1.967610% |

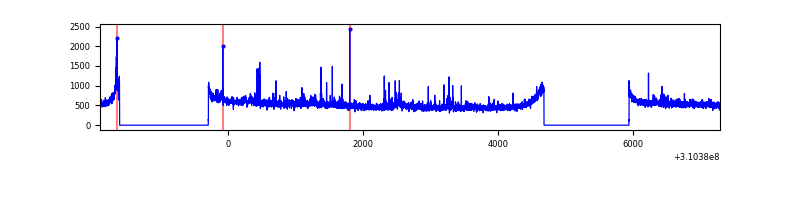

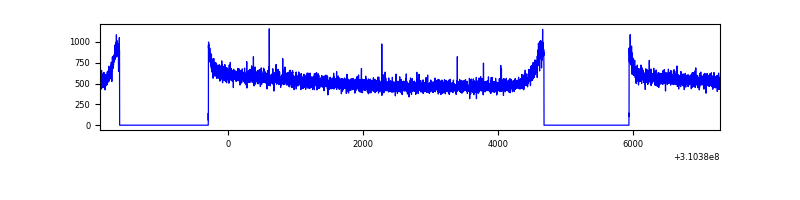

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9181 | 6608 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9181 | 6608 | 2 | 2 | 0.02% | 0.03% |  |
| C | 9182 | 6609 | 16 | 16 | 0.17% | 0.24% |  |
| D | 9182 | 6609 | 3 | 3 | 0.03% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10838 | 54.31 | 922 | 907 | 182.9 |
| A | 0 | 226 | 7789 | 37.63 | 922 | 907 | 182.9 |
| A | 3 | 137 | 7423 | 35.63 | 922 | 907 | 182.9 |
| B | 3 | 64 | 27632 | 156.29 | 914 | 895 | 171.1 |
| B | 12 | 111 | 20066 | 112.06 | 914 | 895 | 171.1 |
| B | 11 | 111 | 18270 | 101.56 | 914 | 895 | 171.1 |
| C | 3 | 9 | 141727 | 700.65 | 878 | 885 | 201.0 |
| C | 14 | 238 | 141697 | 700.5 | 878 | 885 | 201.0 |
| C | 10 | 22 | 123520 | 610.07 | 878 | 885 | 201.0 |
| D | 1 | 52 | 148683 | 682.35 | 901 | 874 | 216.6 |
| D | 2 | 234 | 30349 | 136.07 | 901 | 874 | 216.6 |
| D | 7 | 223 | 11251 | 47.9 | 901 | 874 | 216.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

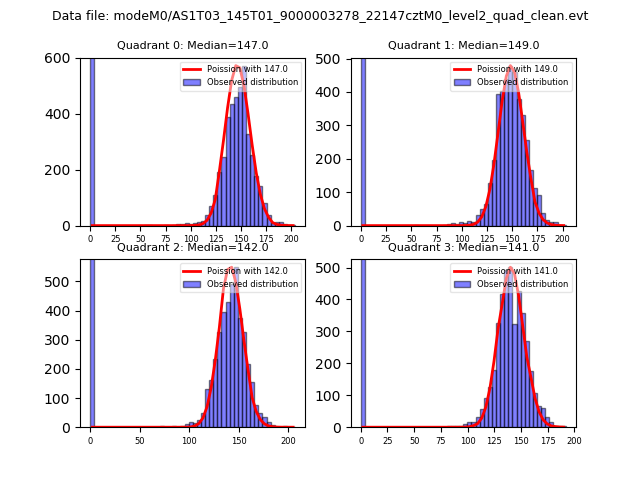

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

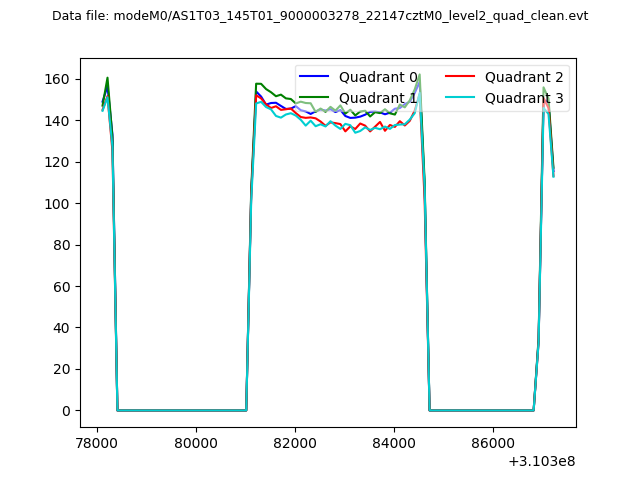

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

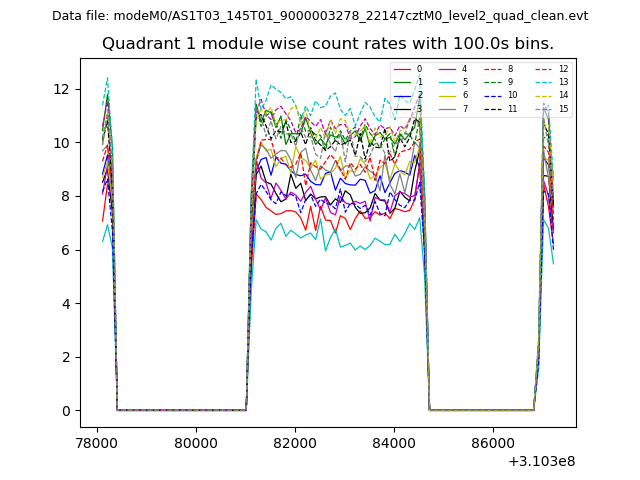

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

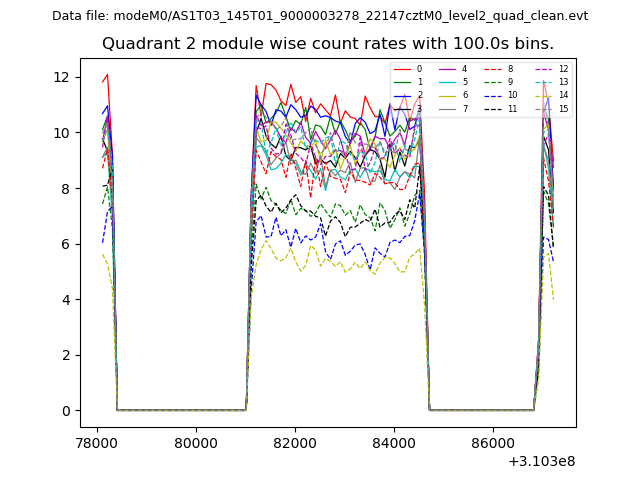

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

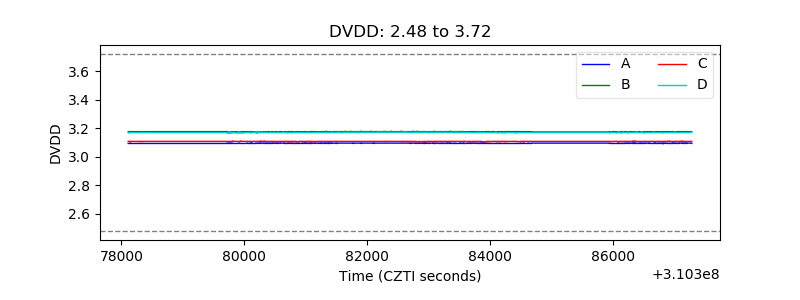

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

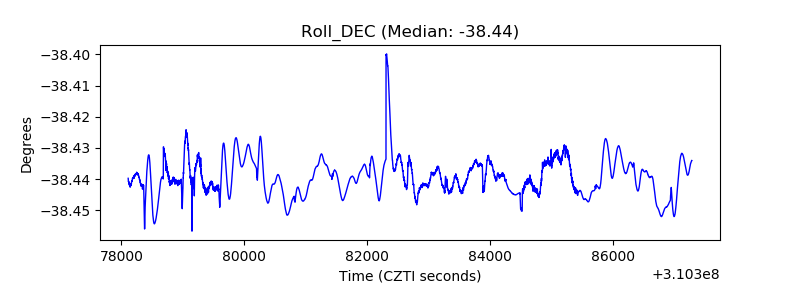

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
