| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T03_9000003280_22176cztM0_level2.evt | modeM0/AS1A07_007T03_9000003280_22176cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,768,640 | 75,346,560 |
| Size | 469.0 MB | 71.9 MB |
| Events in quadrant A | 3,365,666 | 474,315 |
| Events in quadrant B | 3,445,531 | 476,151 |
| Events in quadrant C | 3,336,059 | 449,533 |
| Events in quadrant D | 4,313,420 | 436,803 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13601 | 2 |
| B | 0 | 13906 | 2 |
| C | 0 | 13564 | 2 |
| D | 0 | 16762 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6377 | 104 | 1.630861% |
| B | 6377 | 147 | 2.305159% |
| C | 6377 | 131 | 2.054257% |
| D | 6377 | 247 | 3.873295% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7622 | 6379 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7622 | 6379 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7622 | 6379 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7622 | 6379 | 209 | 209 | 2.74% | 3.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10805 | 57.37 | 871 | 855 | 173.4 |
| A | 15 | 174 | 8805 | 45.84 | 871 | 855 | 173.4 |
| A | 0 | 226 | 7463 | 38.1 | 871 | 855 | 173.4 |
| B | 3 | 64 | 34314 | 209.11 | 862 | 845 | 160.1 |
| B | 4 | 171 | 24006 | 144.7 | 862 | 845 | 160.1 |
| B | 12 | 111 | 19226 | 114.84 | 862 | 845 | 160.1 |
| C | 14 | 238 | 134159 | 707.41 | 819 | 826 | 188.5 |
| C | 0 | 10 | 6749 | 31.43 | 819 | 826 | 188.5 |
| C | 13 | 61 | 5815 | 26.47 | 819 | 826 | 188.5 |
| D | 7 | 236 | 541844 | 2704.66 | 830 | 808 | 200.0 |
| D | 7 | 221 | 473785 | 2364.43 | 830 | 808 | 200.0 |
| D | 7 | 253 | 63986 | 315.83 | 830 | 808 | 200.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

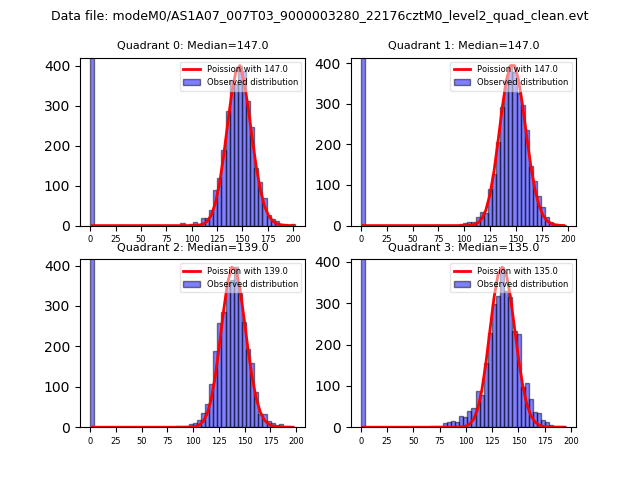

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

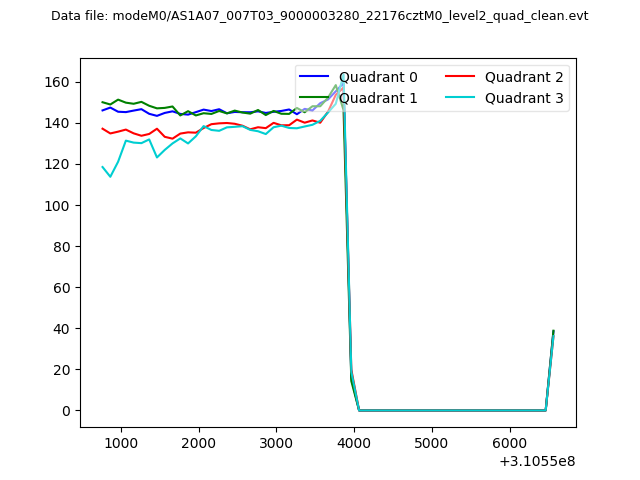

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

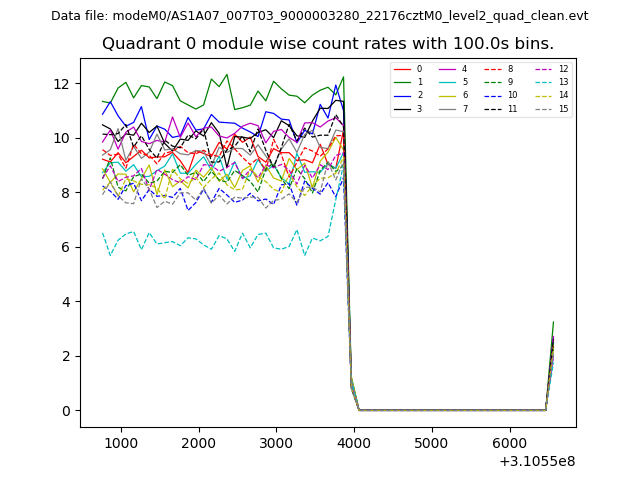

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

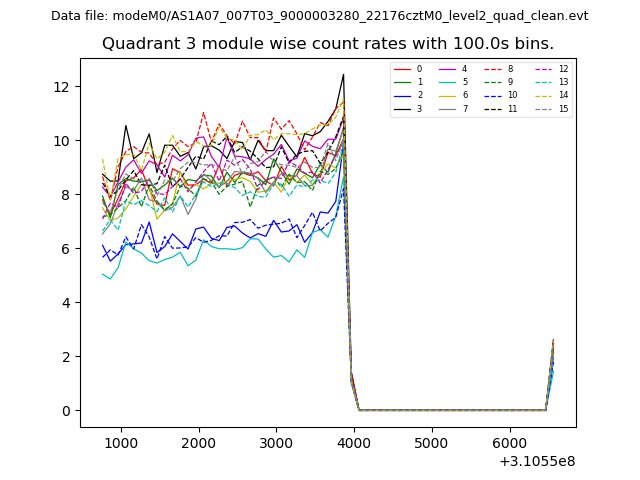

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

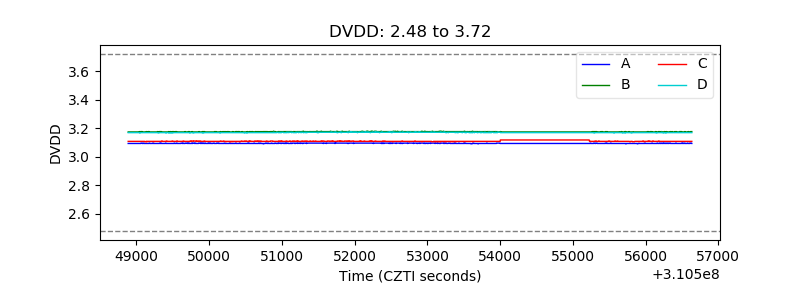

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

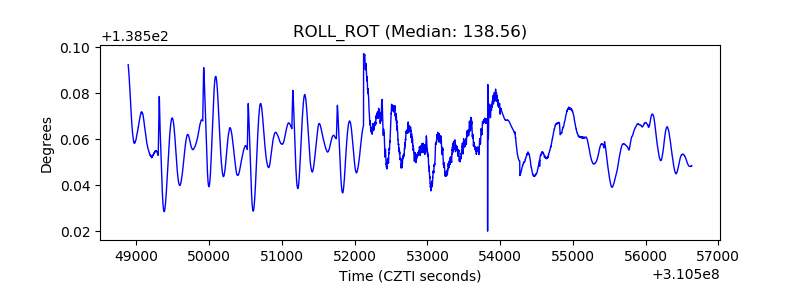

| _ROLL_ROT |  |

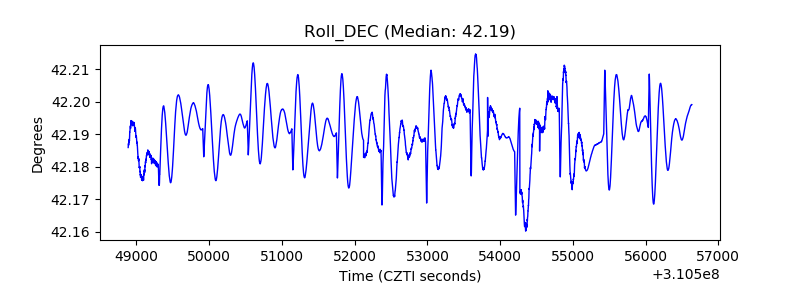

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
