| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T03_9000003280_22177cztM0_level2.evt | modeM0/AS1A07_007T03_9000003280_22177cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,531,520 | 92,344,320 |
| Size | 448.7 MB | 88.1 MB |
| Events in quadrant A | 3,364,895 | 597,318 |
| Events in quadrant B | 3,563,245 | 601,929 |
| Events in quadrant C | 3,343,837 | 572,293 |
| Events in quadrant D | 3,528,282 | 563,408 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13847 | 2 |
| B | 0 | 14470 | 2 |
| C | 0 | 13836 | 2 |
| D | 0 | 14615 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6627 | 152 | 2.293647% |
| B | 6628 | 186 | 2.806276% |
| C | 6628 | 155 | 2.338564% |
| D | 6628 | 109 | 1.644538% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8922 | 6630 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8923 | 6631 | 6 | 6 | 0.07% | 0.09% |  |
| C | 8923 | 6631 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8923 | 6631 | 8 | 8 | 0.09% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11839 | 63.11 | 870 | 854 | 174.1 |
| A | 15 | 174 | 8758 | 45.41 | 870 | 854 | 174.1 |
| A | 0 | 226 | 7327 | 37.19 | 870 | 854 | 174.1 |
| B | 4 | 171 | 148499 | 920.82 | 858 | 836 | 160.4 |
| B | 12 | 111 | 19404 | 115.79 | 858 | 836 | 160.4 |
| B | 11 | 111 | 17517 | 104.02 | 858 | 836 | 160.4 |
| C | 14 | 238 | 131674 | 688.98 | 820 | 826 | 189.9 |
| C | 10 | 22 | 7184 | 33.48 | 820 | 826 | 189.9 |
| C | 0 | 10 | 6054 | 27.53 | 820 | 826 | 189.9 |
| D | 1 | 52 | 233688 | 1150.57 | 840 | 815 | 202.4 |
| D | 13 | 172 | 62803 | 306.27 | 840 | 815 | 202.4 |
| D | 2 | 136 | 31183 | 150.04 | 840 | 815 | 202.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

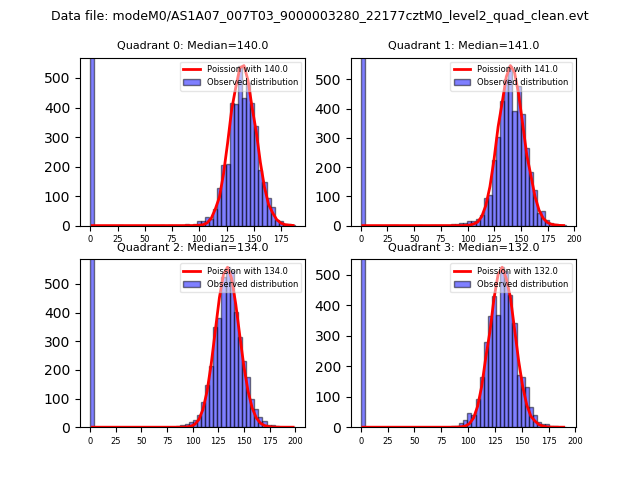

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

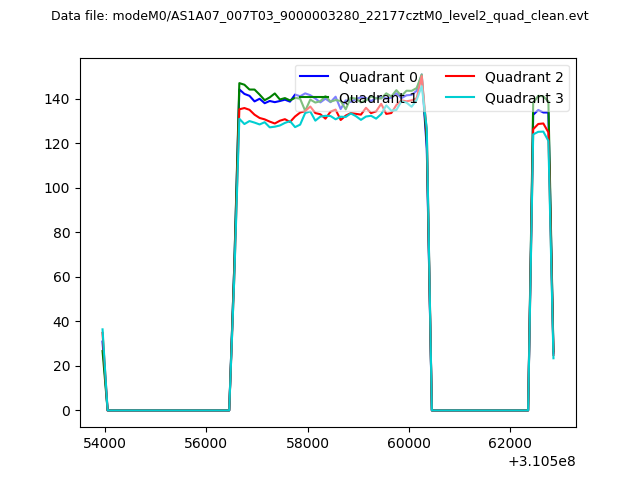

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
