| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_065T01_9000003284_22187cztM0_level2.evt | modeM0/AS1A07_065T01_9000003284_22187cztM0_level2_quad_clean.evt |
| Size (bytes) | 438,612,480 | 100,111,680 |
| Size | 418.3 MB | 95.5 MB |
| Events in quadrant A | 3,064,215 | 659,882 |
| Events in quadrant B | 3,033,906 | 679,136 |
| Events in quadrant C | 2,992,016 | 640,589 |
| Events in quadrant D | 3,768,036 | 615,673 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13200 | 1 |
| B | 0 | 13004 | 1 |
| C | 0 | 12926 | 1 |
| D | 0 | 15480 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6259 | 41 | 0.655057% |
| B | 6260 | 28 | 0.447284% |
| C | 6260 | 47 | 0.750799% |
| D | 6260 | 189 | 3.019169% |

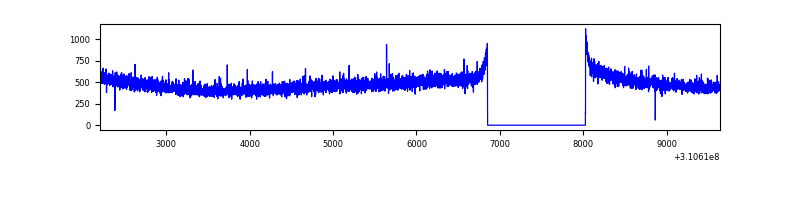

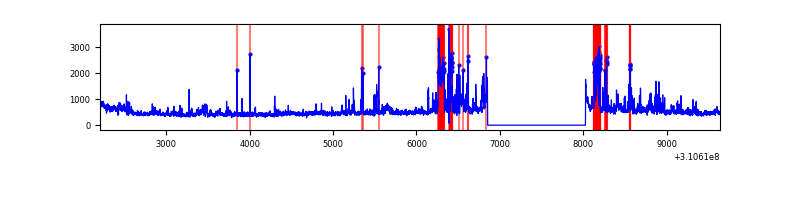

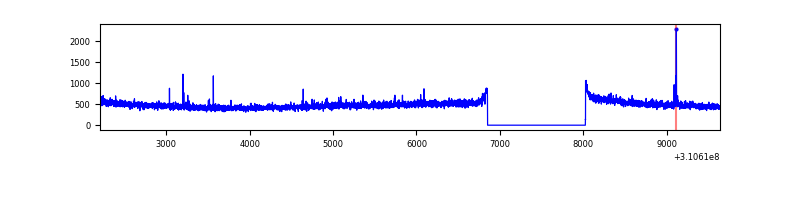

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

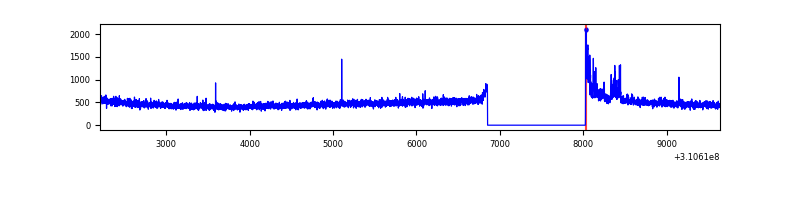

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7434 | 6260 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7435 | 6261 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7435 | 6261 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7435 | 6261 | 135 | 135 | 1.82% | 2.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 101033 | 645.26 | 769 | 754 | 155.4 |
| A | 13 | 254 | 10207 | 60.83 | 769 | 754 | 155.4 |
| A | 0 | 226 | 6630 | 37.81 | 769 | 754 | 155.4 |
| B | 12 | 111 | 17490 | 116.56 | 770 | 753 | 143.6 |
| B | 11 | 111 | 15413 | 102.09 | 770 | 753 | 143.6 |
| B | 14 | 111 | 14098 | 92.94 | 770 | 753 | 143.6 |
| C | 14 | 238 | 117019 | 679.9 | 737 | 743 | 171.0 |
| C | 13 | 61 | 5245 | 26.32 | 737 | 743 | 171.0 |
| C | 4 | 175 | 2819 | 12.14 | 737 | 743 | 171.0 |
| D | 1 | 52 | 950529 | 5395.61 | 732 | 712 | 176.0 |
| D | 2 | 136 | 25115 | 138.63 | 732 | 712 | 176.0 |
| D | 2 | 234 | 23767 | 130.97 | 732 | 712 | 176.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

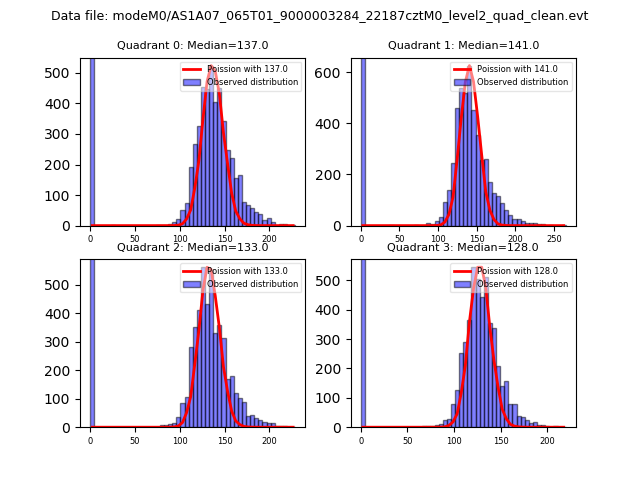

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

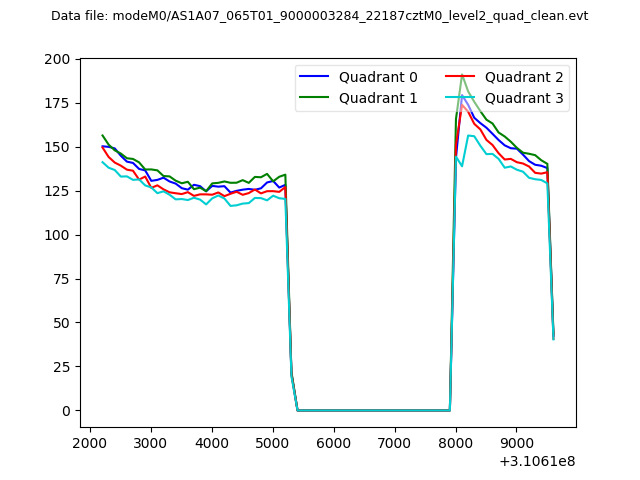

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

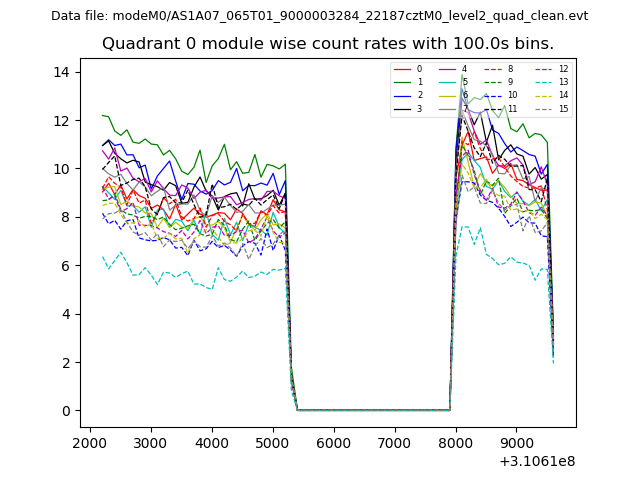

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

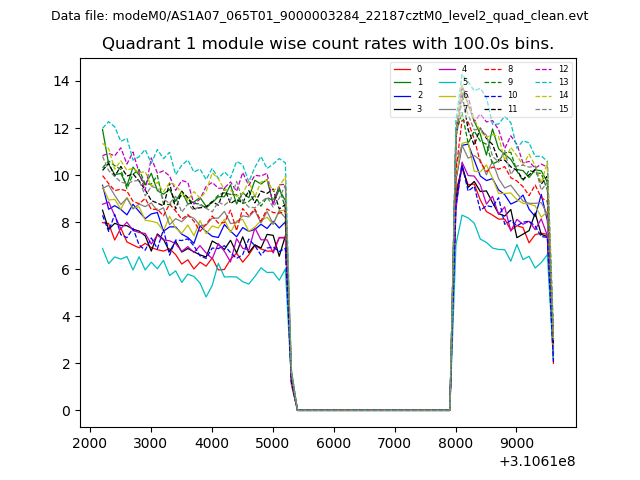

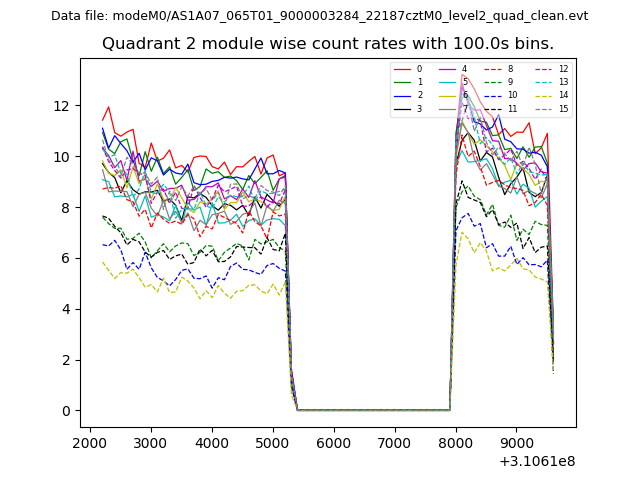

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

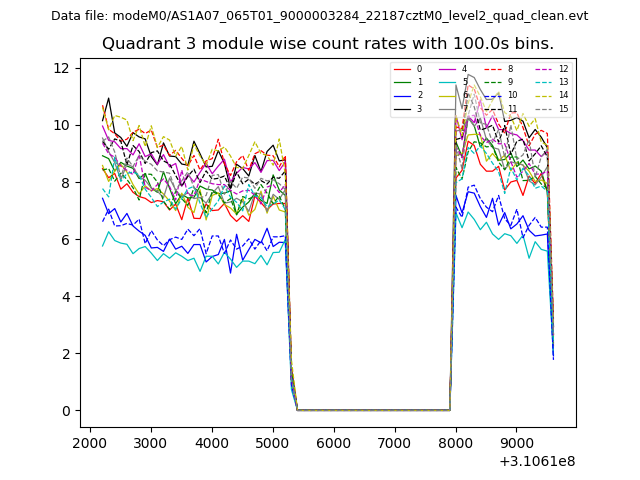

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

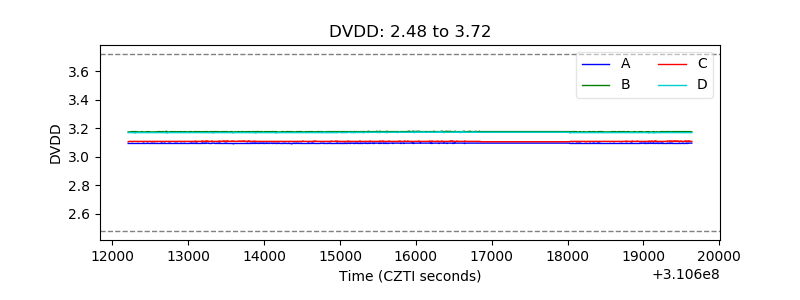

| D_VDD |  |

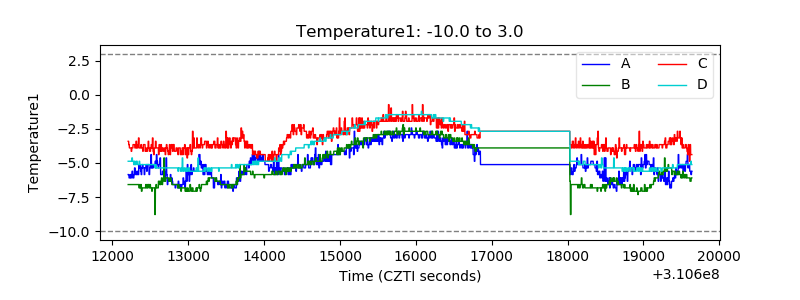

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

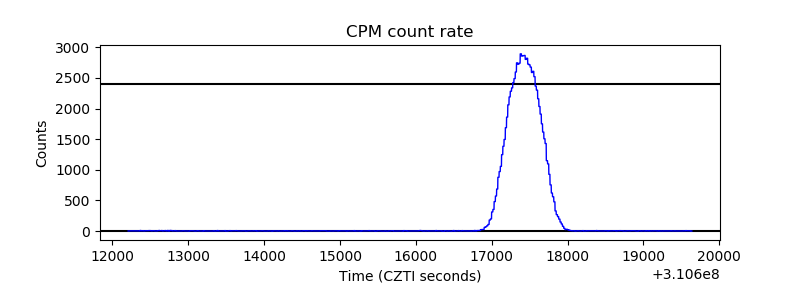

| _CPM_Rate |  |

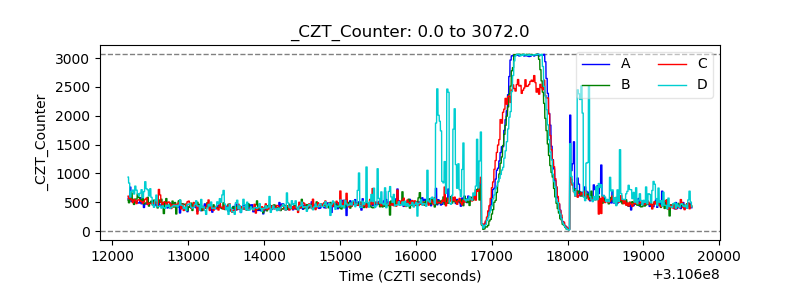

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

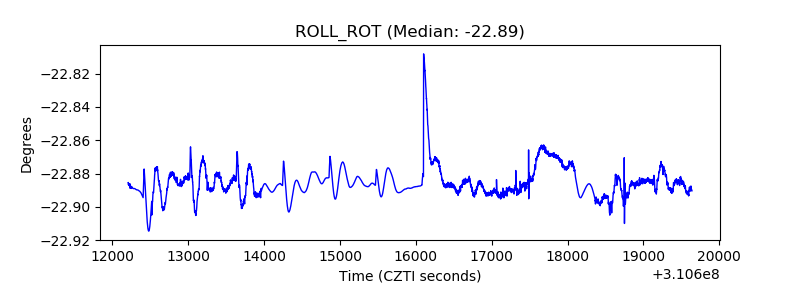

| _ROLL_ROT |  |

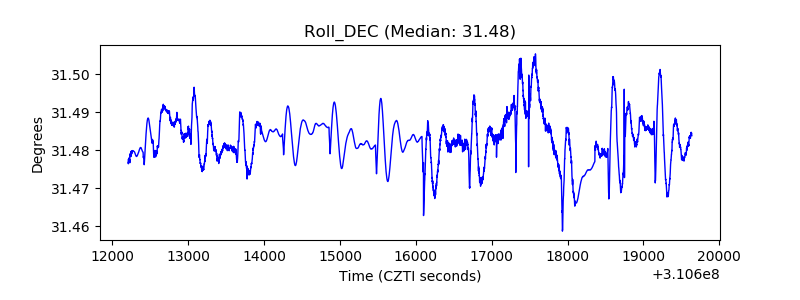

| _Roll_DEC |  |

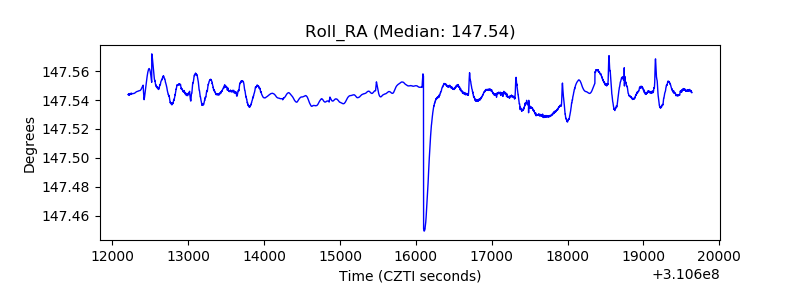

| _Roll_RA |  |

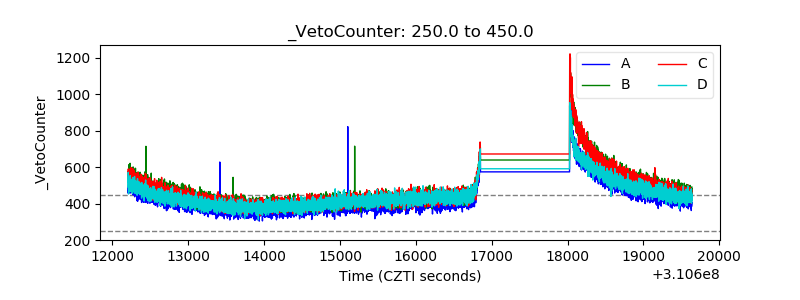

| Veto Counter |  |
