| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_065T01_9000003284_22189cztM0_level2.evt | modeM0/AS1A07_065T01_9000003284_22189cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,554,240 | 80,827,200 |
| Size | 410.6 MB | 77.1 MB |
| Events in quadrant A | 2,852,568 | 524,486 |
| Events in quadrant B | 2,854,863 | 537,189 |
| Events in quadrant C | 2,872,472 | 503,559 |
| Events in quadrant D | 4,076,270 | 488,095 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11690 | 1 |
| B | 0 | 11769 | 1 |
| C | 0 | 11872 | 1 |
| D | 0 | 15842 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5633 | 16 | 0.284040% |
| B | 5634 | 35 | 0.621228% |
| C | 5634 | 58 | 1.029464% |
| D | 5634 | 328 | 5.821796% |

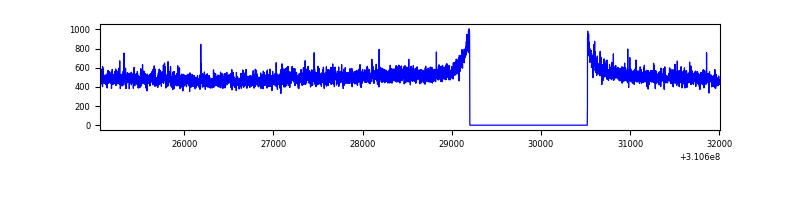

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6953 | 5634 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6954 | 5635 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6954 | 5635 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6954 | 5635 | 271 | 271 | 3.90% | 4.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 31187 | 209.34 | 731 | 719 | 145.5 |
| A | 13 | 254 | 9990 | 63.7 | 731 | 719 | 145.5 |
| A | 0 | 226 | 6310 | 38.41 | 731 | 719 | 145.5 |
| B | 12 | 111 | 16193 | 114.16 | 725 | 708 | 135.6 |
| B | 11 | 111 | 14367 | 100.7 | 725 | 708 | 135.6 |
| B | 14 | 111 | 12988 | 90.53 | 725 | 708 | 135.6 |
| C | 14 | 238 | 113094 | 698.68 | 694 | 700 | 160.9 |
| C | 13 | 250 | 51260 | 314.3 | 694 | 700 | 160.9 |
| C | 13 | 61 | 4875 | 25.95 | 694 | 700 | 160.9 |
| D | 1 | 52 | 1420580 | 8446.23 | 693 | 672 | 168.1 |
| D | 2 | 136 | 19465 | 111.79 | 693 | 672 | 168.1 |
| D | 2 | 234 | 18488 | 105.98 | 693 | 672 | 168.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

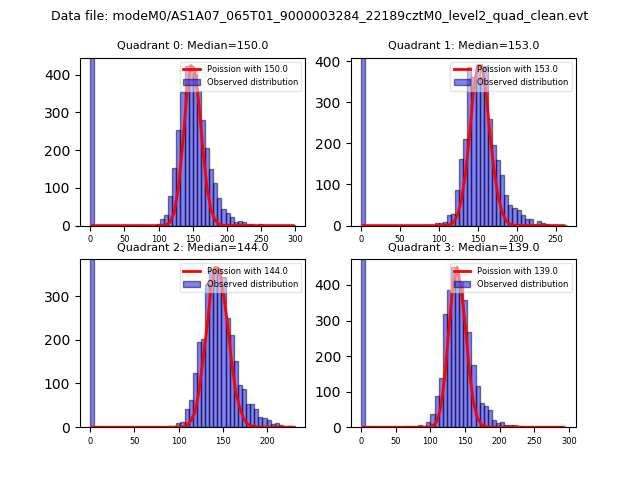

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

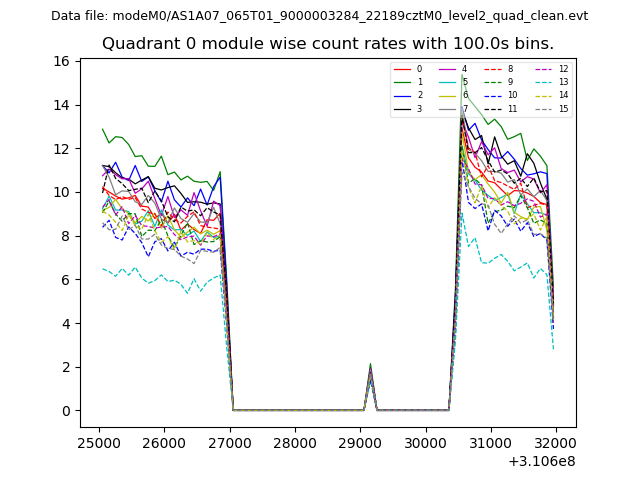

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

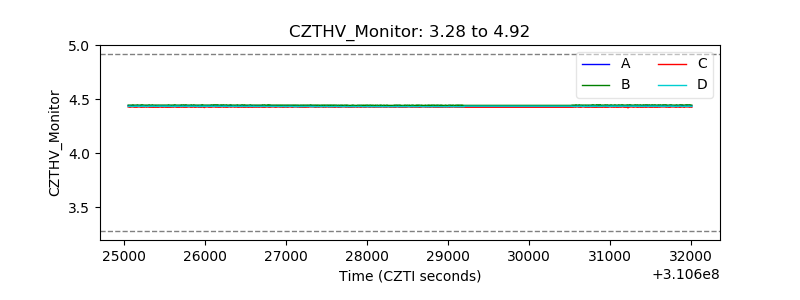

| CZT HV Monitor |  |

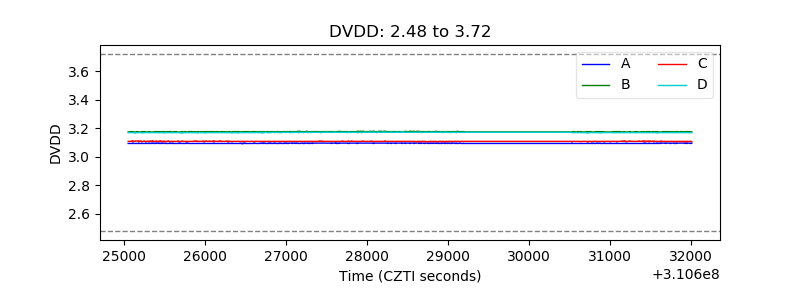

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

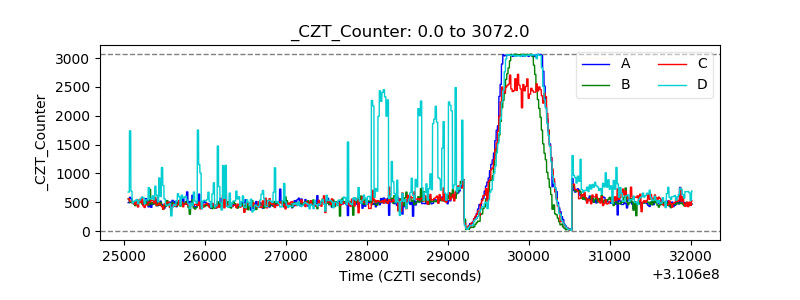

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
