| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_065T01_9000003284_22205cztM0_level2.evt | modeM0/AS1A07_065T01_9000003284_22205cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,454,400 | 94,112,640 |
| Size | 447.7 MB | 89.8 MB |
| Events in quadrant A | 3,168,251 | 616,476 |
| Events in quadrant B | 3,923,501 | 618,955 |
| Events in quadrant C | 3,585,334 | 589,711 |
| Events in quadrant D | 3,110,328 | 582,950 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13095 | 1 |
| B | 0 | 15389 | 1 |
| C | 0 | 14400 | 1 |
| D | 0 | 13180 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6333 | 67 | 1.057950% |
| B | 6334 | 193 | 3.047048% |
| C | 6334 | 161 | 2.541838% |
| D | 6334 | 37 | 0.584149% |

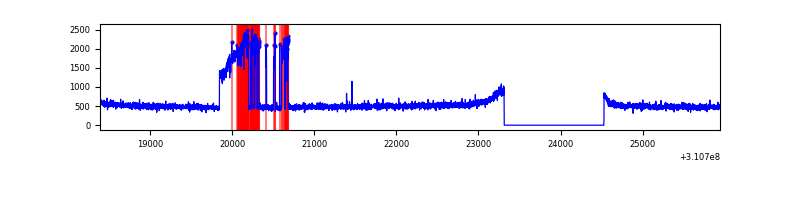

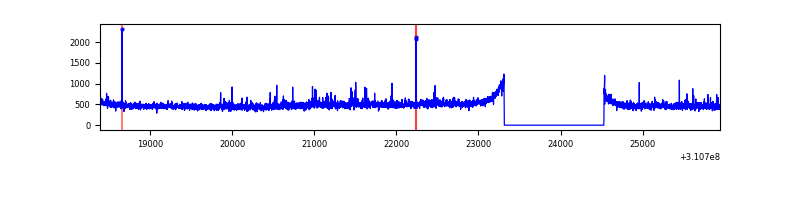

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7548 | 6334 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7549 | 6335 | 183 | 183 | 2.42% | 2.89% |  |
| C | 7549 | 6335 | 47 | 47 | 0.62% | 0.74% |  |
| D | 7549 | 6335 | 3 | 3 | 0.04% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10104 | 56.59 | 822 | 807 | 164.3 |
| A | 0 | 226 | 7143 | 38.57 | 822 | 807 | 164.3 |
| A | 3 | 137 | 6754 | 36.2 | 822 | 807 | 164.3 |
| B | 15 | 33 | 750851 | 4895.25 | 810 | 792 | 153.2 |
| B | 12 | 111 | 18406 | 114.96 | 810 | 792 | 153.2 |
| B | 11 | 111 | 16367 | 101.65 | 810 | 792 | 153.2 |
| C | 10 | 22 | 419581 | 2306.97 | 779 | 785 | 181.5 |
| C | 14 | 238 | 126715 | 693.7 | 779 | 785 | 181.5 |
| C | 13 | 61 | 5413 | 25.49 | 779 | 785 | 181.5 |
| D | 1 | 52 | 43192 | 220.85 | 796 | 775 | 192.1 |
| D | 2 | 234 | 27692 | 140.14 | 796 | 775 | 192.1 |
| D | 2 | 136 | 17389 | 86.5 | 796 | 775 | 192.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

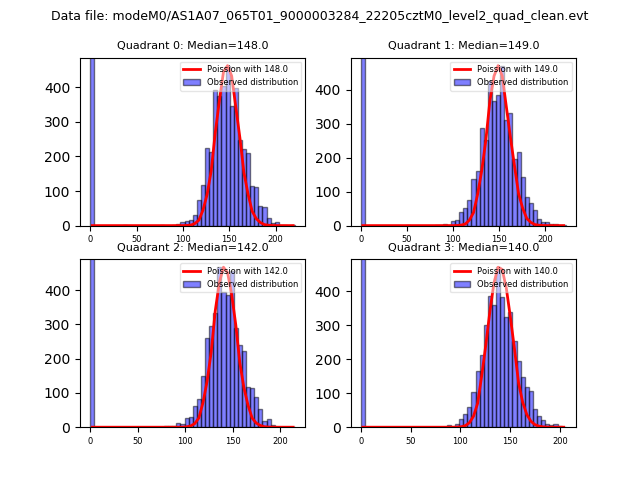

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

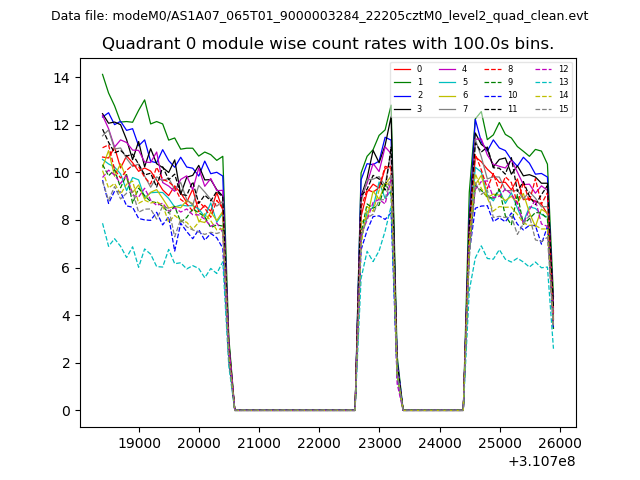

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

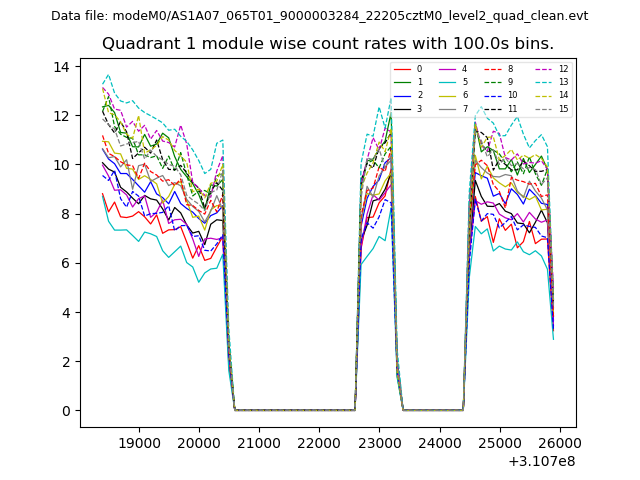

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

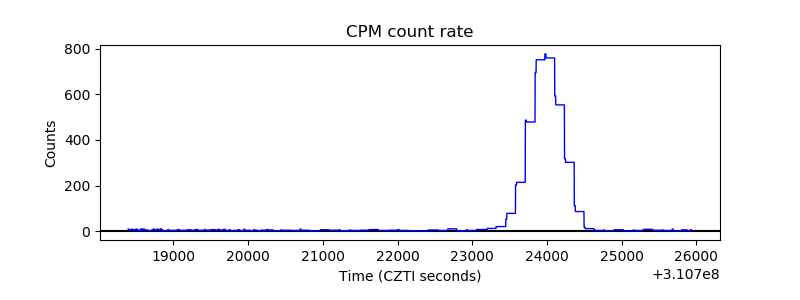

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

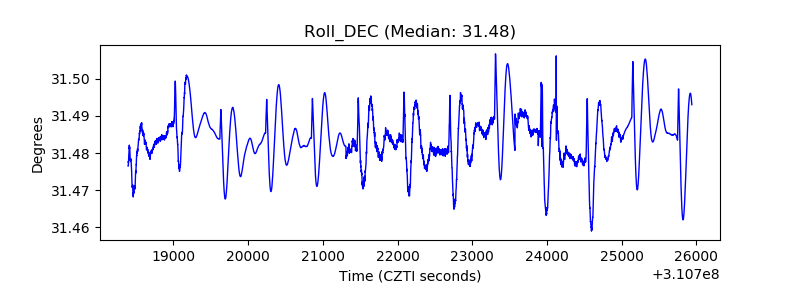

| _Roll_DEC |  |
| _Roll_RA |  |

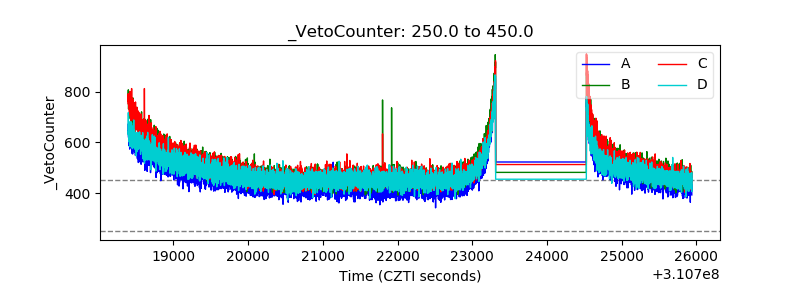

| Veto Counter |  |
