| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003286_22208cztM0_level2.evt | modeM0/AS1A07_054T01_9000003286_22208cztM0_level2_quad_clean.evt |
| Size (bytes) | 198,336,960 | 56,727,360 |
| Size | 189.1 MB | 54.1 MB |
| Events in quadrant A | 1,454,858 | 384,186 |
| Events in quadrant B | 1,491,191 | 388,611 |
| Events in quadrant C | 1,432,309 | 367,985 |
| Events in quadrant D | 1,423,284 | 364,329 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6228 | 1 |
| B | 0 | 6272 | 1 |
| C | 0 | 6186 | 1 |
| D | 0 | 6267 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 64 | 0 |
| B | 0 | 64 | 0 |
| C | 0 | 64 | 0 |
| D | 0 | 64 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2981 | 109 | 3.656491% |
| B | 2981 | 114 | 3.824220% |
| C | 2981 | 115 | 3.857766% |
| D | 2981 | 77 | 2.583026% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3231 | 2983 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3231 | 2983 | 1 | 1 | 0.03% | 0.03% |  |
| C | 3231 | 2983 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3231 | 2983 | 1 | 1 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 5157 | 62.46 | 376 | 367 | 76.7 |
| A | 3 | 137 | 3374 | 39.21 | 376 | 367 | 76.7 |
| A | 0 | 226 | 3175 | 36.62 | 376 | 367 | 76.7 |
| B | 12 | 111 | 8900 | 116.69 | 371 | 362 | 73.2 |
| B | 0 | 245 | 7856 | 102.42 | 371 | 362 | 73.2 |
| B | 11 | 111 | 7844 | 102.26 | 371 | 362 | 73.2 |
| C | 14 | 238 | 56520 | 675.47 | 352 | 352 | 83.2 |
| C | 13 | 61 | 2611 | 27.17 | 352 | 352 | 83.2 |
| C | 3 | 202 | 816 | 5.58 | 352 | 352 | 83.2 |
| D | 1 | 52 | 15848 | 172.93 | 363 | 350 | 89.6 |
| D | 2 | 136 | 13043 | 141.64 | 363 | 350 | 89.6 |
| D | 2 | 234 | 12057 | 130.63 | 363 | 350 | 89.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

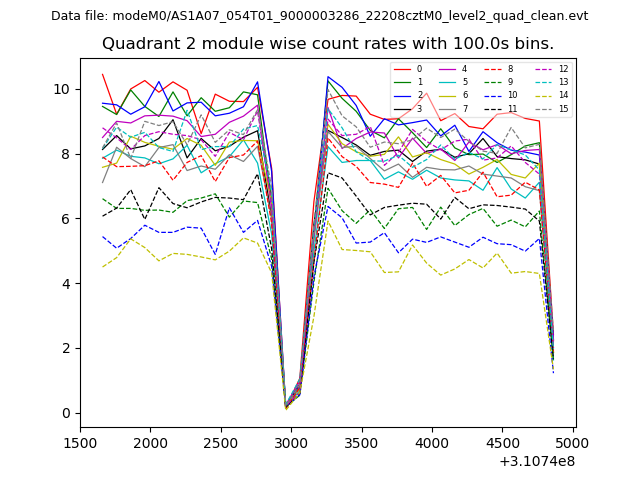

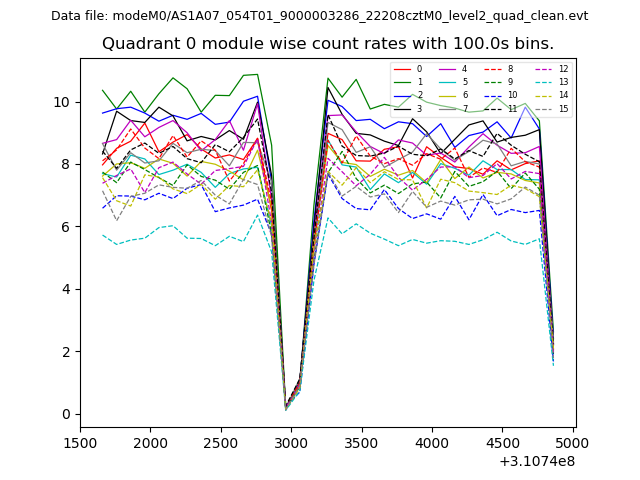

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

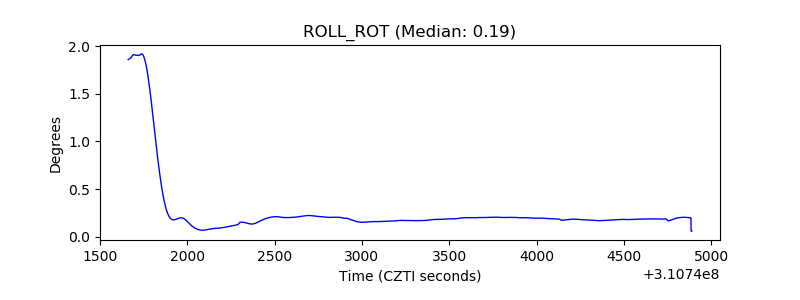

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
