| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003286_22210cztM0_level2.evt | modeM0/AS1A07_054T01_9000003286_22210cztM0_level2_quad_clean.evt |
| Size (bytes) | 394,539,840 | 114,396,480 |
| Size | 376.3 MB | 109.1 MB |
| Events in quadrant A | 2,800,686 | 771,843 |
| Events in quadrant B | 2,943,762 | 778,047 |
| Events in quadrant C | 2,817,289 | 747,050 |
| Events in quadrant D | 2,966,021 | 736,314 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12516 | 1 |
| B | 0 | 12760 | 2 |
| C | 0 | 12500 | 1 |
| D | 0 | 13118 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6182 | 24 | 0.388224% |
| B | 6181 | 42 | 0.679502% |
| C | 6182 | 68 | 1.099968% |
| D | 6182 | 54 | 0.873504% |

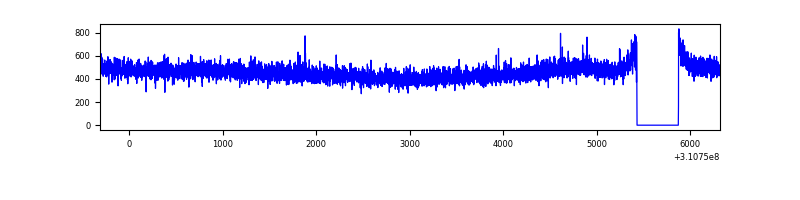

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6627 | 6183 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6626 | 6182 | 2 | 2 | 0.03% | 0.03% |  |
| C | 6627 | 6183 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6627 | 6183 | 21 | 21 | 0.32% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10945 | 70.09 | 725 | 708 | 146.0 |
| A | 3 | 137 | 6288 | 38.21 | 725 | 708 | 146.0 |
| A | 0 | 226 | 6239 | 37.87 | 725 | 708 | 146.0 |
| B | 0 | 245 | 44315 | 316.73 | 722 | 705 | 137.7 |
| B | 0 | 219 | 25154 | 177.57 | 722 | 705 | 137.7 |
| B | 12 | 111 | 16599 | 115.43 | 722 | 705 | 137.7 |
| C | 14 | 238 | 109656 | 671.52 | 694 | 695 | 162.3 |
| C | 13 | 61 | 4867 | 25.71 | 694 | 695 | 162.3 |
| C | 10 | 22 | 2625 | 11.89 | 694 | 695 | 162.3 |
| D | 1 | 52 | 142501 | 829.06 | 706 | 685 | 171.1 |
| D | 13 | 172 | 41257 | 237.18 | 706 | 685 | 171.1 |
| D | 7 | 55 | 31533 | 180.34 | 706 | 685 | 171.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

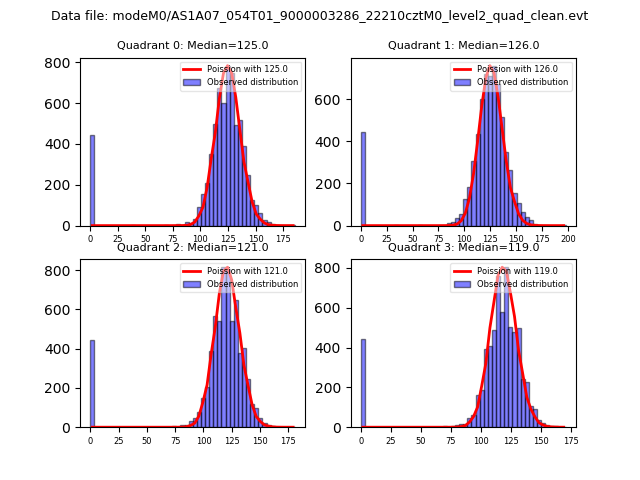

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

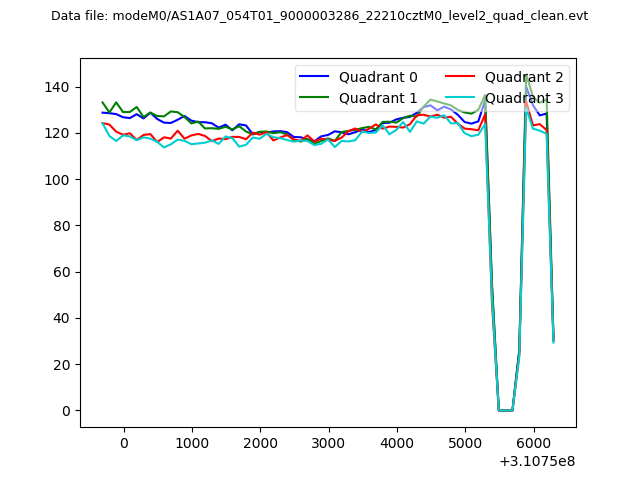

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

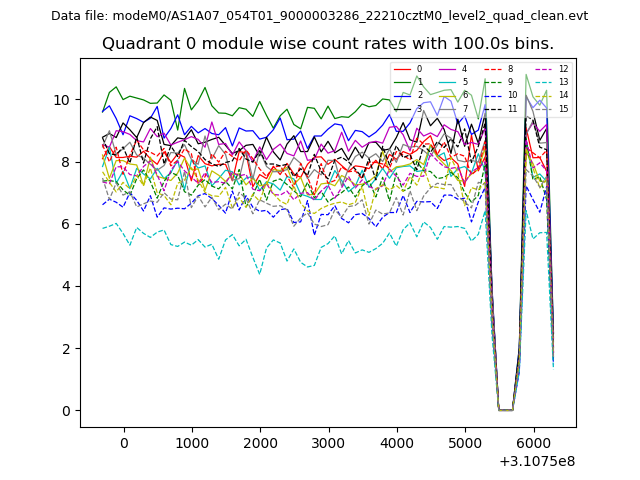

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

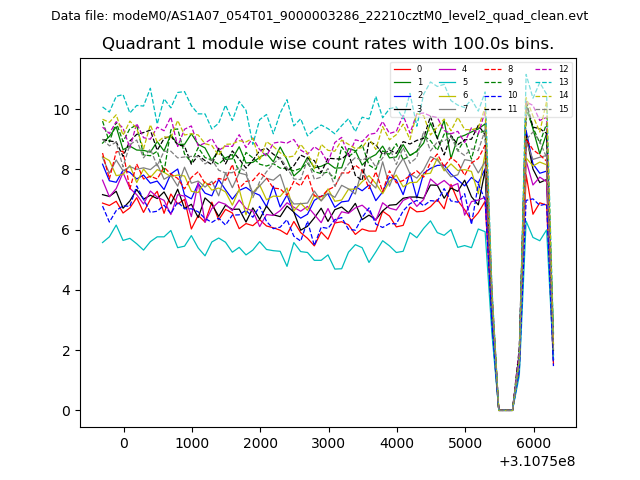

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

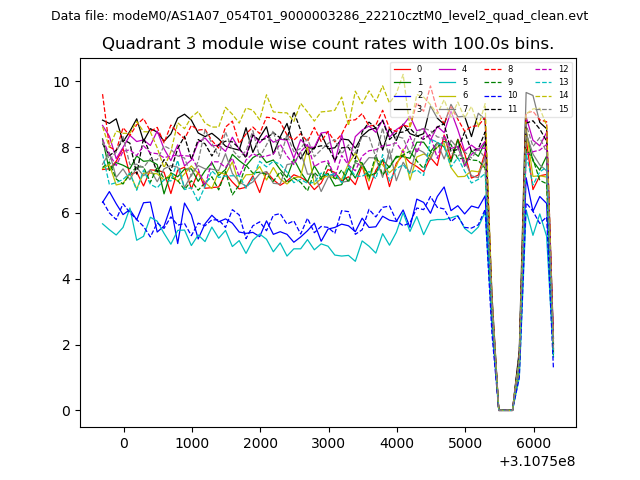

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

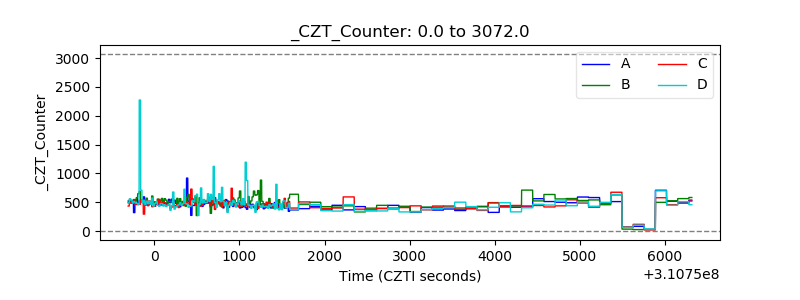

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

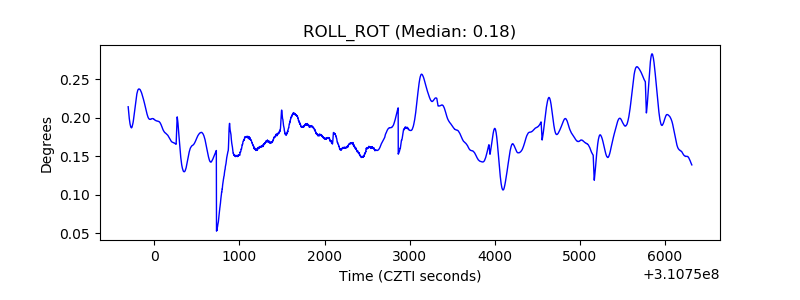

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
