| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003286_22213cztM0_level2.evt | modeM0/AS1A07_054T01_9000003286_22213cztM0_level2_quad_clean.evt |
| Size (bytes) | 438,528,960 | 128,494,080 |
| Size | 418.2 MB | 122.5 MB |
| Events in quadrant A | 3,086,008 | 865,578 |
| Events in quadrant B | 3,178,605 | 874,603 |
| Events in quadrant C | 3,165,036 | 848,169 |
| Events in quadrant D | 3,390,836 | 831,874 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13797 | 2 |
| B | 0 | 13996 | 2 |
| C | 0 | 13924 | 2 |
| D | 0 | 14867 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6773 | 14 | 0.206703% |
| B | 6773 | 23 | 0.339584% |
| C | 6773 | 71 | 1.048280% |
| D | 6772 | 62 | 0.915535% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7718 | 6774 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7718 | 6774 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7718 | 6774 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7717 | 6773 | 22 | 22 | 0.29% | 0.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10582 | 61.09 | 800 | 783 | 160.4 |
| A | 3 | 137 | 7028 | 38.93 | 800 | 783 | 160.4 |
| A | 0 | 226 | 6960 | 38.51 | 800 | 783 | 160.4 |
| B | 12 | 111 | 18614 | 115.36 | 803 | 779 | 154.6 |
| B | 11 | 111 | 16521 | 101.82 | 803 | 779 | 154.6 |
| B | 14 | 111 | 14575 | 89.23 | 803 | 779 | 154.6 |
| C | 14 | 238 | 123466 | 674.65 | 778 | 783 | 181.8 |
| C | 10 | 91 | 5711 | 27.1 | 778 | 783 | 181.8 |
| C | 13 | 61 | 5411 | 25.45 | 778 | 783 | 181.8 |
| D | 1 | 52 | 205203 | 1079.36 | 782 | 760 | 189.4 |
| D | 2 | 136 | 98310 | 515.02 | 782 | 760 | 189.4 |
| D | 13 | 13 | 56617 | 294.9 | 782 | 760 | 189.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

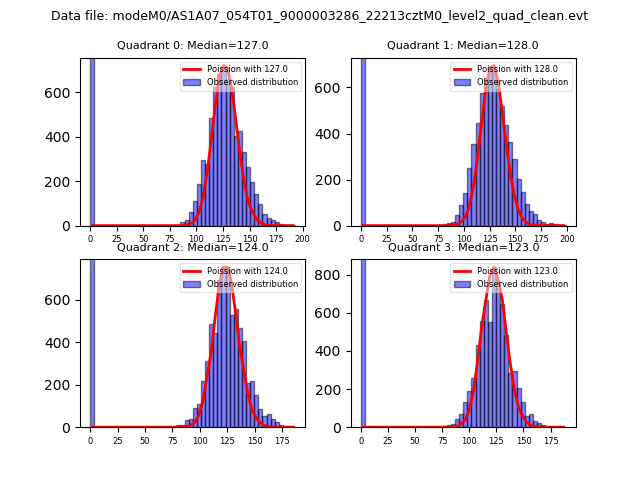

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

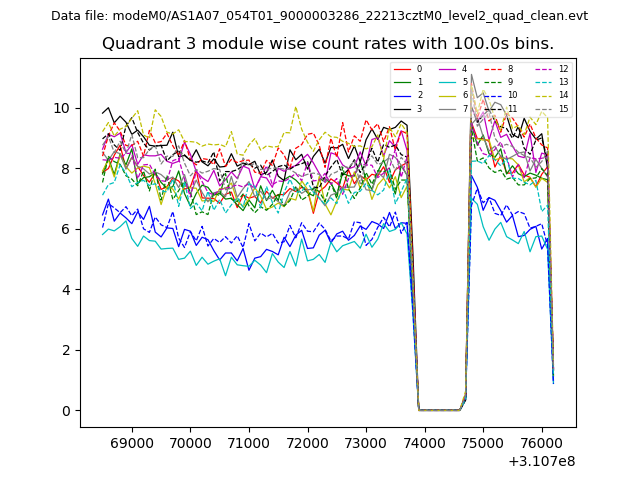

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

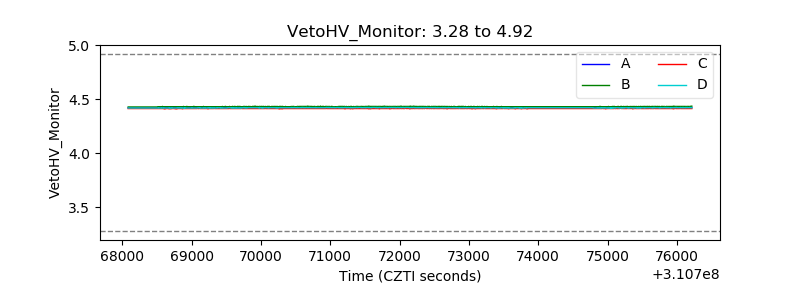

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

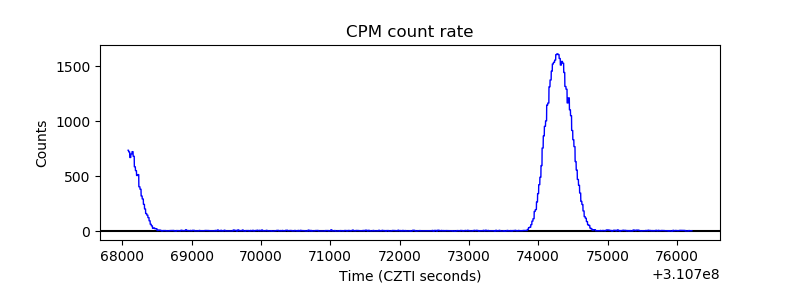

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

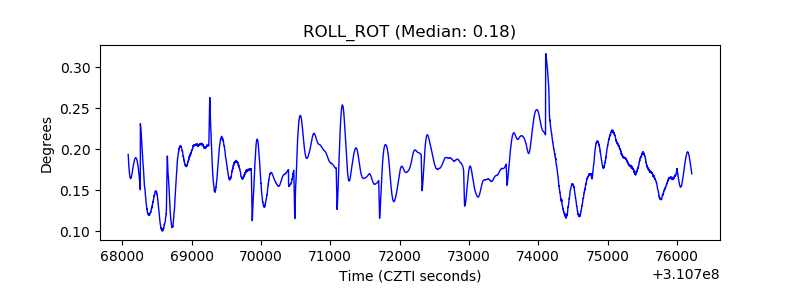

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

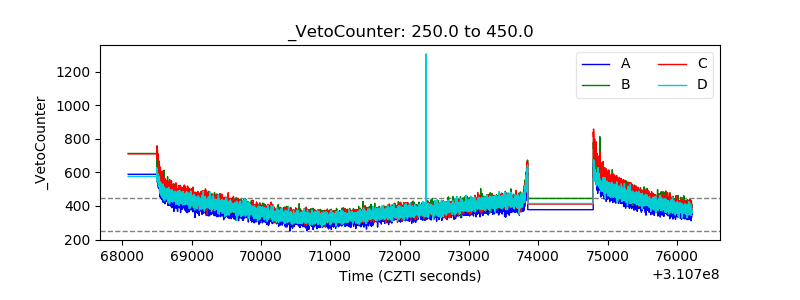

| Veto Counter |  |
