| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003286_22214cztM0_level2.evt | modeM0/AS1A07_054T01_9000003286_22214cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,594,560 | 130,518,720 |
| Size | 410.6 MB | 124.5 MB |
| Events in quadrant A | 3,063,758 | 880,802 |
| Events in quadrant B | 3,161,429 | 897,480 |
| Events in quadrant C | 3,136,337 | 866,806 |
| Events in quadrant D | 3,224,433 | 842,251 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13660 | 2 |
| B | 0 | 13895 | 2 |
| C | 0 | 13840 | 2 |
| D | 0 | 14373 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6683 | 19 | 0.284303% |
| B | 6683 | 29 | 0.433937% |
| C | 6683 | 56 | 0.837947% |
| D | 6683 | 28 | 0.418974% |

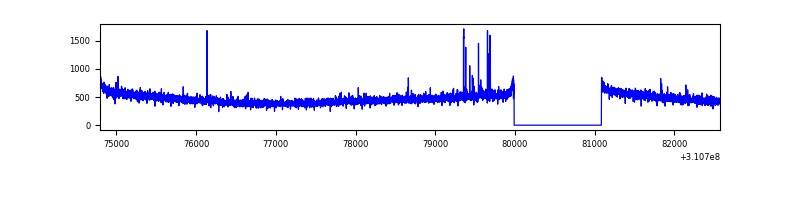

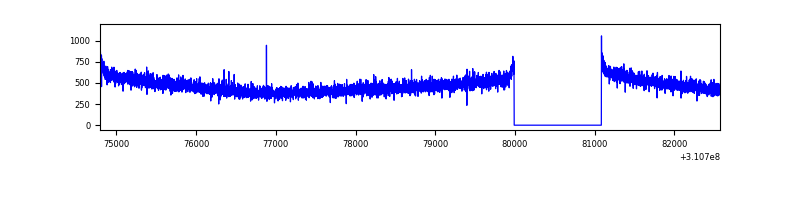

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7778 | 6683 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7778 | 6683 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7778 | 6683 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7778 | 6683 | 12 | 12 | 0.15% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10942 | 64.02 | 794 | 778 | 158.8 |
| A | 0 | 226 | 6805 | 37.96 | 794 | 778 | 158.8 |
| A | 3 | 137 | 6735 | 37.52 | 794 | 778 | 158.8 |
| B | 12 | 111 | 18202 | 114.98 | 800 | 779 | 151.5 |
| B | 11 | 111 | 16132 | 101.32 | 800 | 779 | 151.5 |
| B | 14 | 111 | 14506 | 90.59 | 800 | 779 | 151.5 |
| C | 14 | 238 | 122389 | 674.44 | 772 | 779 | 180.3 |
| C | 13 | 61 | 5338 | 25.28 | 772 | 779 | 180.3 |
| C | 0 | 10 | 3757 | 16.52 | 772 | 779 | 180.3 |
| D | 1 | 52 | 177733 | 942.79 | 774 | 750 | 187.7 |
| D | 13 | 13 | 56313 | 295.99 | 774 | 750 | 187.7 |
| D | 13 | 172 | 32450 | 168.87 | 774 | 750 | 187.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

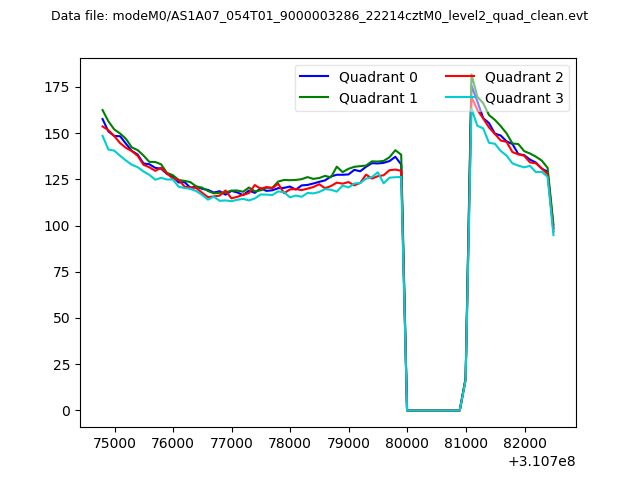

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

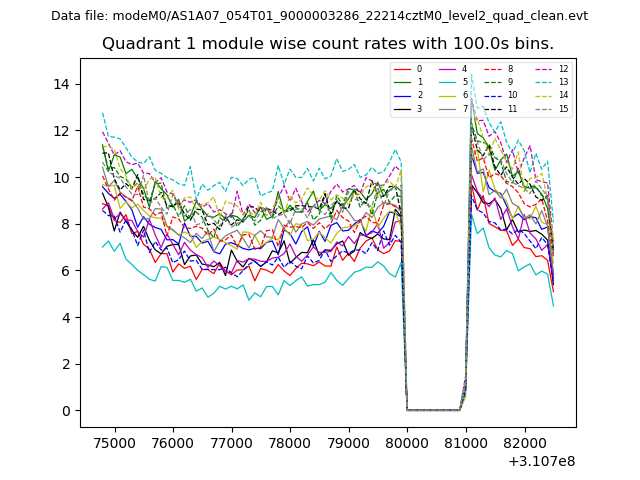

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

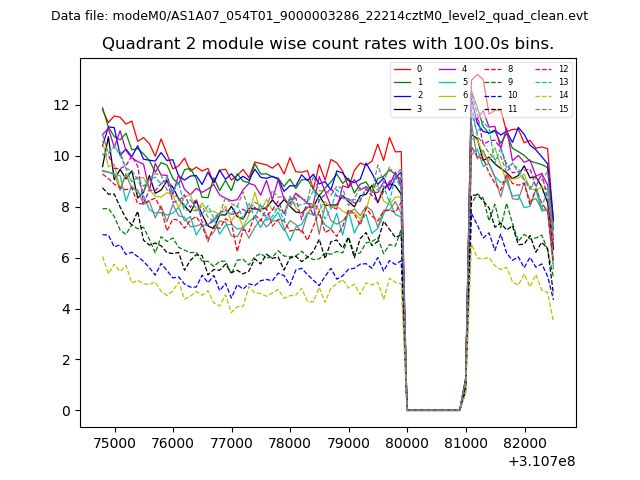

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

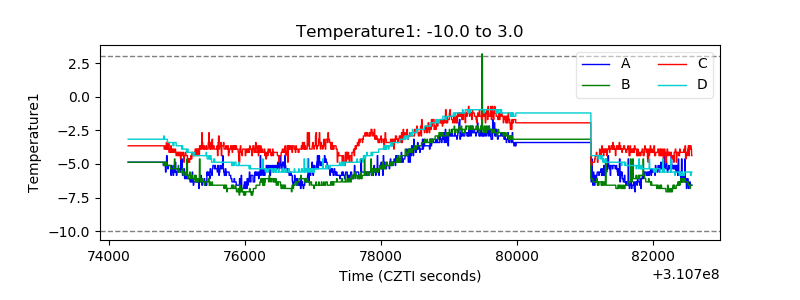

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

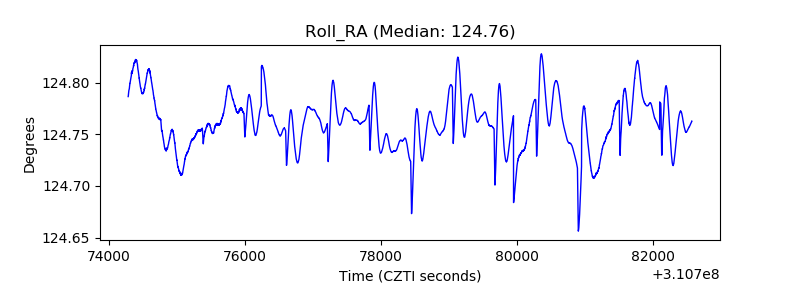

| _Roll_DEC |  |
| _Roll_RA |  |

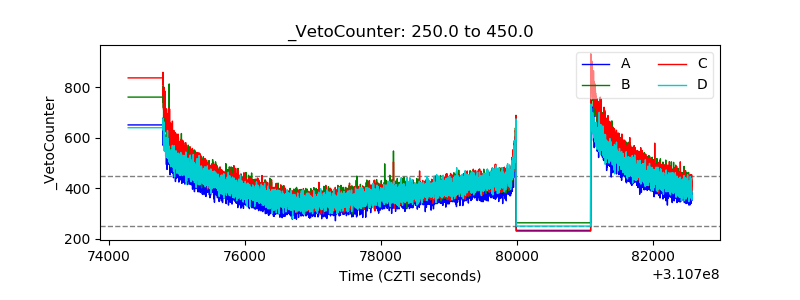

| Veto Counter |  |
