| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003286_22220cztM0_level2.evt | modeM0/AS1A07_054T01_9000003286_22220cztM0_level2_quad_clean.evt |
| Size (bytes) | 416,237,760 | 128,520,000 |
| Size | 397.0 MB | 122.6 MB |
| Events in quadrant A | 3,167,305 | 888,663 |
| Events in quadrant B | 3,054,893 | 890,181 |
| Events in quadrant C | 2,993,778 | 838,689 |
| Events in quadrant D | 2,959,623 | 834,107 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13340 | 1 |
| B | 0 | 12963 | 1 |
| C | 0 | 12908 | 1 |
| D | 0 | 13102 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6324 | 68 | 1.075269% |
| B | 6324 | 80 | 1.265022% |
| C | 6324 | 90 | 1.423150% |
| D | 6324 | 44 | 0.695762% |

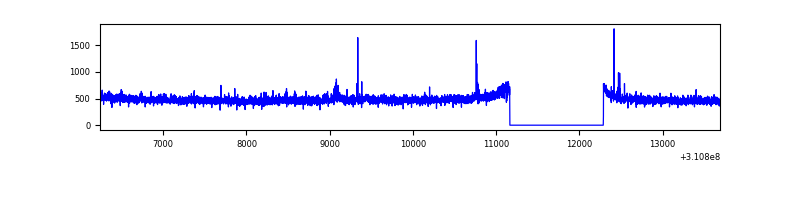

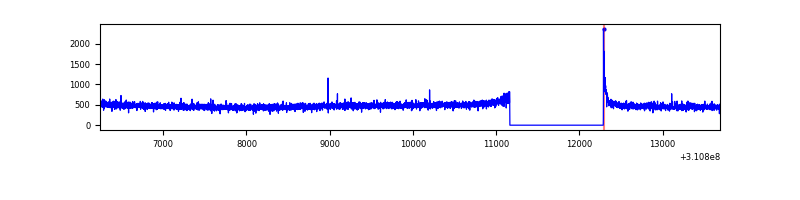

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7449 | 6325 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7449 | 6325 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7449 | 6325 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7449 | 6325 | 6 | 6 | 0.08% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 150333 | 964.42 | 783 | 766 | 155.1 |
| A | 13 | 254 | 10201 | 60.84 | 783 | 766 | 155.1 |
| A | 0 | 226 | 6798 | 38.89 | 783 | 766 | 155.1 |
| B | 12 | 111 | 17143 | 113.75 | 770 | 751 | 144.1 |
| B | 11 | 111 | 15183 | 100.15 | 770 | 751 | 144.1 |
| B | 0 | 190 | 14293 | 93.97 | 770 | 751 | 144.1 |
| C | 14 | 238 | 120487 | 714.17 | 731 | 736 | 167.7 |
| C | 0 | 10 | 20766 | 119.45 | 731 | 736 | 167.7 |
| C | 13 | 61 | 4976 | 25.29 | 731 | 736 | 167.7 |
| D | 13 | 172 | 55870 | 306.47 | 751 | 728 | 179.9 |
| D | 1 | 52 | 38484 | 209.84 | 751 | 728 | 179.9 |
| D | 2 | 234 | 24487 | 132.05 | 751 | 728 | 179.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

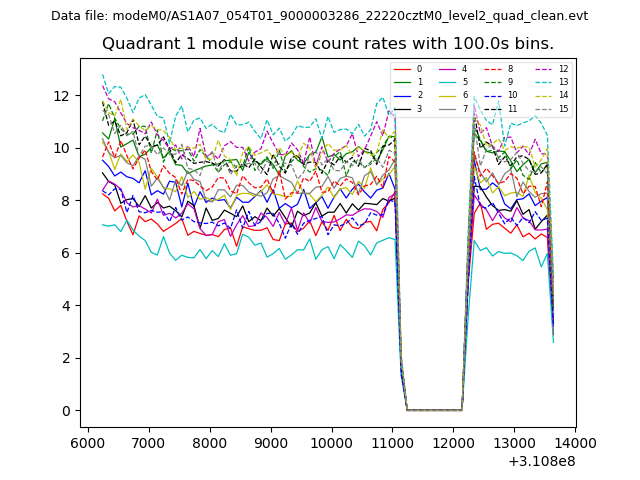

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

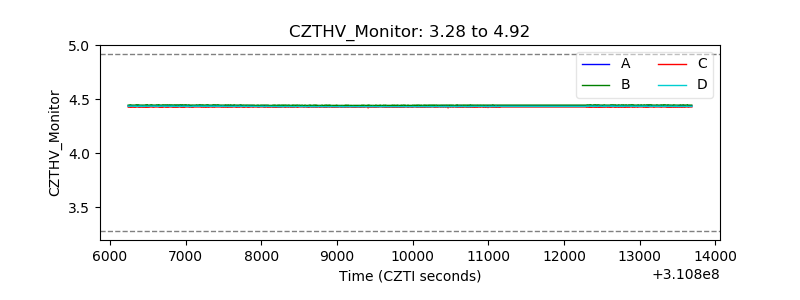

| CZT HV Monitor |  |
| D_VDD |  |

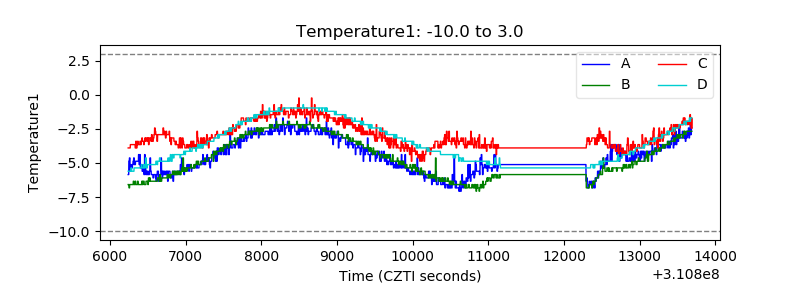

| Temperature 1 |  |

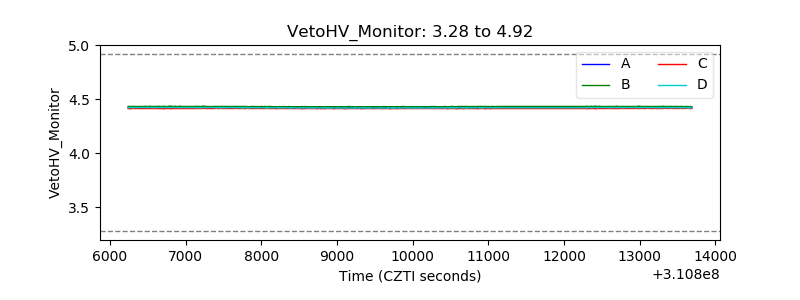

| Veto HV Monitor |  |

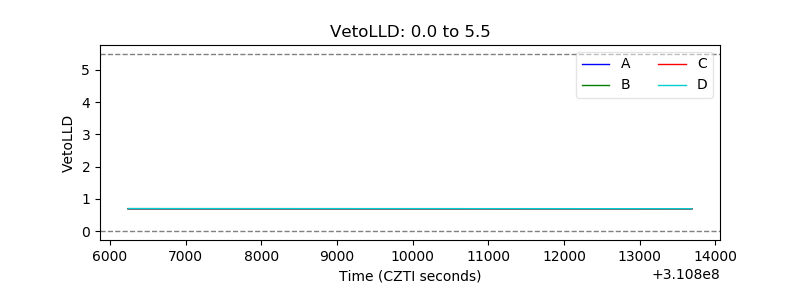

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

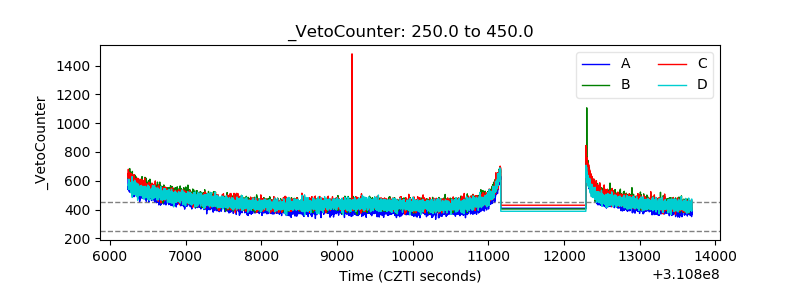

| Veto Counter |  |
