| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003286_22221cztM0_level2.evt | modeM0/AS1A07_054T01_9000003286_22221cztM0_level2_quad_clean.evt |
| Size (bytes) | 423,783,360 | 129,113,280 |
| Size | 404.2 MB | 123.1 MB |
| Events in quadrant A | 3,088,380 | 883,014 |
| Events in quadrant B | 3,130,595 | 887,467 |
| Events in quadrant C | 3,069,845 | 843,181 |
| Events in quadrant D | 3,091,900 | 832,457 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13530 | 1 |
| B | 0 | 13573 | 1 |
| C | 0 | 13492 | 1 |
| D | 0 | 13867 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6662 | 65 | 0.975683% |
| B | 6663 | 56 | 0.840462% |
| C | 6663 | 76 | 1.140627% |
| D | 6663 | 58 | 0.870479% |

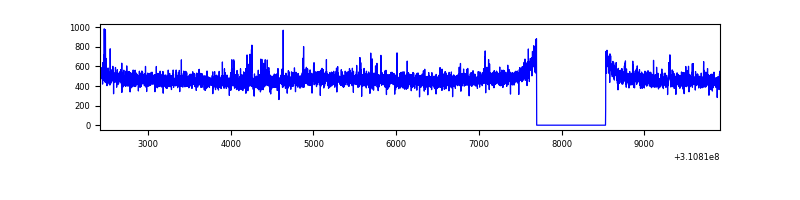

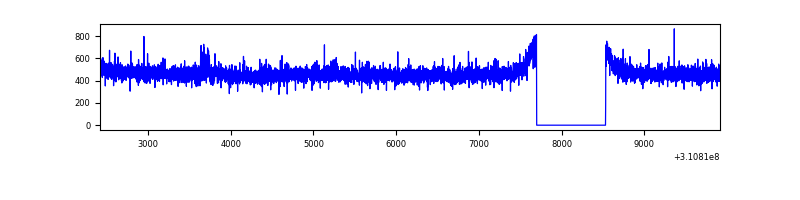

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7497 | 6663 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7498 | 6664 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7498 | 6664 | 0 | 0 | 0.00% | 0.00% |  |

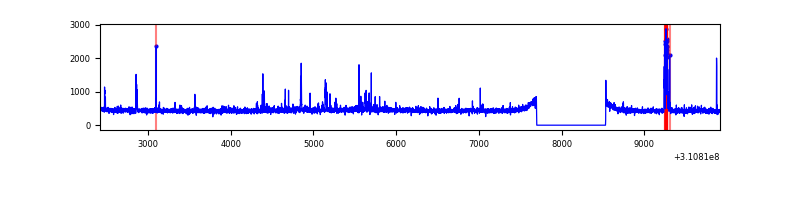

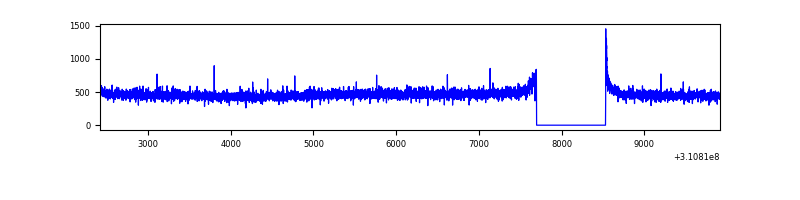

| D | 7498 | 6664 | 18 | 18 | 0.24% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 11161 | 65.58 | 798 | 782 | 158.3 |
| A | 13 | 254 | 9766 | 56.77 | 798 | 782 | 158.3 |
| A | 0 | 226 | 7018 | 39.4 | 798 | 782 | 158.3 |
| B | 12 | 111 | 18080 | 117.55 | 787 | 769 | 147.3 |
| B | 11 | 111 | 16008 | 103.48 | 787 | 769 | 147.3 |
| B | 14 | 111 | 13832 | 88.71 | 787 | 769 | 147.3 |
| C | 14 | 238 | 122242 | 696.95 | 753 | 759 | 174.3 |
| C | 0 | 10 | 11471 | 61.45 | 753 | 759 | 174.3 |
| C | 13 | 61 | 5090 | 24.85 | 753 | 759 | 174.3 |
| D | 2 | 136 | 71761 | 383.07 | 768 | 745 | 185.4 |
| D | 1 | 52 | 38976 | 206.22 | 768 | 745 | 185.4 |
| D | 2 | 234 | 28254 | 148.39 | 768 | 745 | 185.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

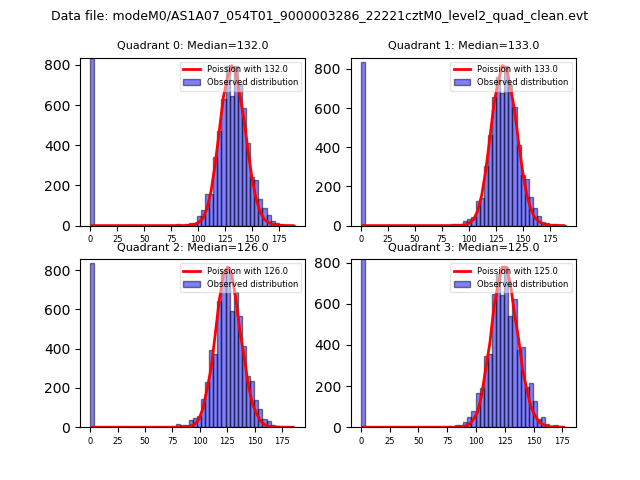

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

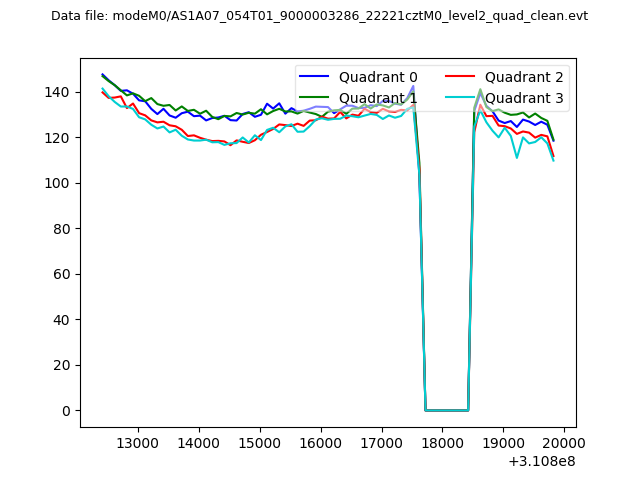

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

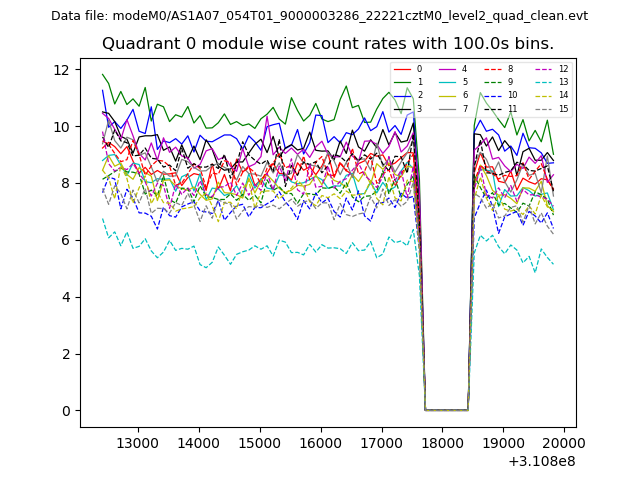

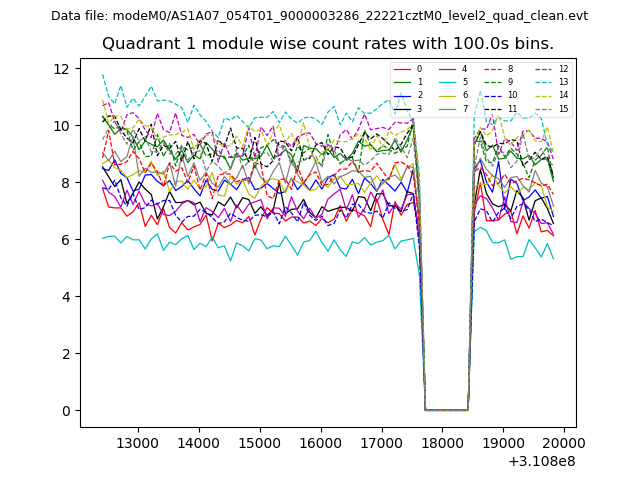

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

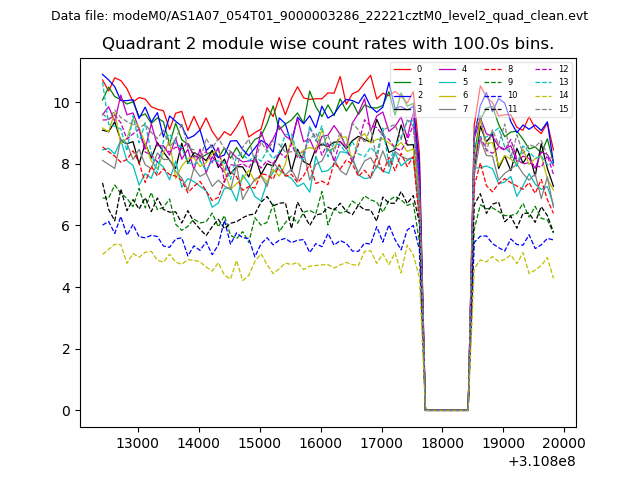

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

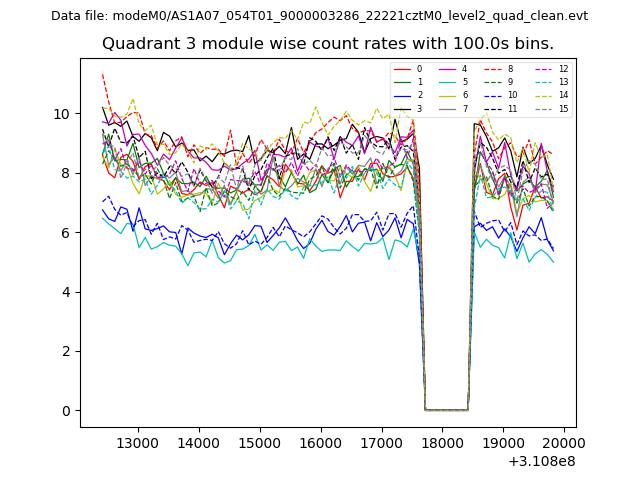

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

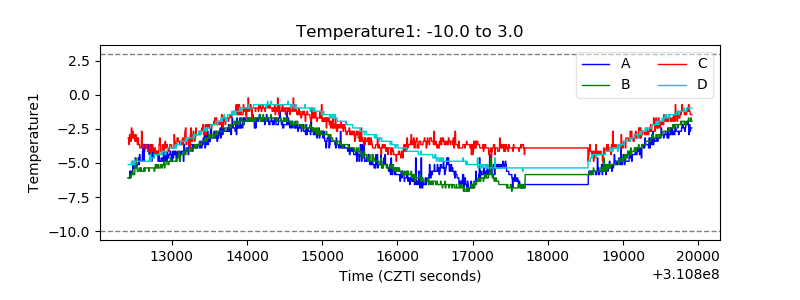

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

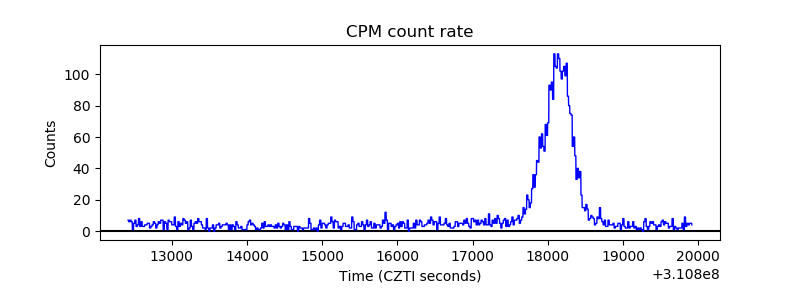

| _CPM_Rate |  |

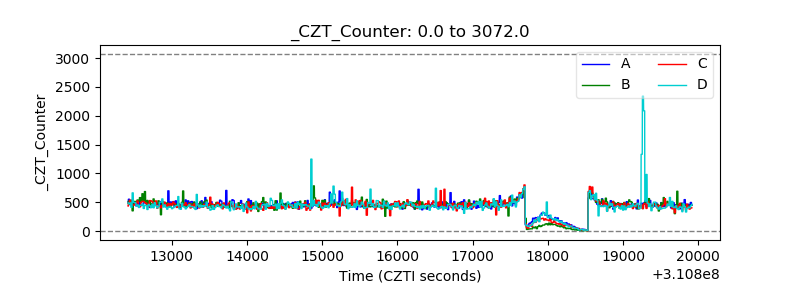

| CZT Counter |  |

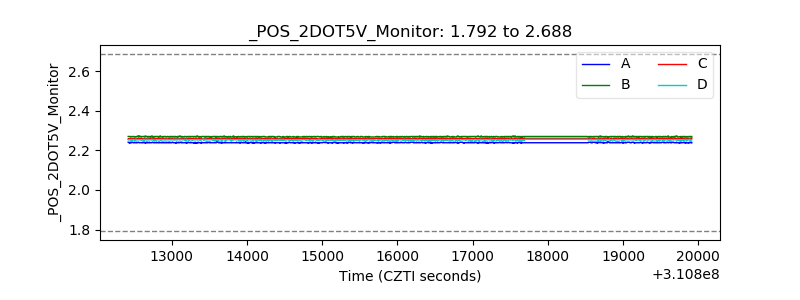

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

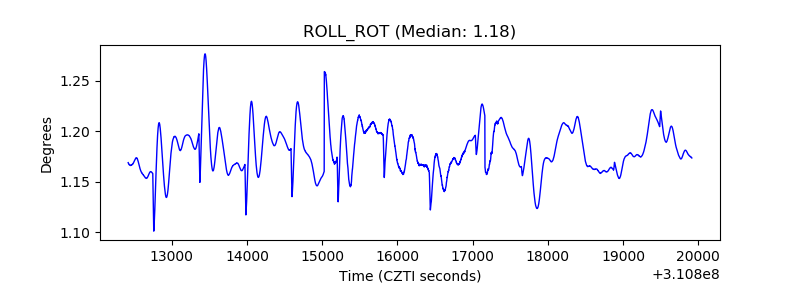

| _ROLL_ROT |  |
| _Roll_DEC |  |

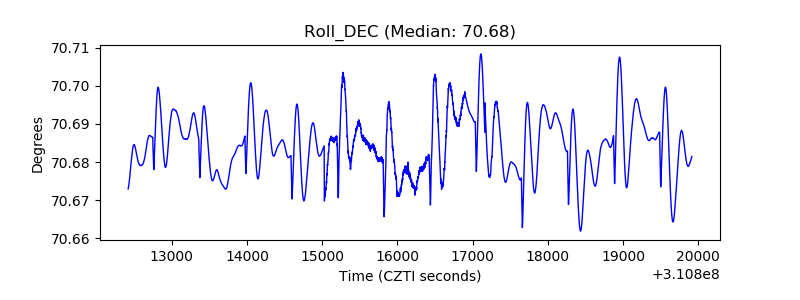

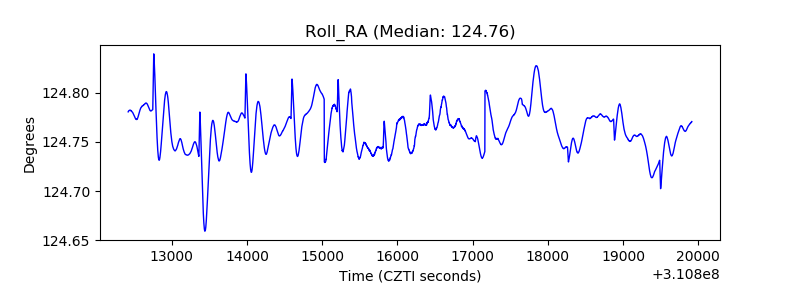

| _Roll_RA |  |

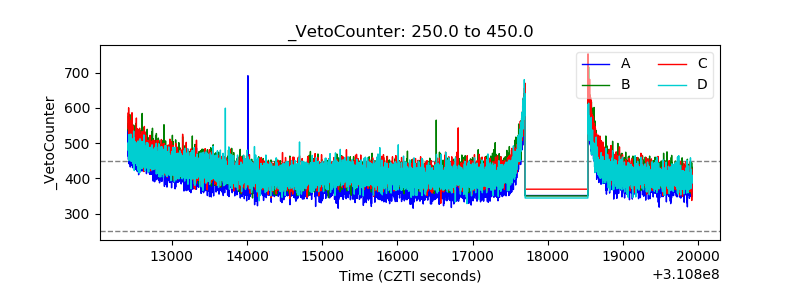

| Veto Counter |  |
