| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003286_22222cztM0_level2.evt | modeM0/AS1A07_054T01_9000003286_22222cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,679,040 | 135,869,760 |
| Size | 439.3 MB | 129.6 MB |
| Events in quadrant A | 3,334,831 | 923,948 |
| Events in quadrant B | 3,377,169 | 928,946 |
| Events in quadrant C | 3,346,750 | 884,872 |
| Events in quadrant D | 3,400,550 | 873,474 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14788 | 1 |
| B | 0 | 14802 | 1 |
| C | 0 | 14840 | 1 |
| D | 0 | 15153 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7238 | 132 | 1.823708% |
| B | 7239 | 130 | 1.795828% |
| C | 7239 | 144 | 1.989225% |
| D | 7239 | 117 | 1.616245% |

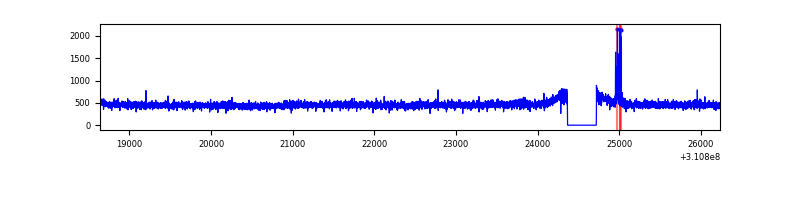

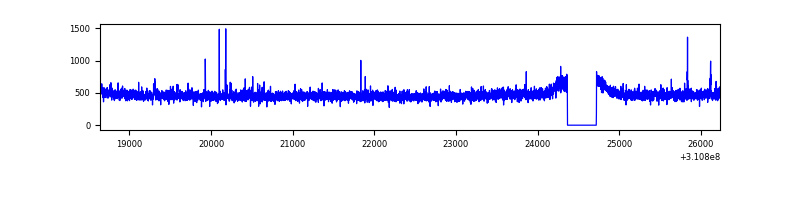

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7593 | 7239 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7594 | 7240 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7594 | 7240 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7594 | 7240 | 21 | 21 | 0.28% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 168 | 11352 | 60.7 | 862 | 843 | 173.1 |
| A | 13 | 254 | 11224 | 59.96 | 862 | 843 | 173.1 |
| A | 3 | 137 | 7519 | 38.56 | 862 | 843 | 173.1 |
| B | 0 | 219 | 20061 | 119.55 | 849 | 825 | 160.9 |
| B | 12 | 111 | 19654 | 117.02 | 849 | 825 | 160.9 |
| B | 0 | 190 | 17502 | 103.65 | 849 | 825 | 160.9 |
| C | 14 | 238 | 130652 | 688.53 | 814 | 816 | 188.6 |
| C | 10 | 22 | 39046 | 202.74 | 814 | 816 | 188.6 |
| C | 13 | 61 | 5667 | 25.73 | 814 | 816 | 188.6 |
| D | 2 | 136 | 67715 | 334.25 | 831 | 808 | 200.2 |
| D | 12 | 227 | 54644 | 268.95 | 831 | 808 | 200.2 |
| D | 5 | 243 | 37691 | 184.26 | 831 | 808 | 200.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

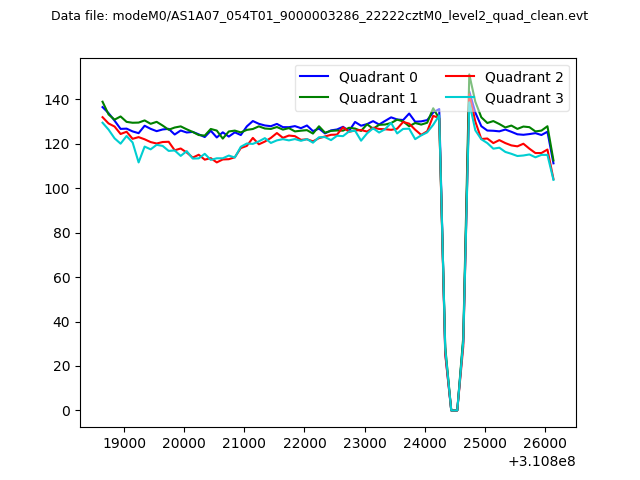

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

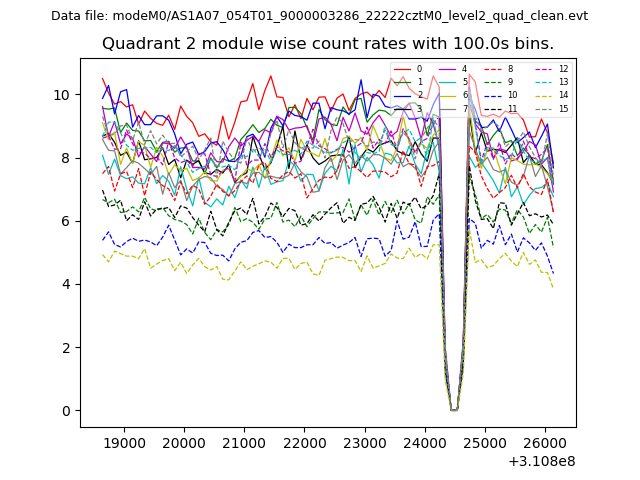

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

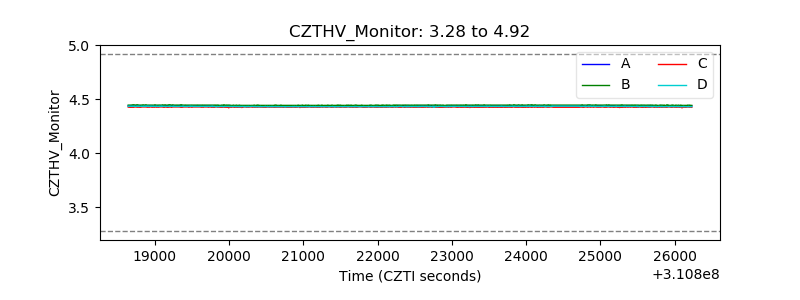

| CZT HV Monitor |  |
| D_VDD |  |

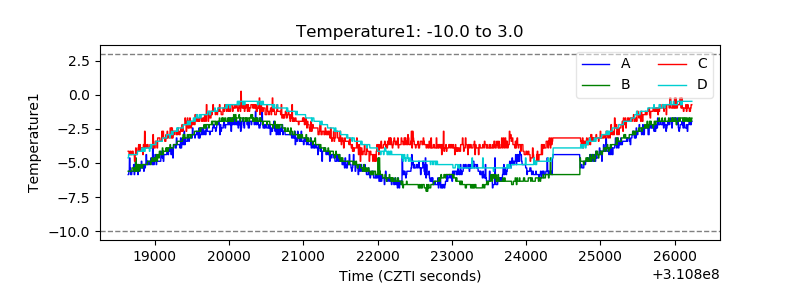

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

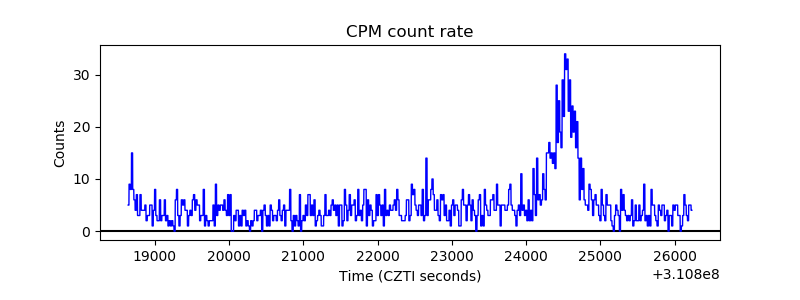

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

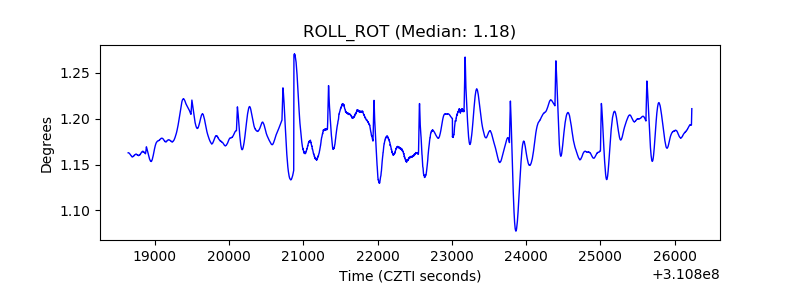

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
