| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_018T07_9000003294_22255cztM0_level2.evt | modeM0/AS1A07_018T07_9000003294_22255cztM0_level2_quad_clean.evt |
| Size (bytes) | 393,641,280 | 71,366,400 |
| Size | 375.4 MB | 68.1 MB |
| Events in quadrant A | 2,657,442 | 449,708 |
| Events in quadrant B | 2,679,169 | 455,193 |
| Events in quadrant C | 2,794,723 | 431,698 |
| Events in quadrant D | 3,399,474 | 422,926 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11756 | 3 |
| B | 0 | 11775 | 7 |
| C | 0 | 12109 | 4 |
| D | 0 | 13950 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5744 | 42 | 0.731198% |
| B | 5742 | 53 | 0.923023% |
| C | 5744 | 99 | 1.723538% |
| D | 5745 | 120 | 2.088773% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6079 | 5745 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6079 | 5745 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6080 | 5746 | 27 | 27 | 0.44% | 0.47% |  |
| D | 6080 | 5746 | 78 | 78 | 1.28% | 1.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9363 | 61.27 | 688 | 673 | 141.8 |
| A | 3 | 137 | 6196 | 38.94 | 688 | 673 | 141.8 |
| A | 0 | 226 | 5901 | 36.86 | 688 | 673 | 141.8 |
| B | 12 | 111 | 16482 | 118.38 | 681 | 663 | 133.6 |
| B | 11 | 111 | 14625 | 104.49 | 681 | 663 | 133.6 |
| B | 14 | 111 | 13027 | 92.53 | 681 | 663 | 133.6 |
| C | 10 | 22 | 125716 | 801.28 | 658 | 662 | 156.1 |
| C | 14 | 238 | 103453 | 658.63 | 658 | 662 | 156.1 |
| C | 13 | 61 | 4580 | 25.1 | 658 | 662 | 156.1 |
| D | 1 | 52 | 712211 | 4372.64 | 662 | 644 | 162.7 |
| D | 13 | 249 | 53219 | 323.08 | 662 | 644 | 162.7 |
| D | 12 | 235 | 46804 | 283.66 | 662 | 644 | 162.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

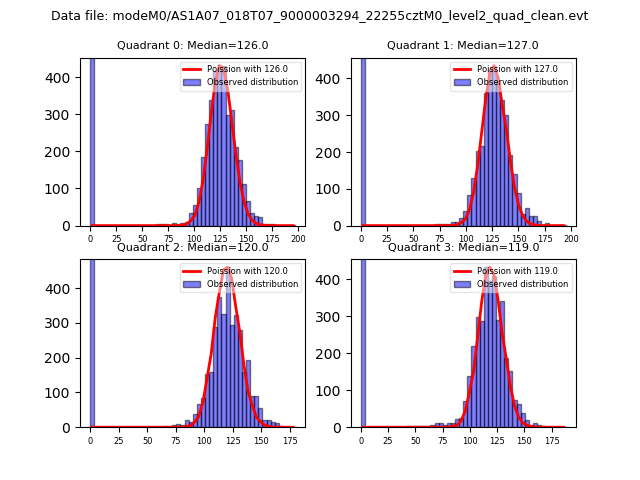

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

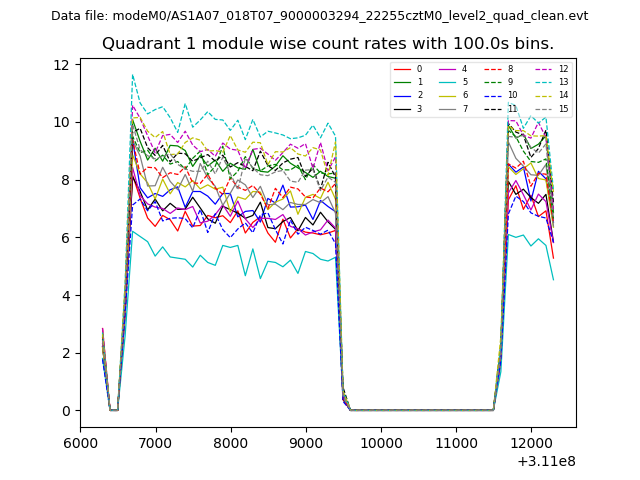

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

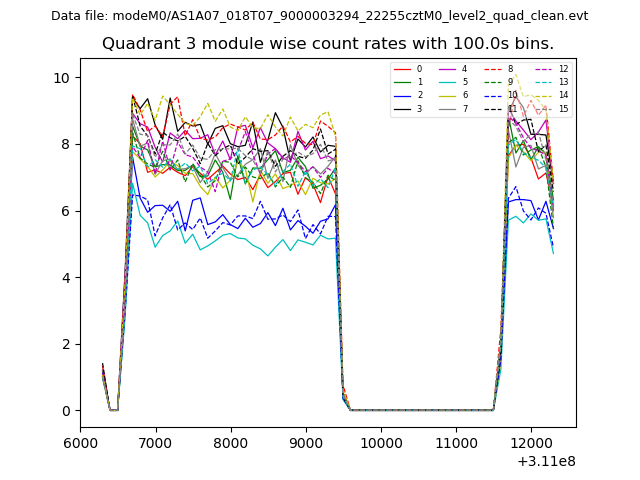

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

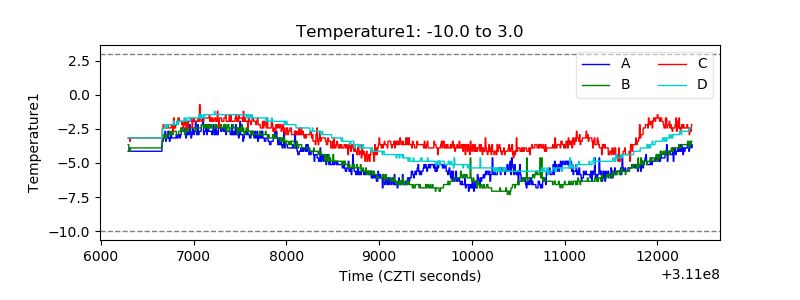

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

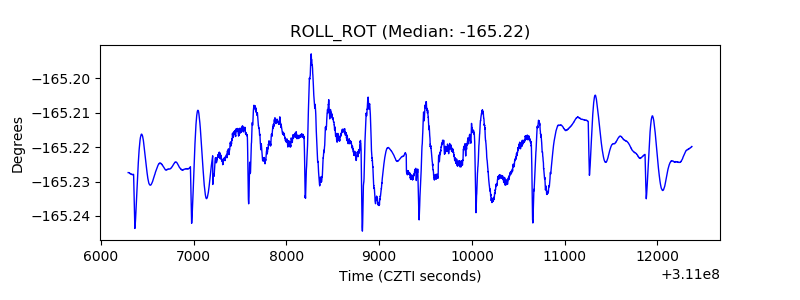

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
