| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_018T07_9000003294_22259cztM0_level2.evt | modeM0/AS1A07_018T07_9000003294_22259cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,955,520 | 78,177,600 |
| Size | 499.7 MB | 74.6 MB |
| Events in quadrant A | 3,169,493 | 496,474 |
| Events in quadrant B | 3,241,692 | 512,727 |
| Events in quadrant C | 3,303,178 | 480,298 |
| Events in quadrant D | 5,710,496 | 422,050 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13510 | 2 |
| B | 0 | 13635 | 2 |
| C | 0 | 13861 | 2 |
| D | 0 | 21312 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6527 | 16 | 0.245136% |
| B | 6527 | 35 | 0.536234% |
| C | 6527 | 59 | 0.903937% |
| D | 6527 | 713 | 10.923855% |

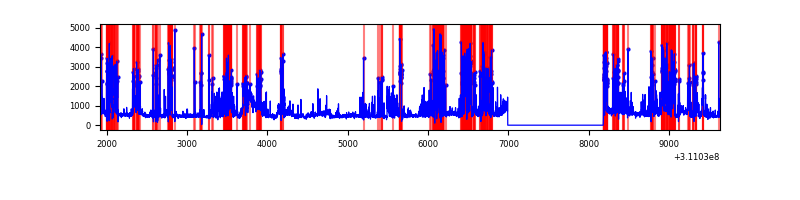

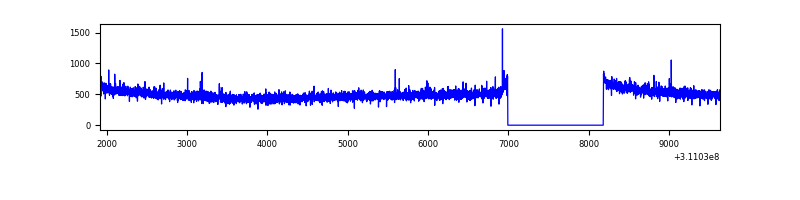

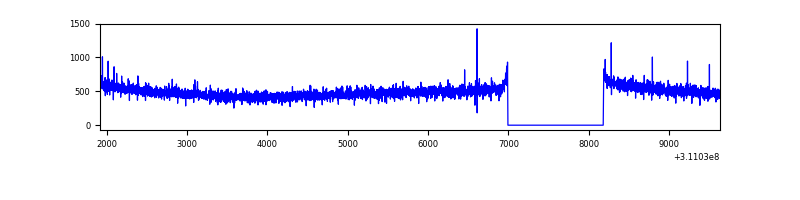

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7717 | 6528 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7717 | 6528 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7717 | 6528 | 14 | 14 | 0.18% | 0.21% |  |
| D | 7717 | 6528 | 536 | 536 | 6.95% | 8.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9294 | 51.58 | 822 | 806 | 164.6 |
| A | 0 | 226 | 7048 | 37.93 | 822 | 806 | 164.6 |
| A | 3 | 137 | 6905 | 37.06 | 822 | 806 | 164.6 |
| B | 12 | 111 | 18895 | 115.82 | 826 | 806 | 156.2 |
| B | 11 | 111 | 17206 | 105.01 | 826 | 806 | 156.2 |
| B | 14 | 111 | 15208 | 92.21 | 826 | 806 | 156.2 |
| C | 14 | 238 | 125754 | 678.17 | 793 | 800 | 184.3 |
| C | 10 | 22 | 73163 | 392.74 | 793 | 800 | 184.3 |
| C | 3 | 9 | 10245 | 51.26 | 793 | 800 | 184.3 |
| D | 1 | 52 | 2628973 | 14561.54 | 748 | 727 | 180.5 |
| D | 2 | 136 | 214730 | 1185.66 | 748 | 727 | 180.5 |
| D | 2 | 234 | 24162 | 129.84 | 748 | 727 | 180.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

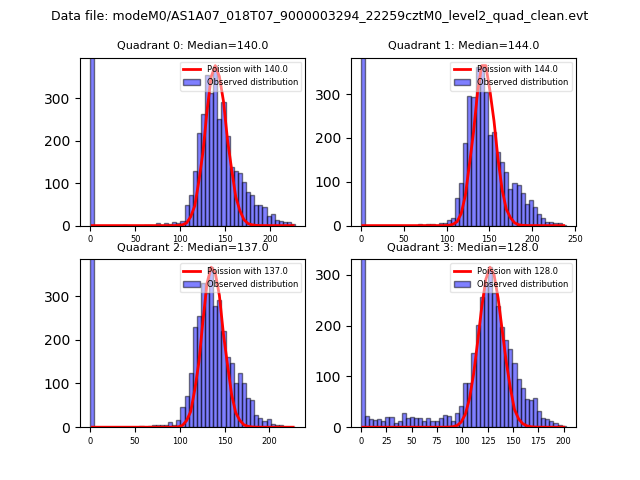

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

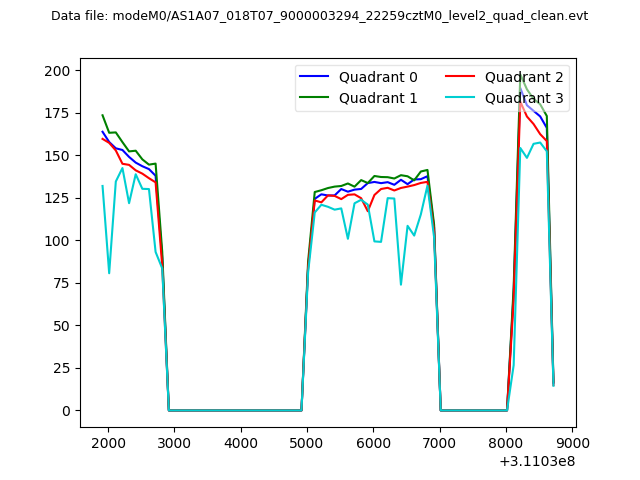

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

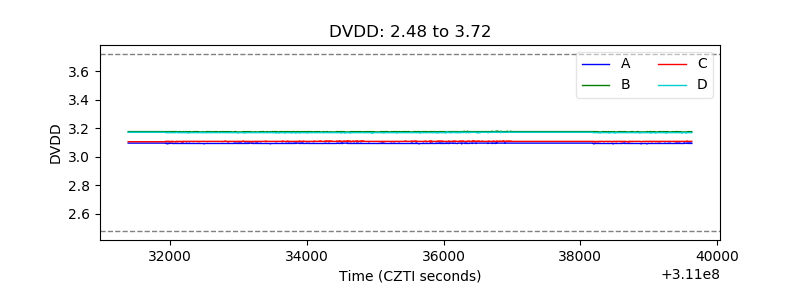

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

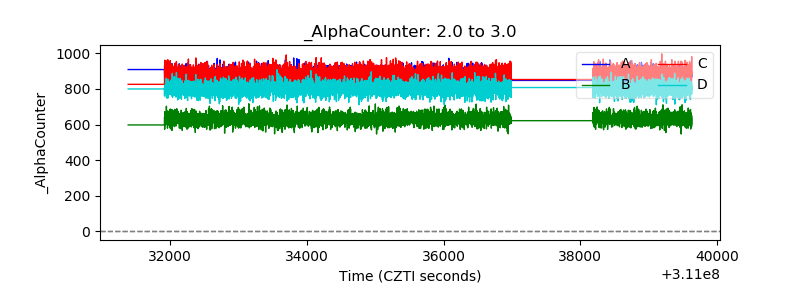

| Alpha Counter |  |

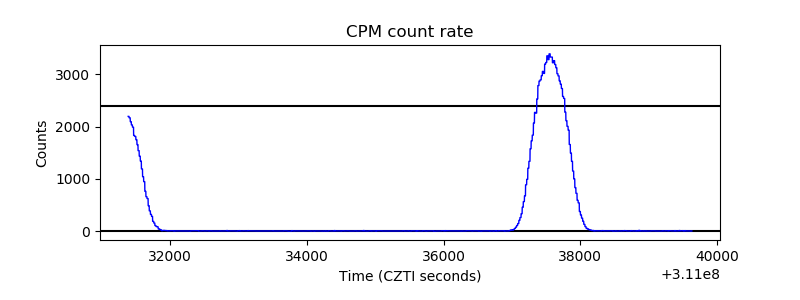

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
