| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_018T07_9000003294_22261cztM0_level2.evt | modeM0/AS1A07_018T07_9000003294_22261cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,802,560 | 61,398,720 |
| Size | 504.3 MB | 58.6 MB |
| Events in quadrant A | 3,215,430 | 367,565 |
| Events in quadrant B | 3,262,461 | 376,586 |
| Events in quadrant C | 3,290,466 | 352,606 |
| Events in quadrant D | 5,836,657 | 340,276 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13073 | 1 |
| B | 0 | 13298 | 1 |
| C | 0 | 13405 | 1 |
| D | 0 | 21182 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6035 | 32 | 0.530240% |
| B | 6036 | 54 | 0.894632% |
| C | 6036 | 79 | 1.308814% |
| D | 6036 | 1137 | 18.836978% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7380 | 6036 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7381 | 6037 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7381 | 6037 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7381 | 6037 | 874 | 874 | 11.84% | 14.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9054 | 49.96 | 834 | 820 | 164.8 |
| A | 0 | 226 | 7142 | 38.36 | 834 | 820 | 164.8 |
| A | 3 | 137 | 6573 | 34.91 | 834 | 820 | 164.8 |
| B | 12 | 111 | 18066 | 111.52 | 833 | 817 | 154.7 |
| B | 11 | 111 | 15985 | 98.07 | 833 | 817 | 154.7 |
| B | 14 | 111 | 14793 | 90.36 | 833 | 817 | 154.7 |
| C | 14 | 238 | 128683 | 701.81 | 790 | 798 | 182.2 |
| C | 3 | 9 | 60312 | 326.6 | 790 | 798 | 182.2 |
| C | 10 | 22 | 17832 | 93.48 | 790 | 798 | 182.2 |
| D | 1 | 52 | 2801266 | 15388.24 | 755 | 736 | 182.0 |
| D | 13 | 172 | 146996 | 803.66 | 755 | 736 | 182.0 |
| D | 2 | 136 | 23618 | 125.73 | 755 | 736 | 182.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

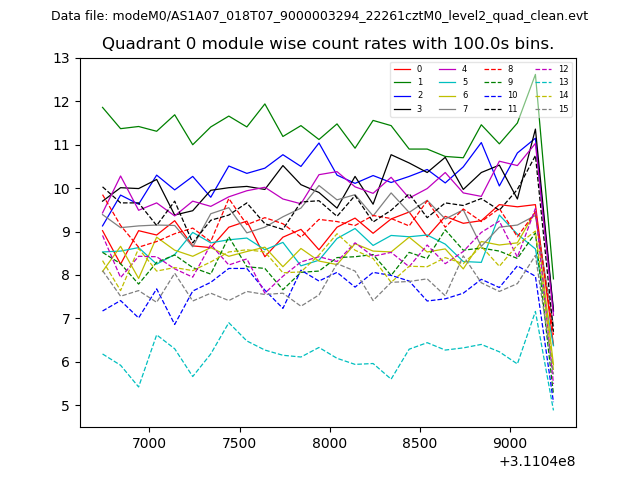

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
