| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_018T07_9000003294_22264cztM0_level2.evt | modeM0/AS1A07_018T07_9000003294_22264cztM0_level2_quad_clean.evt |
| Size (bytes) | 477,630,720 | 92,324,160 |
| Size | 455.5 MB | 88.0 MB |
| Events in quadrant A | 3,370,155 | 598,779 |
| Events in quadrant B | 3,470,538 | 606,464 |
| Events in quadrant C | 3,452,824 | 567,500 |
| Events in quadrant D | 3,718,208 | 557,988 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13881 | 2 |
| B | 0 | 14163 | 2 |
| C | 0 | 14224 | 2 |
| D | 0 | 15164 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6670 | 130 | 1.949025% |
| B | 6670 | 153 | 2.293853% |
| C | 6671 | 173 | 2.593314% |
| D | 6671 | 127 | 1.903763% |

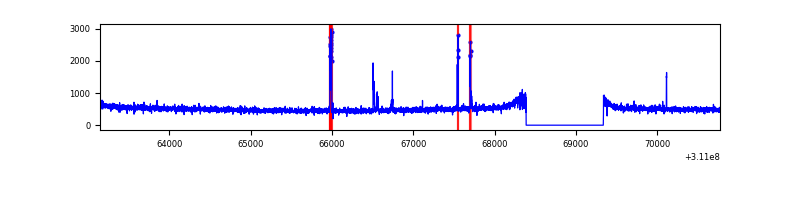

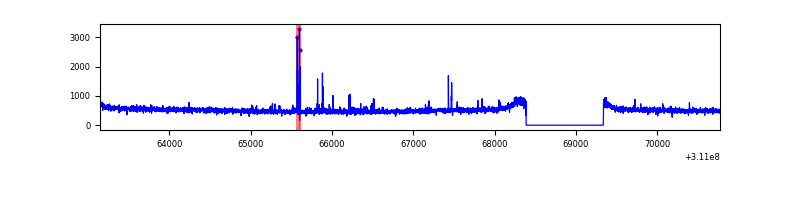

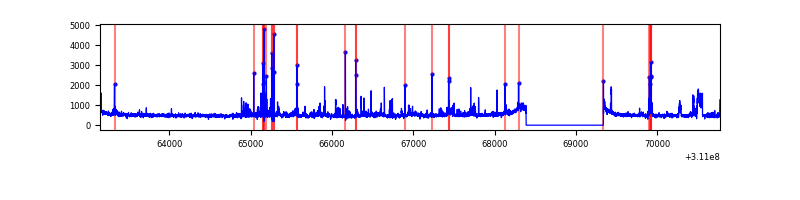

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7620 | 6671 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7620 | 6671 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7621 | 6672 | 23 | 23 | 0.30% | 0.34% |  |
| D | 7621 | 6672 | 28 | 28 | 0.37% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9499 | 49.18 | 874 | 855 | 175.8 |
| A | 0 | 226 | 7654 | 38.68 | 874 | 855 | 175.8 |
| A | 3 | 137 | 7307 | 36.71 | 874 | 855 | 175.8 |
| B | 4 | 171 | 50772 | 299.6 | 869 | 847 | 166.6 |
| B | 12 | 111 | 20253 | 116.45 | 869 | 847 | 166.6 |
| B | 11 | 111 | 18018 | 103.04 | 869 | 847 | 166.6 |
| C | 14 | 238 | 130838 | 676.28 | 823 | 829 | 192.2 |
| C | 10 | 22 | 106494 | 549.65 | 823 | 829 | 192.2 |
| C | 3 | 9 | 8497 | 39.89 | 823 | 829 | 192.2 |
| D | 1 | 52 | 231709 | 1137.86 | 839 | 817 | 202.9 |
| D | 12 | 227 | 131106 | 642.08 | 839 | 817 | 202.9 |
| D | 2 | 136 | 65913 | 320.8 | 839 | 817 | 202.9 |

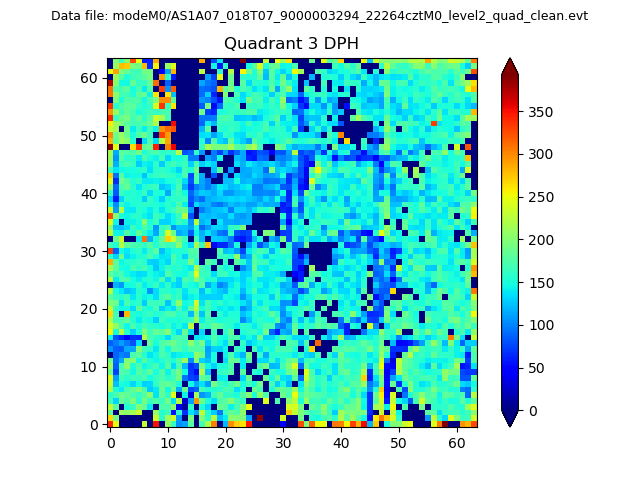

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

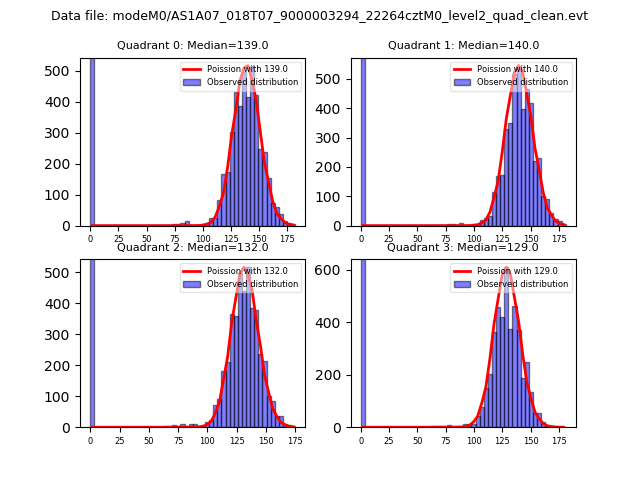

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

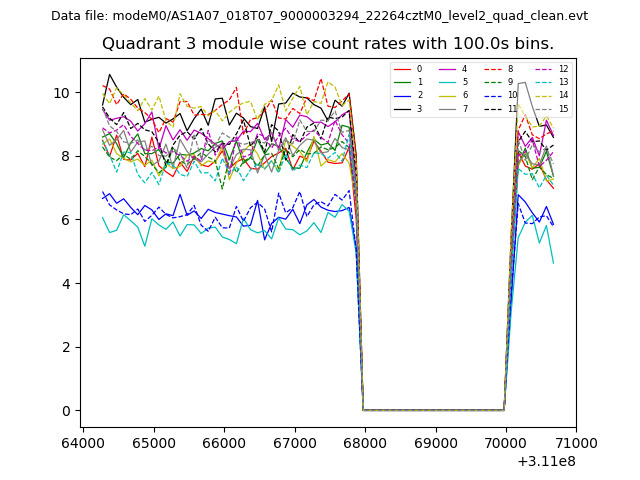

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

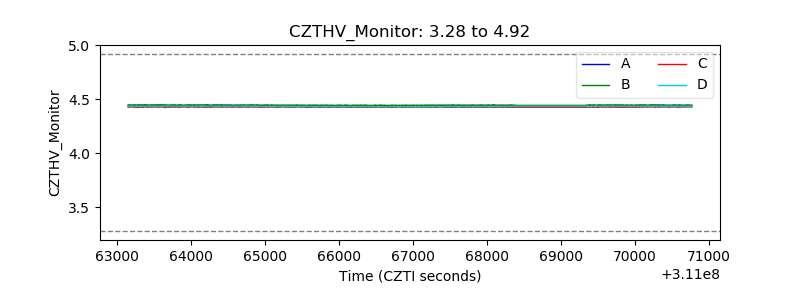

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

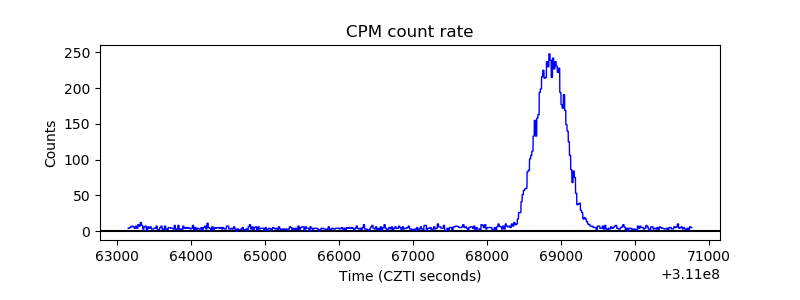

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
