| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_018T07_9000003294_22265cztM0_level2.evt | modeM0/AS1A07_018T07_9000003294_22265cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,952,320 | 96,877,440 |
| Size | 470.1 MB | 92.4 MB |
| Events in quadrant A | 3,472,240 | 622,424 |
| Events in quadrant B | 3,572,764 | 633,137 |
| Events in quadrant C | 3,541,537 | 595,207 |
| Events in quadrant D | 3,855,505 | 584,124 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14781 | 2 |
| B | 0 | 14953 | 2 |
| C | 0 | 15013 | 2 |
| D | 0 | 16092 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7163 | 133 | 1.856764% |
| B | 7163 | 157 | 2.191819% |
| C | 7163 | 159 | 2.219740% |
| D | 7163 | 136 | 1.898646% |

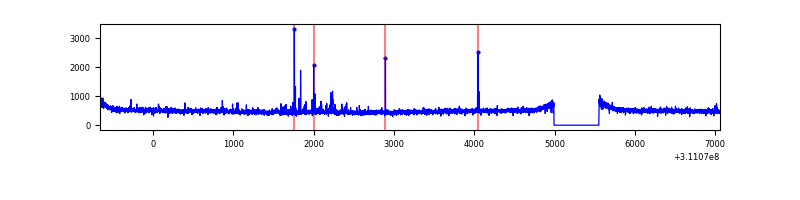

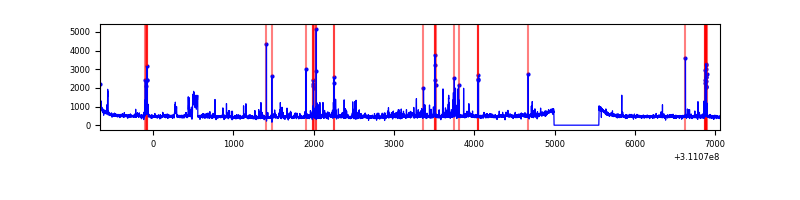

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

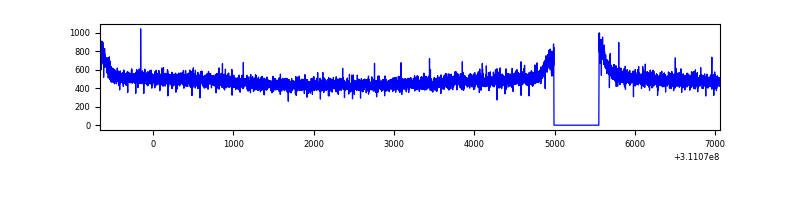

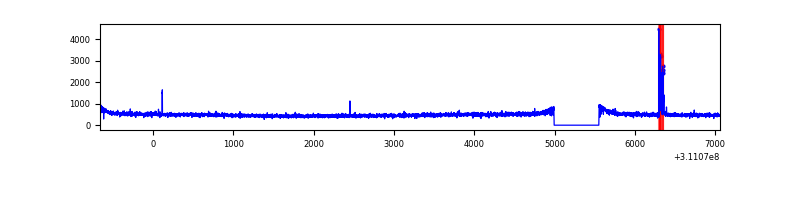

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7723 | 7164 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7723 | 7164 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7723 | 7164 | 14 | 14 | 0.18% | 0.20% |  |
| D | 7723 | 7164 | 42 | 42 | 0.54% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9863 | 49.57 | 900 | 881 | 181.2 |
| A | 3 | 137 | 7846 | 38.44 | 900 | 881 | 181.2 |
| A | 0 | 226 | 7571 | 36.92 | 900 | 881 | 181.2 |
| B | 4 | 171 | 39743 | 224.98 | 893 | 870 | 172.8 |
| B | 3 | 64 | 26525 | 148.48 | 893 | 870 | 172.8 |
| B | 12 | 111 | 21101 | 117.09 | 893 | 870 | 172.8 |
| C | 14 | 238 | 135262 | 676.05 | 852 | 858 | 198.8 |
| C | 10 | 22 | 79068 | 393.39 | 852 | 858 | 198.8 |
| C | 3 | 9 | 6442 | 28.09 | 852 | 858 | 198.8 |
| D | 1 | 52 | 476414 | 2239.8 | 869 | 843 | 212.3 |
| D | 2 | 234 | 25500 | 116.13 | 869 | 843 | 212.3 |
| D | 13 | 172 | 22118 | 100.2 | 869 | 843 | 212.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

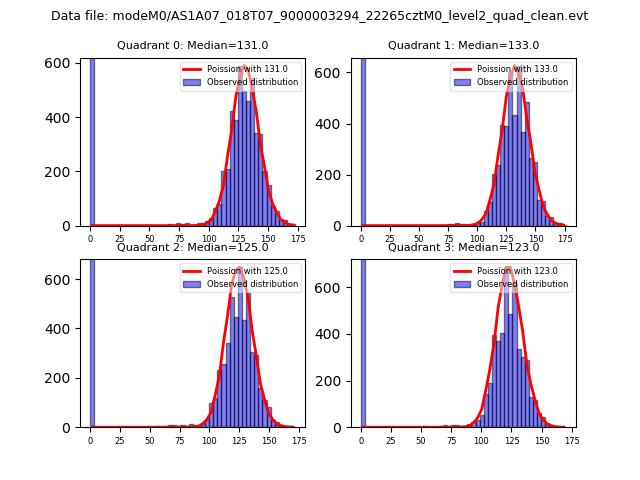

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

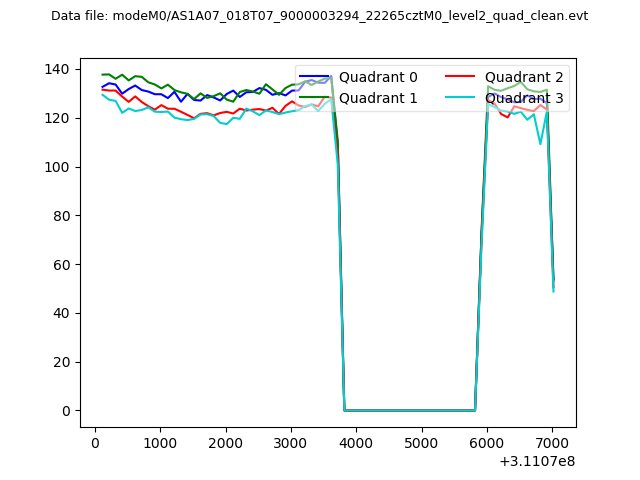

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

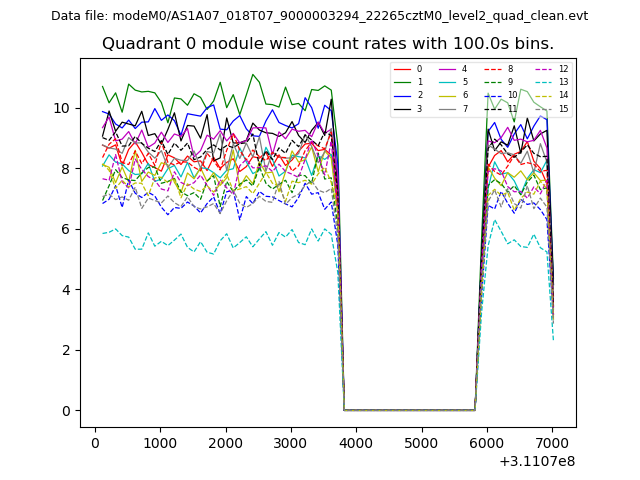

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

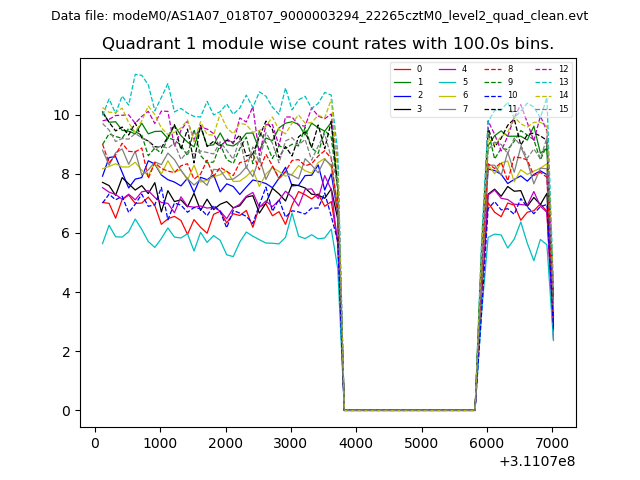

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

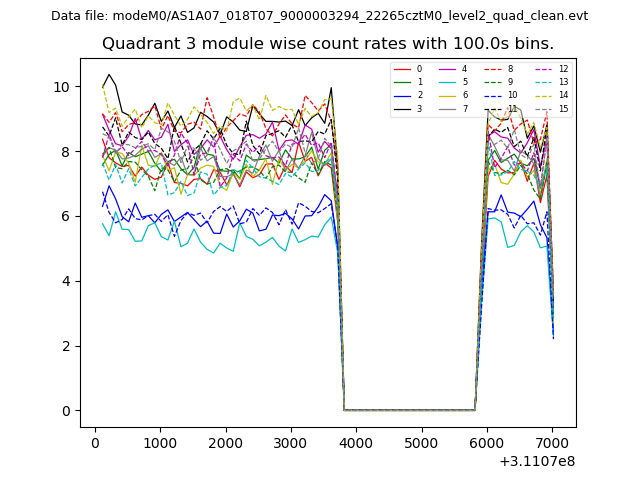

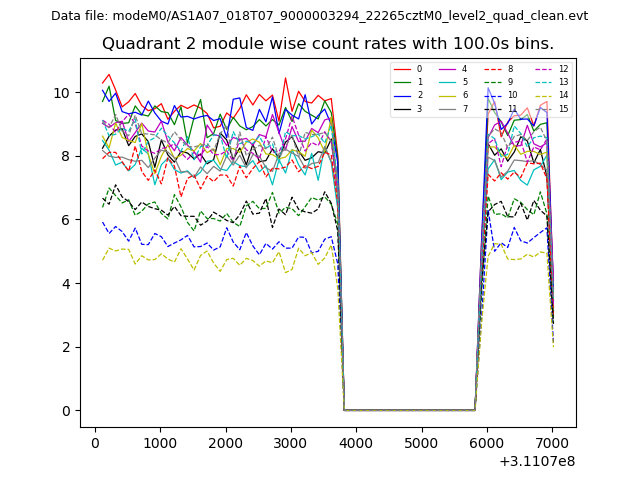

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

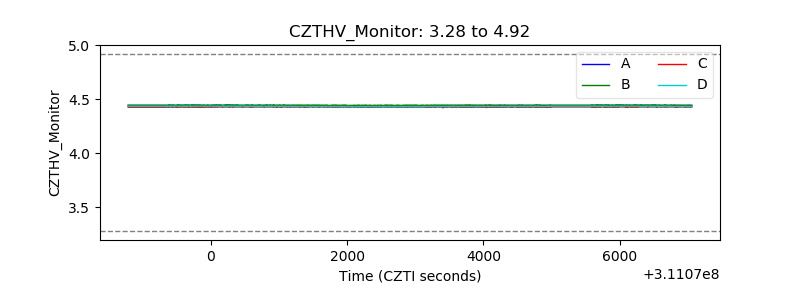

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

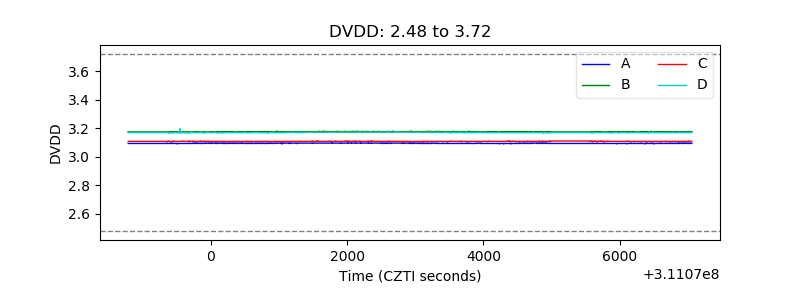

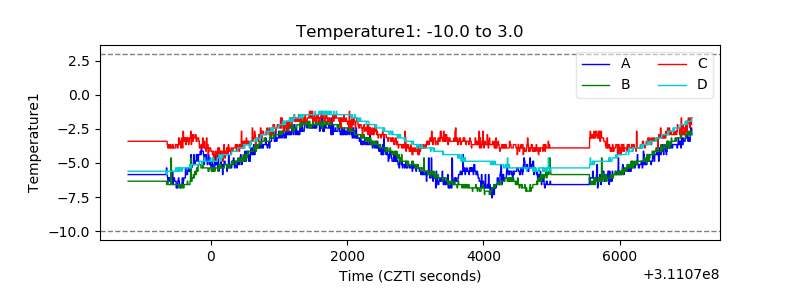

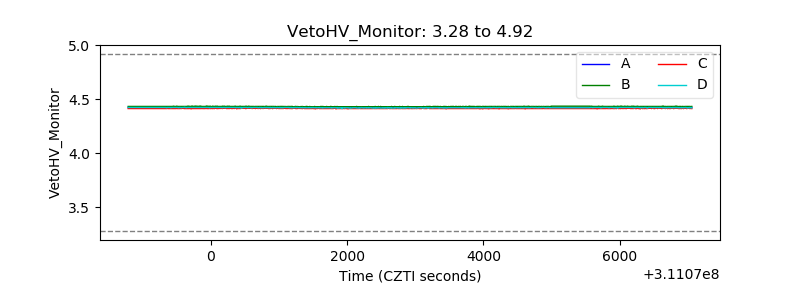

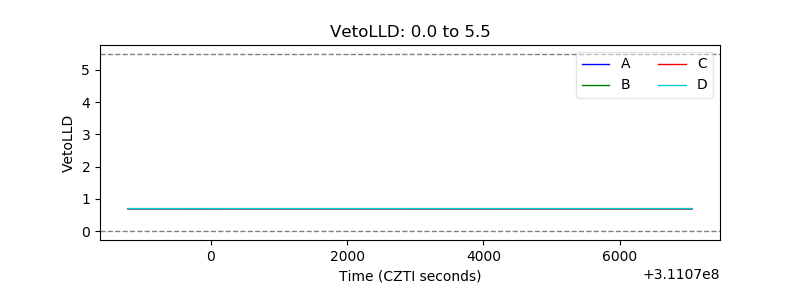

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

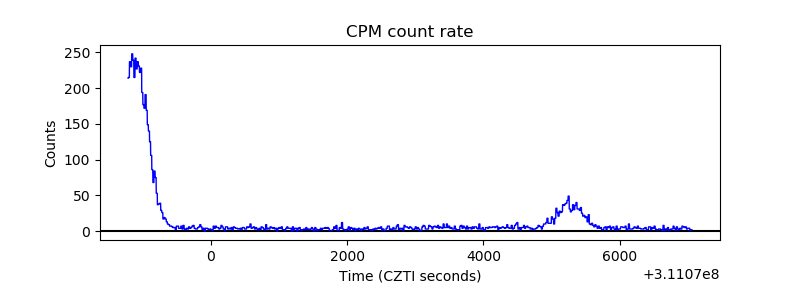

| _CPM_Rate |  |

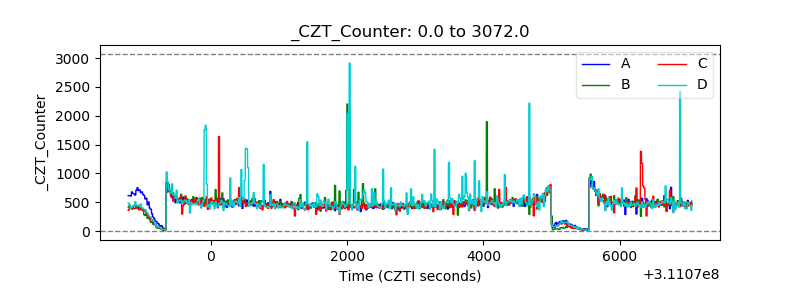

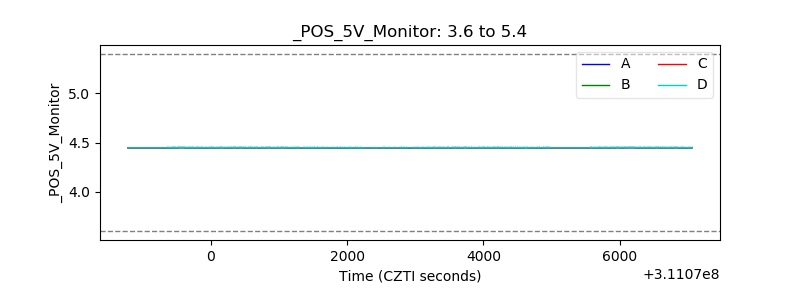

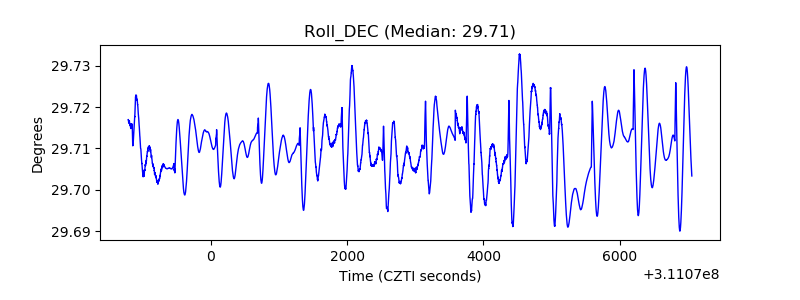

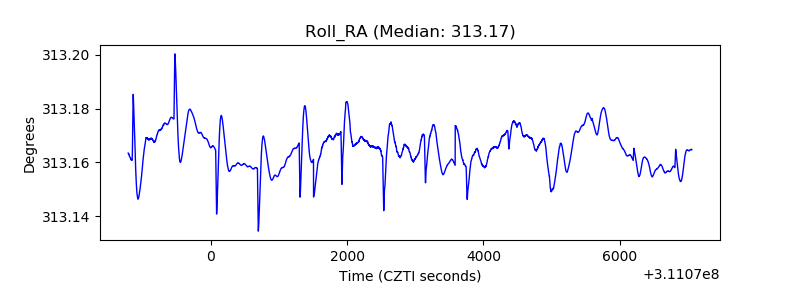

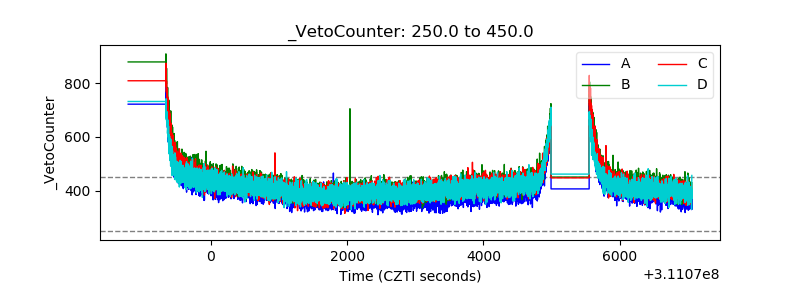

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
