| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_018T08_9000003296_22280cztM0_level2.evt | modeM0/AS1A07_018T08_9000003296_22280cztM0_level2_quad_clean.evt |
| Size (bytes) | 594,645,120 | 97,776,000 |
| Size | 567.1 MB | 93.2 MB |
| Events in quadrant A | 3,612,577 | 627,729 |
| Events in quadrant B | 3,868,480 | 638,134 |
| Events in quadrant C | 3,669,546 | 602,741 |
| Events in quadrant D | 6,353,994 | 574,687 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15443 | 2 |
| B | 0 | 16162 | 2 |
| C | 0 | 15604 | 2 |
| D | 0 | 23898 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7444 | 176 | 2.364320% |
| B | 7444 | 201 | 2.700161% |
| C | 7443 | 192 | 2.579605% |
| D | 7443 | 420 | 5.642886% |

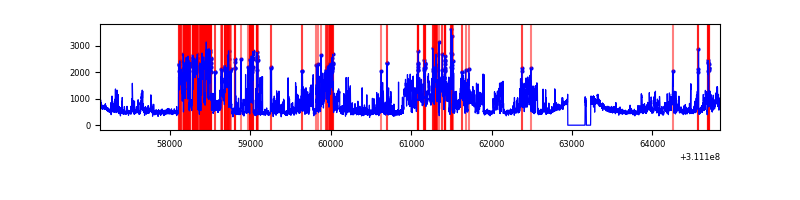

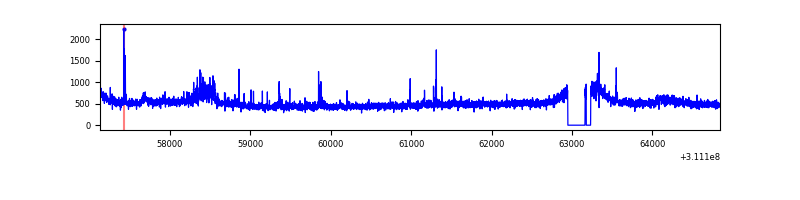

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7714 | 7446 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7714 | 7446 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7713 | 7445 | 10 | 10 | 0.13% | 0.13% |  |
| D | 7713 | 7445 | 349 | 349 | 4.52% | 4.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10761 | 51.92 | 937 | 918 | 189.6 |
| A | 3 | 137 | 8220 | 38.52 | 937 | 918 | 189.6 |
| A | 0 | 226 | 7964 | 37.17 | 937 | 918 | 189.6 |
| B | 0 | 244 | 126406 | 702.39 | 929 | 907 | 178.7 |
| B | 4 | 171 | 48300 | 265.25 | 929 | 907 | 178.7 |
| B | 3 | 64 | 36910 | 201.5 | 929 | 907 | 178.7 |
| C | 14 | 238 | 138572 | 664.33 | 887 | 891 | 207.2 |
| C | 10 | 22 | 70752 | 337.09 | 887 | 891 | 207.2 |
| C | 13 | 61 | 6185 | 25.54 | 887 | 891 | 207.2 |
| D | 1 | 52 | 2774179 | 12662.17 | 898 | 870 | 219.0 |
| D | 12 | 235 | 99664 | 451.07 | 898 | 870 | 219.0 |
| D | 13 | 104 | 34410 | 153.13 | 898 | 870 | 219.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

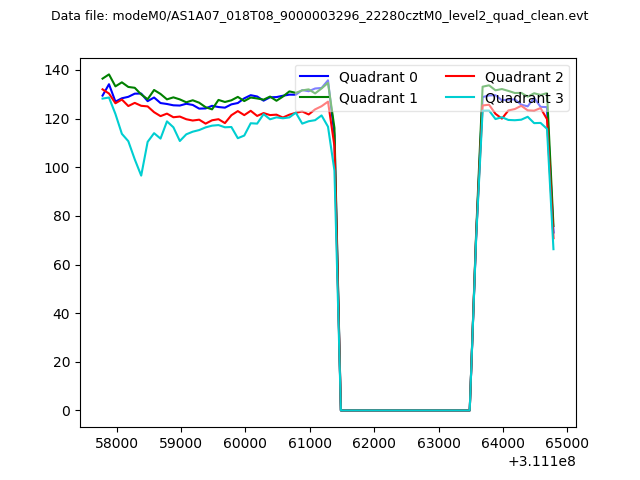

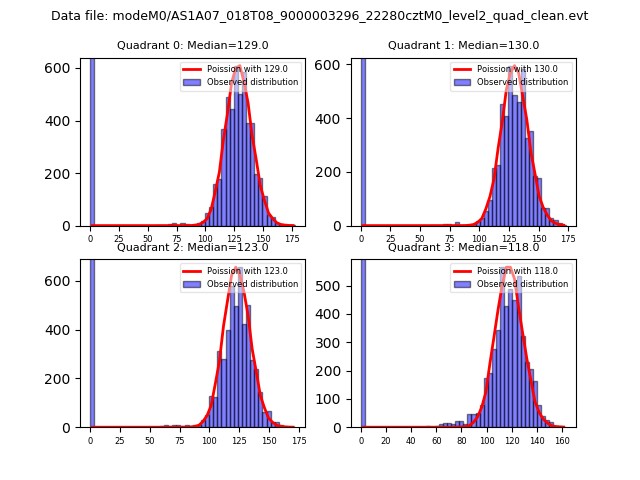

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

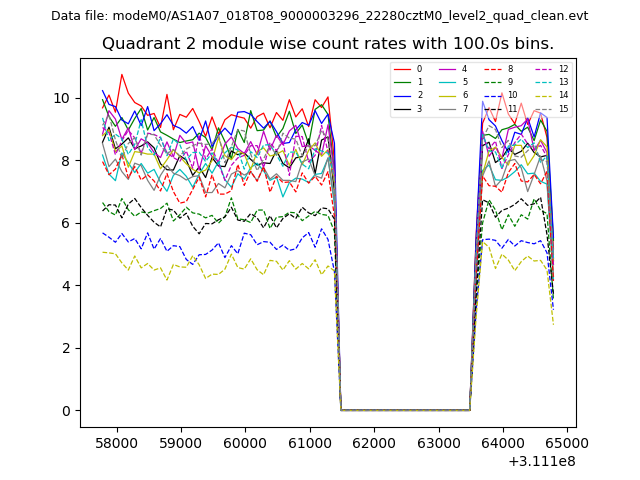

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

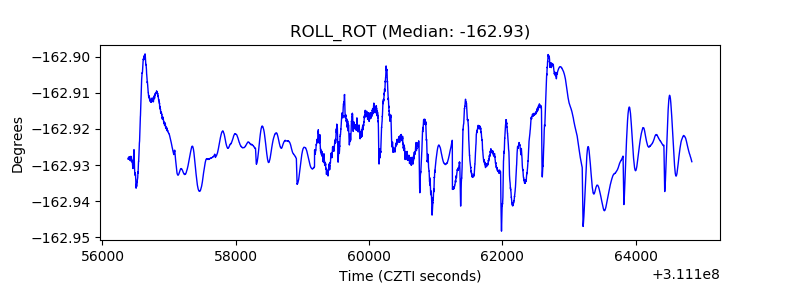

| _ROLL_ROT |  |

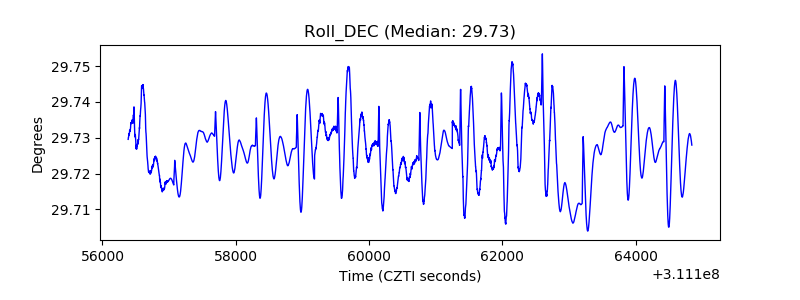

| _Roll_DEC |  |
| _Roll_RA |  |

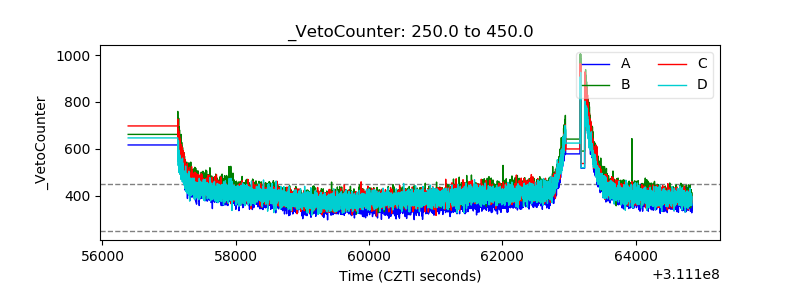

| Veto Counter |  |
