| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_018T08_9000003296_22289cztM0_level2.evt | modeM0/AS1A07_018T08_9000003296_22289cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,725,760 | 67,904,640 |
| Size | 447.0 MB | 64.8 MB |
| Events in quadrant A | 3,082,172 | 414,372 |
| Events in quadrant B | 3,229,773 | 428,328 |
| Events in quadrant C | 3,168,881 | 399,777 |
| Events in quadrant D | 4,298,067 | 385,071 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12825 | 1 |
| B | 0 | 13283 | 1 |
| C | 0 | 13094 | 1 |
| D | 0 | 16776 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6138 | 28 | 0.456175% |
| B | 6138 | 54 | 0.879765% |
| C | 6139 | 48 | 0.781886% |
| D | 6139 | 202 | 3.290438% |

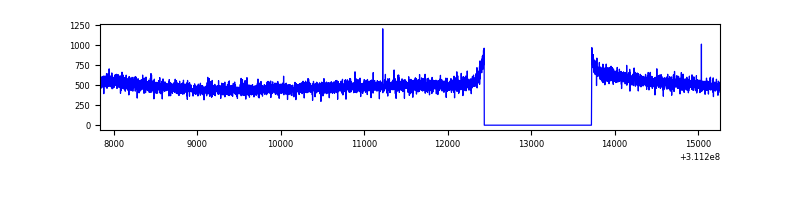

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7423 | 6139 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7423 | 6139 | 13 | 13 | 0.18% | 0.21% |  |
| C | 7424 | 6140 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7424 | 6140 | 188 | 188 | 2.53% | 3.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8166 | 46.49 | 800 | 786 | 158.7 |
| A | 0 | 226 | 6904 | 38.54 | 800 | 786 | 158.7 |
| A | 3 | 137 | 6576 | 36.48 | 800 | 786 | 158.7 |
| B | 0 | 197 | 67183 | 442.41 | 806 | 790 | 150.1 |
| B | 3 | 64 | 20633 | 132.22 | 806 | 790 | 150.1 |
| B | 12 | 111 | 17935 | 114.25 | 806 | 790 | 150.1 |
| C | 14 | 238 | 123638 | 683.21 | 771 | 777 | 179.8 |
| C | 10 | 91 | 36896 | 200.85 | 771 | 777 | 179.8 |
| C | 13 | 61 | 5365 | 25.51 | 771 | 777 | 179.8 |
| D | 1 | 52 | 1327909 | 7222.07 | 763 | 743 | 183.8 |
| D | 2 | 136 | 38776 | 206.96 | 763 | 743 | 183.8 |
| D | 2 | 234 | 22082 | 116.12 | 763 | 743 | 183.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

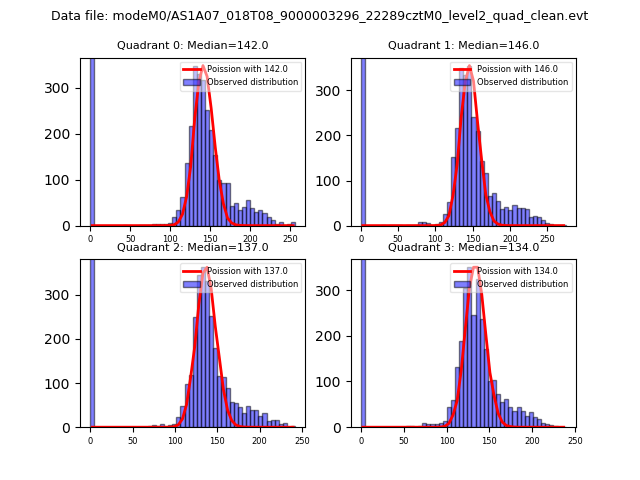

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

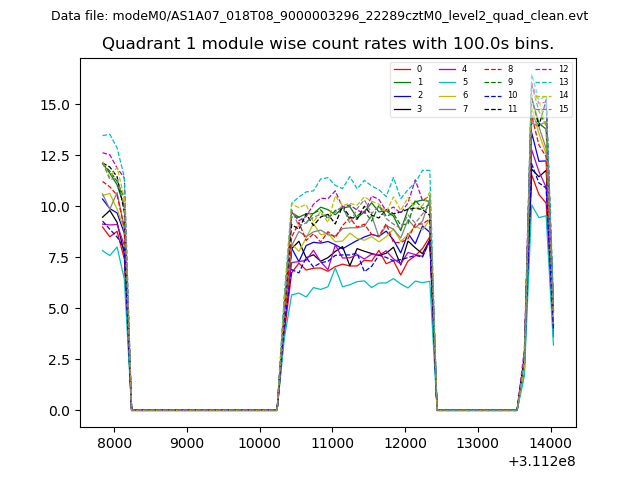

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

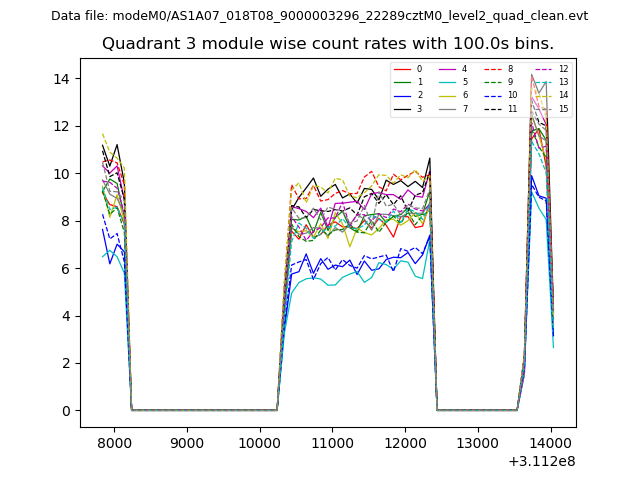

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

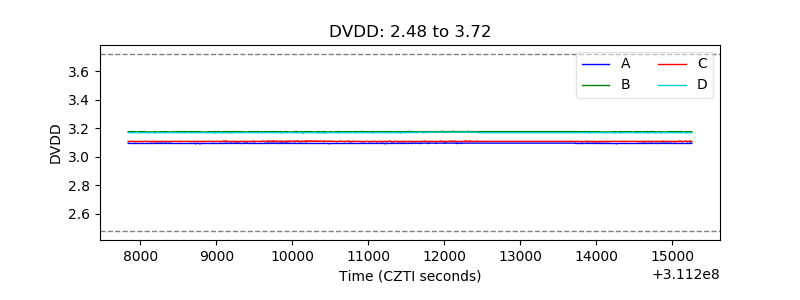

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

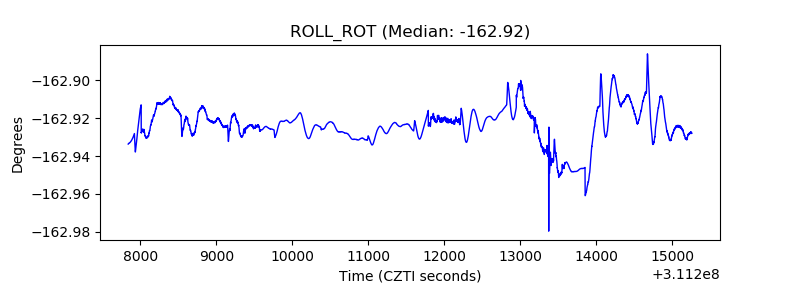

| _ROLL_ROT |  |

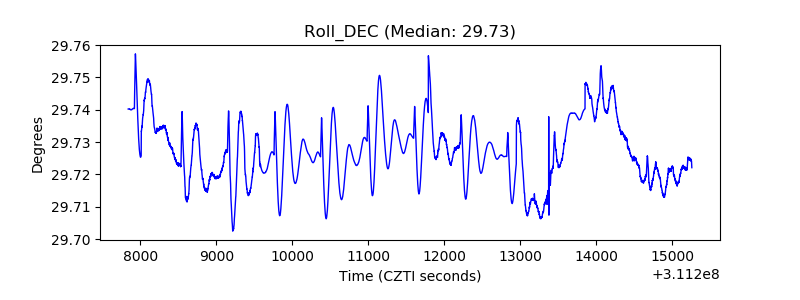

| _Roll_DEC |  |

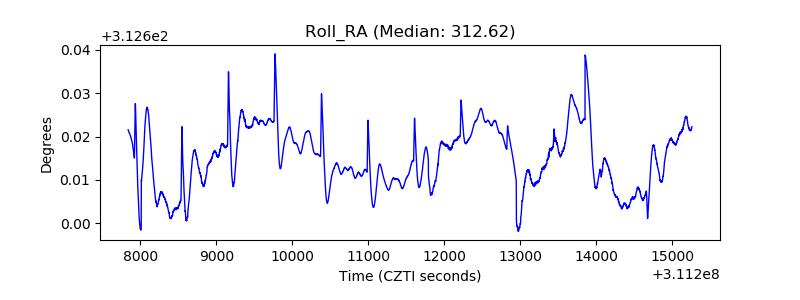

| _Roll_RA |  |
| Veto Counter |  |
