| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_018T08_9000003296_22295cztM0_level2.evt | modeM0/AS1A07_018T08_9000003296_22295cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,309,120 | 100,753,920 |
| Size | 509.6 MB | 96.1 MB |
| Events in quadrant A | 3,794,363 | 640,427 |
| Events in quadrant B | 3,871,900 | 651,983 |
| Events in quadrant C | 3,796,497 | 614,824 |
| Events in quadrant D | 4,190,362 | 602,986 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16270 | 2 |
| B | 0 | 16419 | 2 |
| C | 0 | 16274 | 2 |
| D | 0 | 17497 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7786 | 238 | 3.056769% |
| B | 7786 | 279 | 3.583355% |
| C | 7786 | 215 | 2.761367% |
| D | 7786 | 190 | 2.440277% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7836 | 7787 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7836 | 7787 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7836 | 7787 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7836 | 7787 | 57 | 57 | 0.73% | 0.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10145 | 45.99 | 984 | 962 | 199.7 |
| A | 3 | 137 | 8599 | 38.24 | 984 | 962 | 199.7 |
| A | 0 | 226 | 8298 | 36.74 | 984 | 962 | 199.7 |
| B | 3 | 64 | 36446 | 187.81 | 976 | 950 | 189.0 |
| B | 12 | 111 | 23927 | 121.57 | 976 | 950 | 189.0 |
| B | 11 | 111 | 21294 | 107.64 | 976 | 950 | 189.0 |
| C | 14 | 238 | 146650 | 661.73 | 934 | 942 | 220.2 |
| C | 13 | 61 | 6682 | 26.07 | 934 | 942 | 220.2 |
| C | 8 | 128 | 5382 | 20.16 | 934 | 942 | 220.2 |
| D | 1 | 52 | 388369 | 1668.69 | 952 | 924 | 232.2 |
| D | 12 | 235 | 188243 | 806.77 | 952 | 924 | 232.2 |
| D | 2 | 234 | 30096 | 125.64 | 952 | 924 | 232.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

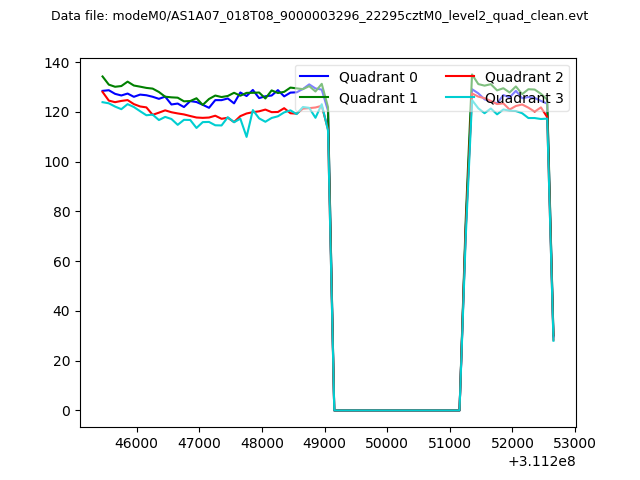

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

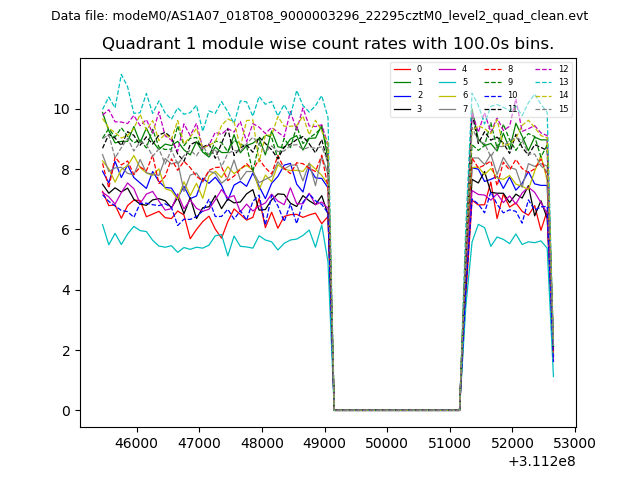

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

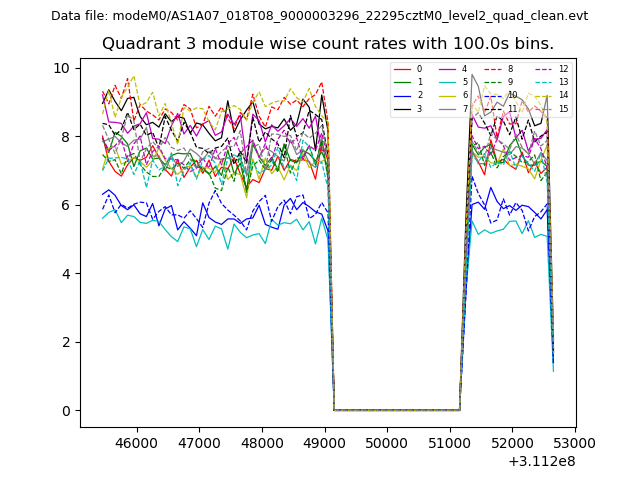

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

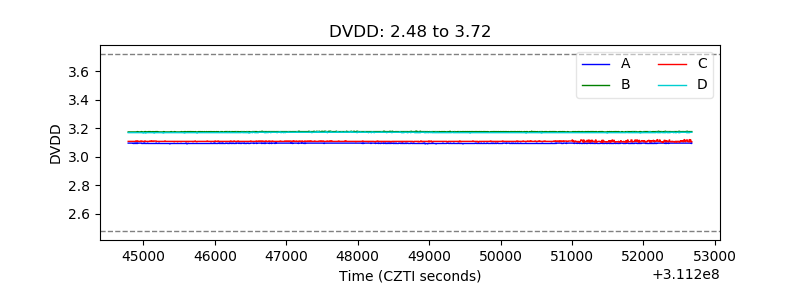

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

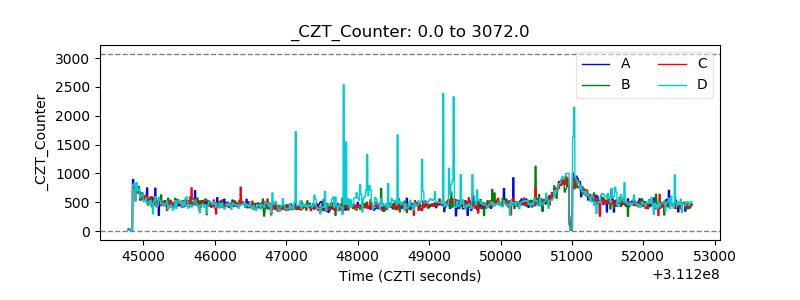

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

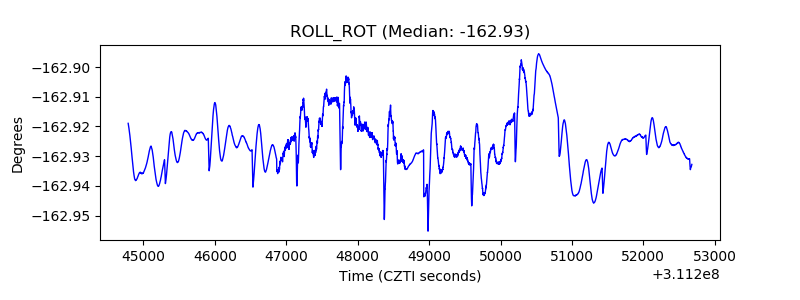

| _ROLL_ROT |  |
| _Roll_DEC |  |

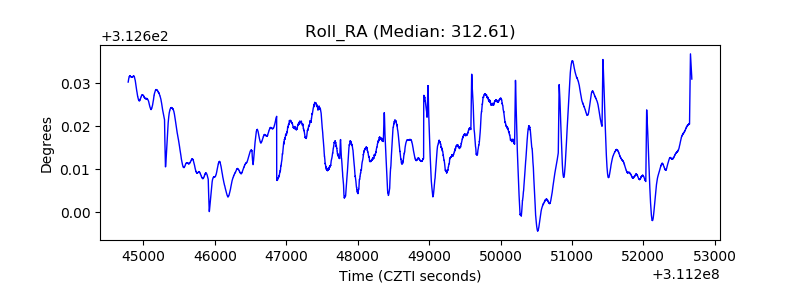

| _Roll_RA |  |

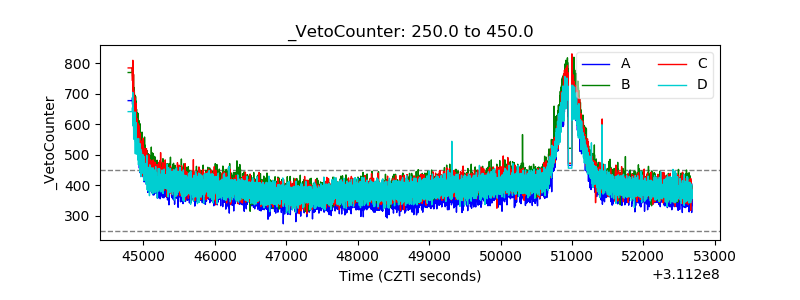

| Veto Counter |  |
