| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_049T01_9000003298_22296cztM0_level2.evt | modeM0/AS1A07_049T01_9000003298_22296cztM0_level2_quad_clean.evt |
| Size (bytes) | 292,452,480 | 46,224,000 |
| Size | 278.9 MB | 44.1 MB |
| Events in quadrant A | 2,105,940 | 279,109 |
| Events in quadrant B | 2,189,454 | 285,984 |
| Events in quadrant C | 2,124,988 | 270,960 |
| Events in quadrant D | 2,148,146 | 265,988 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 86 | 0 |
| B | 0 | 86 | 0 |
| C | 0 | 86 | 0 |
| D | 0 | 86 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8946 | 1 |
| B | 0 | 9091 | 1 |
| C | 0 | 8919 | 1 |
| D | 0 | 9129 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4222 | 169 | 4.002842% |
| B | 4222 | 200 | 4.737091% |
| C | 4222 | 180 | 4.263382% |
| D | 4222 | 118 | 2.794884% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4342 | 4224 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4342 | 4224 | 7 | 7 | 0.16% | 0.17% |  |
| C | 4342 | 4224 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4342 | 4224 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 5666 | 45.49 | 546 | 533 | 112.8 |
| A | 3 | 137 | 4964 | 39.27 | 546 | 533 | 112.8 |
| A | 0 | 226 | 4806 | 37.87 | 546 | 533 | 112.8 |
| B | 3 | 64 | 54572 | 499.35 | 543 | 526 | 108.2 |
| B | 12 | 111 | 13565 | 120.47 | 543 | 526 | 108.2 |
| B | 11 | 111 | 12372 | 109.45 | 543 | 526 | 108.2 |
| C | 14 | 238 | 81295 | 649.33 | 522 | 523 | 124.4 |
| C | 8 | 128 | 6098 | 44.82 | 522 | 523 | 124.4 |
| C | 13 | 61 | 3577 | 24.55 | 522 | 523 | 124.4 |
| D | 1 | 52 | 61118 | 462.32 | 532 | 515 | 131.1 |
| D | 12 | 235 | 39662 | 298.64 | 532 | 515 | 131.1 |
| D | 12 | 227 | 17842 | 132.18 | 532 | 515 | 131.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

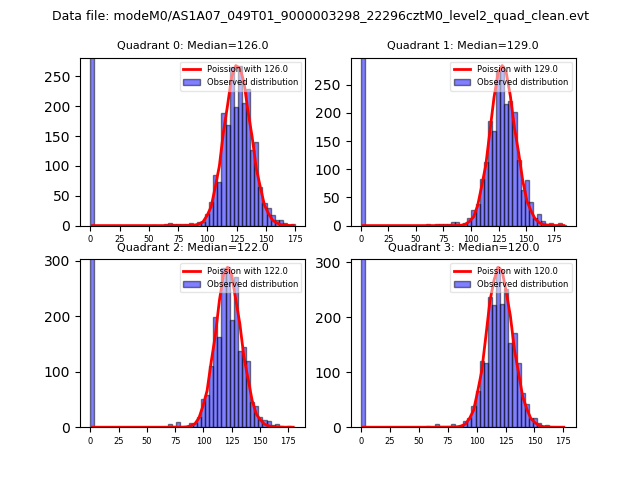

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

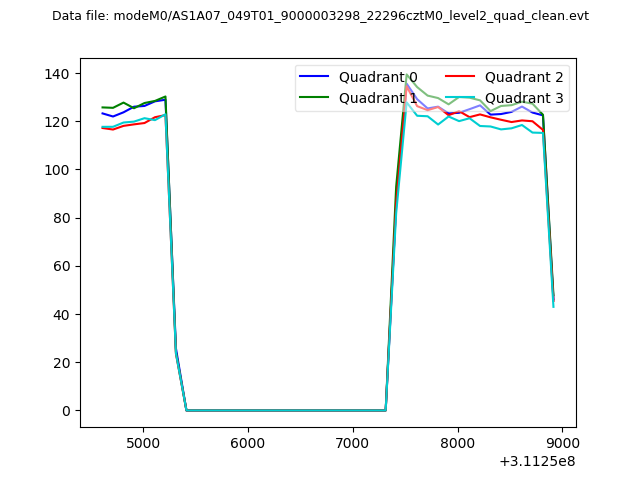

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

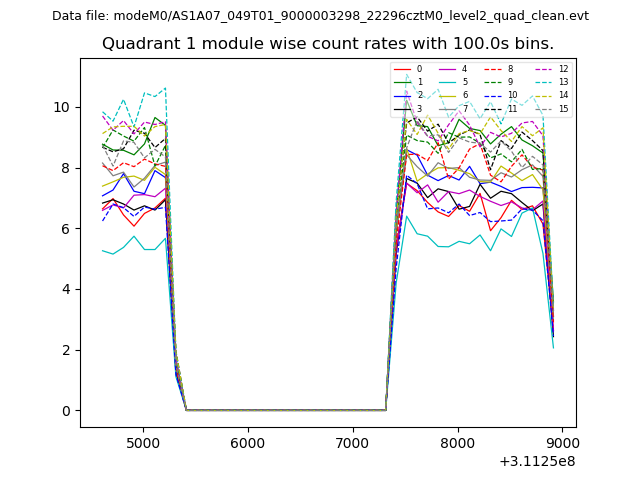

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

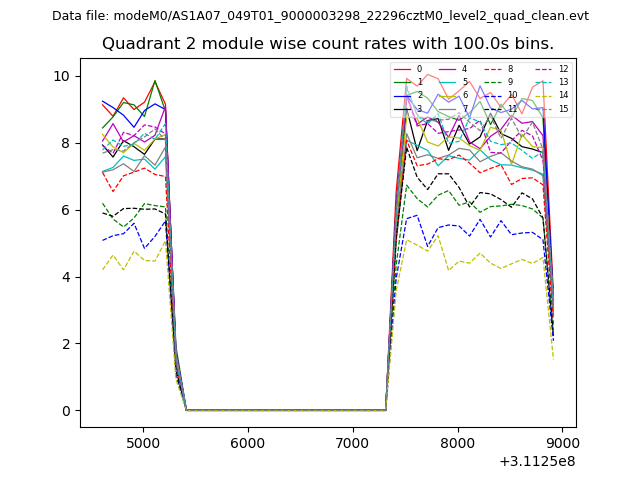

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

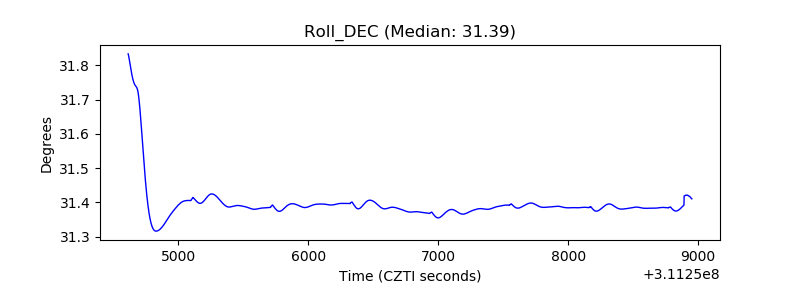

| _Roll_DEC |  |

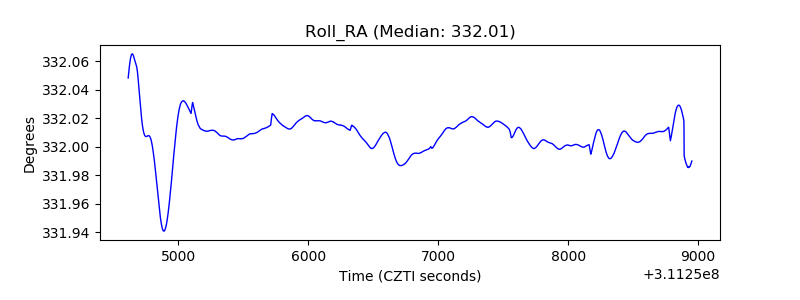

| _Roll_RA |  |
| Veto Counter |  |
