| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_149T01_9000003304_22321cztM0_level2.evt | modeM0/AS1A07_149T01_9000003304_22321cztM0_level2_quad_clean.evt |
| Size (bytes) | 394,597,440 | 93,251,520 |
| Size | 376.3 MB | 88.9 MB |
| Events in quadrant A | 2,801,798 | 609,962 |
| Events in quadrant B | 2,883,467 | 630,486 |
| Events in quadrant C | 2,904,445 | 602,219 |
| Events in quadrant D | 2,974,455 | 584,308 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11632 | 1 |
| B | 0 | 11805 | 1 |
| C | 0 | 11771 | 1 |
| D | 0 | 12297 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5676 | 15 | 0.264271% |
| B | 5677 | 29 | 0.510833% |
| C | 5677 | 68 | 1.197816% |
| D | 5677 | 16 | 0.281839% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6971 | 5677 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6972 | 5678 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6972 | 5678 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6972 | 5678 | 10 | 10 | 0.14% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 8970 | 57.43 | 725 | 712 | 143.8 |
| A | 13 | 254 | 7482 | 47.08 | 725 | 712 | 143.8 |
| A | 0 | 226 | 6161 | 37.89 | 725 | 712 | 143.8 |
| B | 12 | 111 | 15484 | 110.32 | 731 | 713 | 133.9 |
| B | 11 | 111 | 13746 | 97.34 | 731 | 713 | 133.9 |
| B | 0 | 190 | 13225 | 93.45 | 731 | 713 | 133.9 |
| C | 14 | 238 | 116109 | 706.25 | 714 | 720 | 163.4 |
| C | 0 | 10 | 5500 | 29.26 | 714 | 720 | 163.4 |
| C | 13 | 61 | 5004 | 26.22 | 714 | 720 | 163.4 |
| D | 1 | 52 | 191034 | 1106.85 | 717 | 697 | 172.0 |
| D | 2 | 136 | 40302 | 230.31 | 717 | 697 | 172.0 |
| D | 2 | 234 | 21690 | 122.08 | 717 | 697 | 172.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

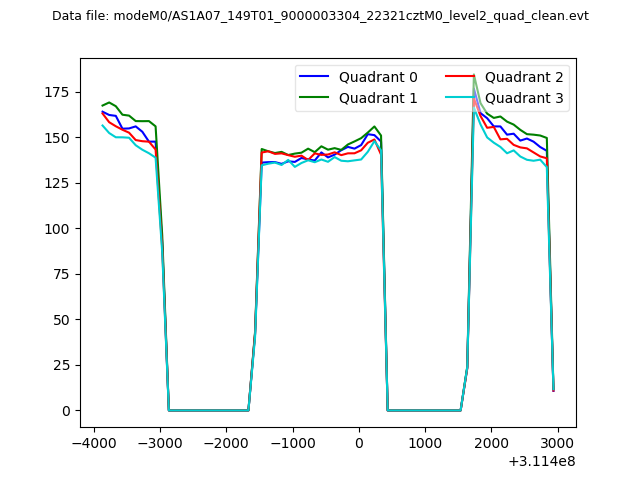

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

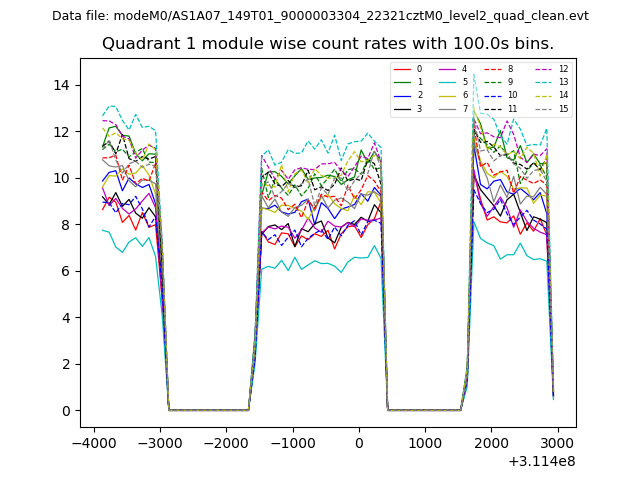

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

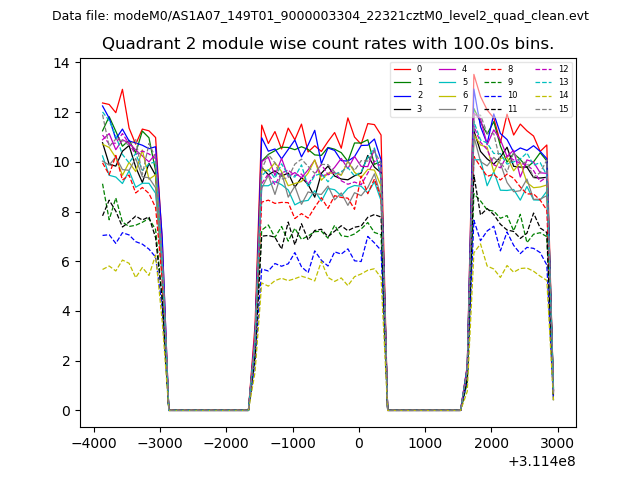

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

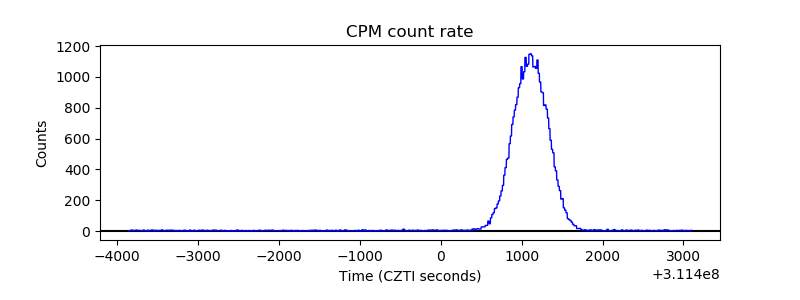

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

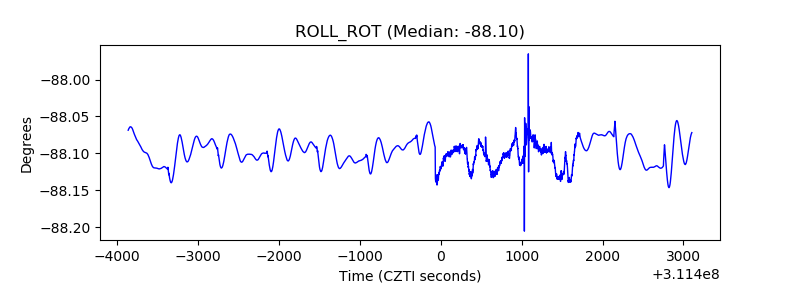

| _ROLL_ROT |  |

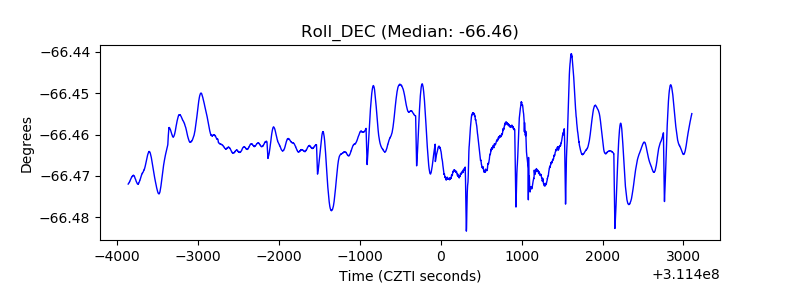

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
