| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_149T01_9000003304_22331cztM0_level2.evt | modeM0/AS1A07_149T01_9000003304_22331cztM0_level2_quad_clean.evt |
| Size (bytes) | 448,922,880 | 107,314,560 |
| Size | 428.1 MB | 102.3 MB |
| Events in quadrant A | 3,136,193 | 709,322 |
| Events in quadrant B | 3,224,426 | 728,799 |
| Events in quadrant C | 3,146,021 | 683,554 |
| Events in quadrant D | 3,633,684 | 661,612 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13807 | 2 |
| B | 0 | 13988 | 3 |
| C | 0 | 13724 | 2 |
| D | 0 | 15496 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6698 | 22 | 0.328456% |
| B | 6698 | 31 | 0.462825% |
| C | 6698 | 45 | 0.671842% |
| D | 6698 | 60 | 0.895790% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7828 | 6699 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7828 | 6699 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7828 | 6699 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7828 | 6699 | 61 | 61 | 0.78% | 0.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 26314 | 156.66 | 804 | 788 | 162.9 |
| A | 13 | 254 | 9125 | 51.17 | 804 | 788 | 162.9 |
| A | 3 | 137 | 7123 | 38.88 | 804 | 788 | 162.9 |
| B | 12 | 111 | 18488 | 115.62 | 810 | 790 | 153.1 |
| B | 11 | 111 | 15933 | 98.92 | 810 | 790 | 153.1 |
| B | 10 | 247 | 15735 | 97.63 | 810 | 790 | 153.1 |
| C | 14 | 238 | 123126 | 680.5 | 771 | 776 | 179.8 |
| C | 0 | 10 | 10385 | 53.44 | 771 | 776 | 179.8 |
| C | 13 | 61 | 5497 | 26.26 | 771 | 776 | 179.8 |
| D | 1 | 52 | 556023 | 2968.04 | 769 | 749 | 187.1 |
| D | 13 | 174 | 82856 | 438.88 | 769 | 749 | 187.1 |
| D | 12 | 227 | 44018 | 231.28 | 769 | 749 | 187.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

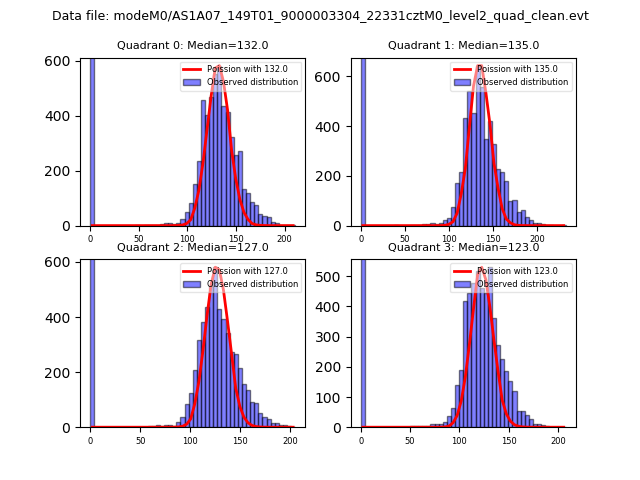

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

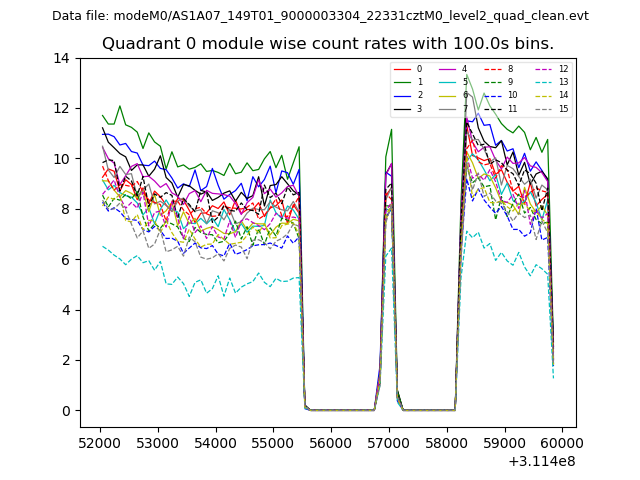

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

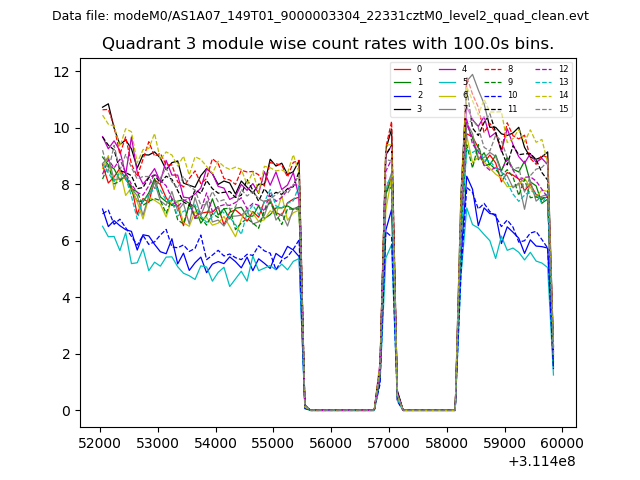

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

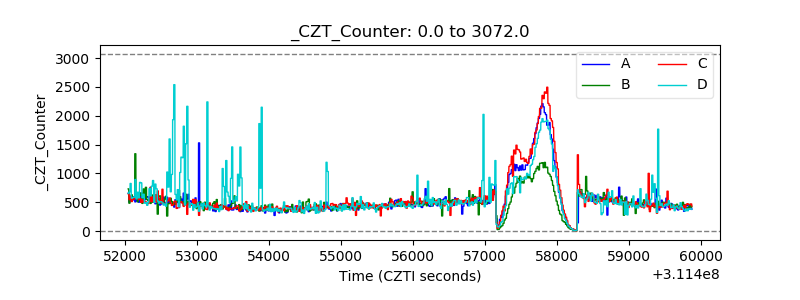

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

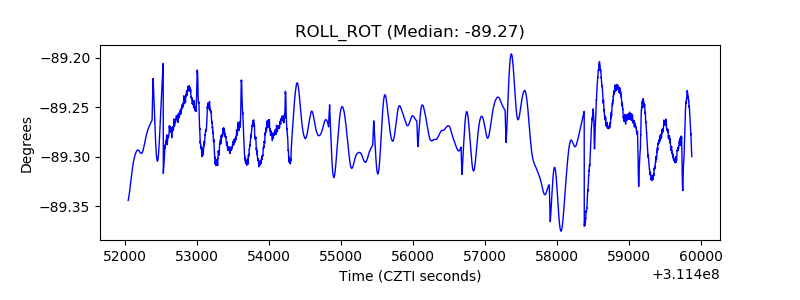

| _ROLL_ROT |  |
| _Roll_DEC |  |

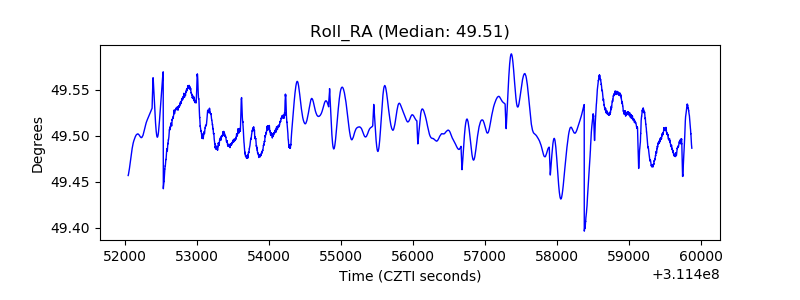

| _Roll_RA |  |

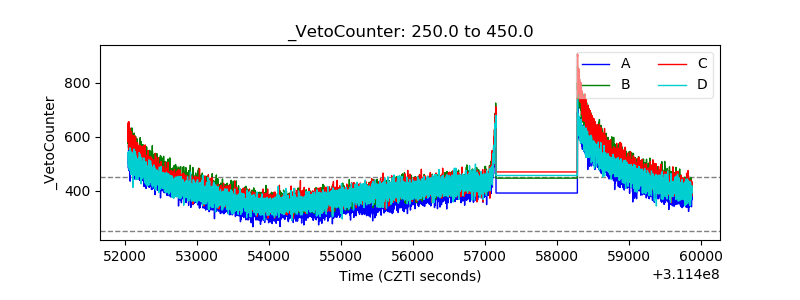

| Veto Counter |  |
