| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_147T01_9000003306_22338cztM0_level2.evt | modeM0/AS1T03_147T01_9000003306_22338cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,962,880 | 99,270,720 |
| Size | 450.1 MB | 94.7 MB |
| Events in quadrant A | 3,428,746 | 631,725 |
| Events in quadrant B | 3,504,945 | 646,678 |
| Events in quadrant C | 3,505,909 | 614,787 |
| Events in quadrant D | 3,358,285 | 605,734 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14949 | 3 |
| B | 0 | 15107 | 3 |
| C | 0 | 15001 | 3 |
| D | 0 | 15040 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7286 | 110 | 1.509745% |
| B | 7287 | 134 | 1.838891% |
| C | 7287 | 152 | 2.085906% |
| D | 7286 | 97 | 1.331320% |

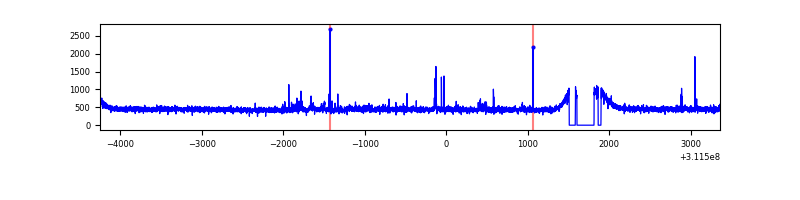

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7606 | 7288 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7607 | 7289 | 4 | 4 | 0.05% | 0.05% |  |
| C | 7607 | 7289 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7606 | 7288 | 2 | 2 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 10924 | 56.23 | 887 | 867 | 178.8 |
| A | 13 | 254 | 10395 | 53.27 | 887 | 867 | 178.8 |
| A | 3 | 137 | 7953 | 39.62 | 887 | 867 | 178.8 |
| B | 4 | 173 | 32577 | 185.38 | 886 | 862 | 171.1 |
| B | 12 | 111 | 21201 | 118.89 | 886 | 862 | 171.1 |
| B | 11 | 111 | 18814 | 104.93 | 886 | 862 | 171.1 |
| C | 14 | 238 | 135544 | 665.86 | 862 | 866 | 202.3 |
| C | 13 | 61 | 6054 | 25.65 | 862 | 866 | 202.3 |
| C | 10 | 22 | 2784 | 9.48 | 862 | 866 | 202.3 |
| D | 13 | 172 | 30689 | 140.2 | 873 | 847 | 212.9 |
| D | 2 | 234 | 28891 | 131.75 | 873 | 847 | 212.9 |
| D | 1 | 52 | 12684 | 55.61 | 873 | 847 | 212.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

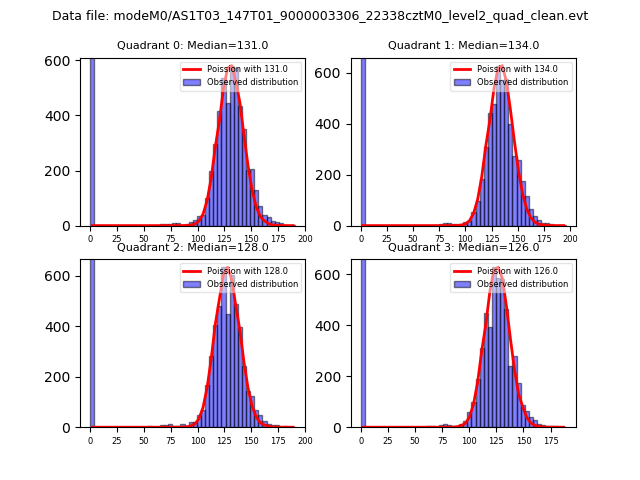

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

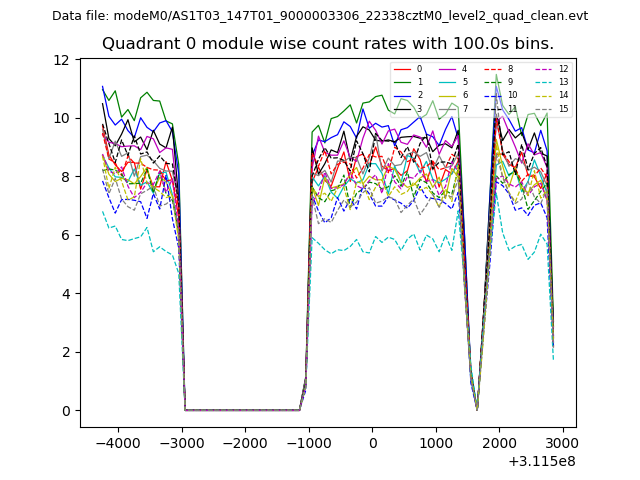

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

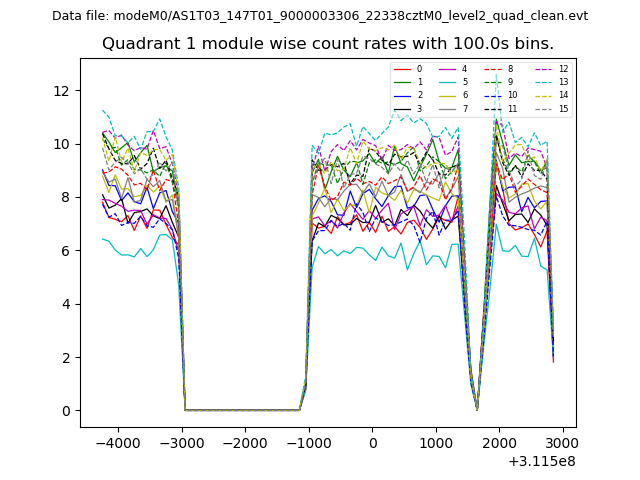

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

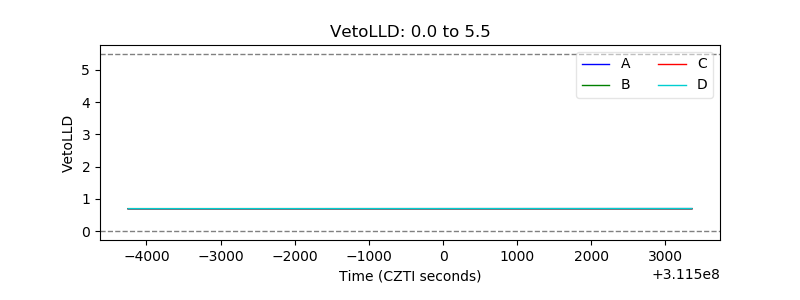

| Veto LLD |  |
| Alpha Counter |  |

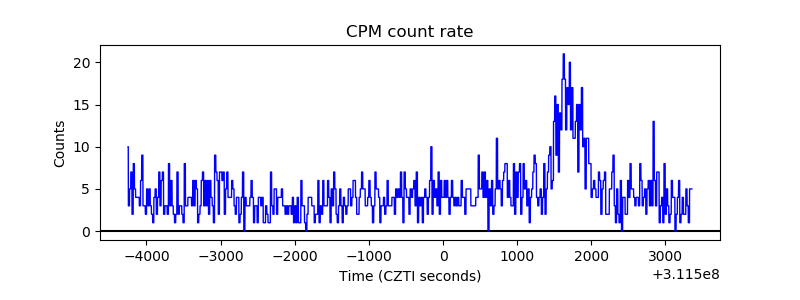

| _CPM_Rate |  |

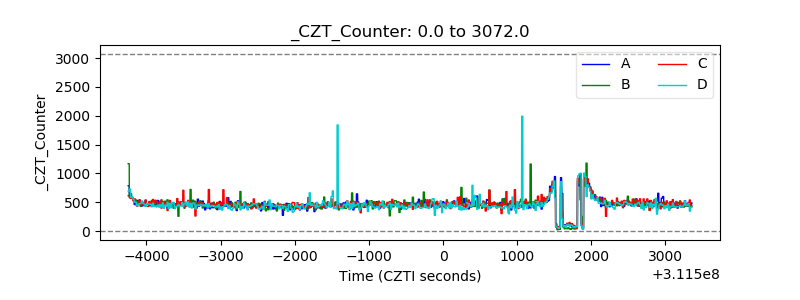

| CZT Counter |  |
| +2.5 Volts monitor |  |

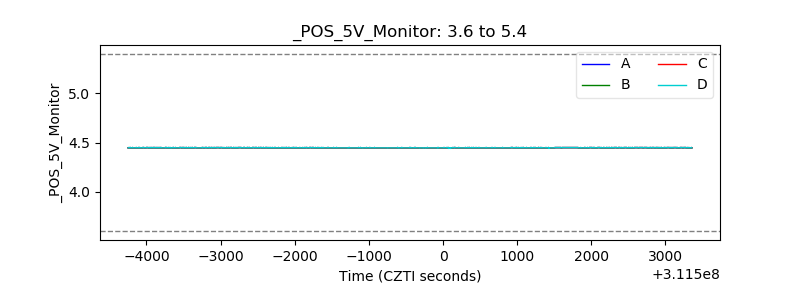

| +5 Volts monitor |  |
