| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T04_9000003310_22367cztM0_level2.evt | modeM0/AS1A07_007T04_9000003310_22367cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,252,160 | 82,745,280 |
| Size | 482.8 MB | 78.9 MB |
| Events in quadrant A | 3,610,295 | 503,194 |
| Events in quadrant B | 3,678,531 | 510,085 |
| Events in quadrant C | 3,578,565 | 489,581 |
| Events in quadrant D | 3,952,203 | 478,175 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15689 | 2 |
| B | 0 | 15743 | 2 |
| C | 0 | 15513 | 2 |
| D | 0 | 16799 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7536 | 158 | 2.096603% |
| B | 7536 | 182 | 2.415074% |
| C | 7536 | 170 | 2.255839% |
| D | 7536 | 116 | 1.539278% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7816 | 7536 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7816 | 7536 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7816 | 7537 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7816 | 7537 | 10 | 10 | 0.13% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 254 | 52363 | 278.04 | 913 | 890 | 185.1 |
| A | 3 | 1 | 38898 | 205.31 | 913 | 890 | 185.1 |
| A | 13 | 254 | 10795 | 53.5 | 913 | 890 | 185.1 |
| B | 0 | 190 | 49373 | 275.28 | 914 | 889 | 176.1 |
| B | 12 | 111 | 21739 | 118.38 | 914 | 889 | 176.1 |
| B | 11 | 111 | 19124 | 103.53 | 914 | 889 | 176.1 |
| C | 14 | 238 | 138144 | 660.29 | 882 | 885 | 207.9 |
| C | 13 | 61 | 6140 | 25.28 | 882 | 885 | 207.9 |
| C | 15 | 78 | 2088 | 5.79 | 882 | 885 | 207.9 |
| D | 1 | 52 | 470126 | 2174.25 | 890 | 864 | 215.8 |
| D | 10 | 103 | 32360 | 145.93 | 890 | 864 | 215.8 |
| D | 2 | 234 | 30684 | 138.17 | 890 | 864 | 215.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

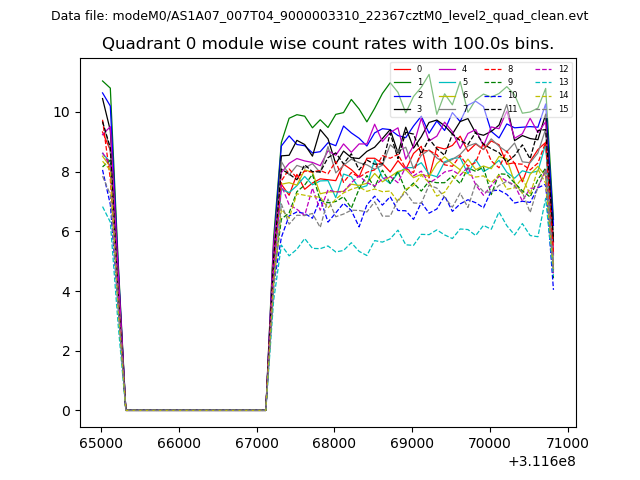

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

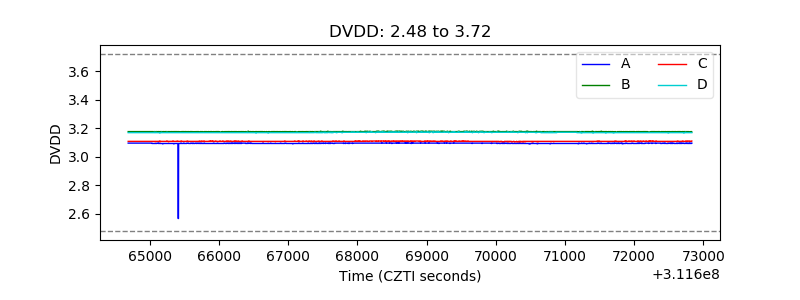

| D_VDD |  |

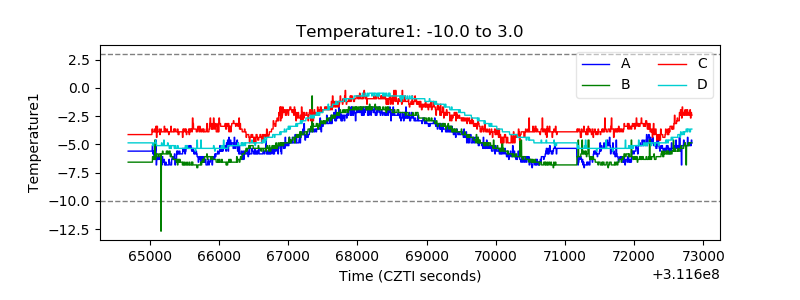

| Temperature 1 |  |

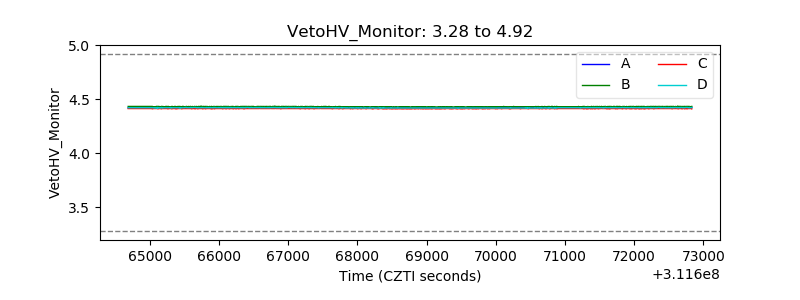

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

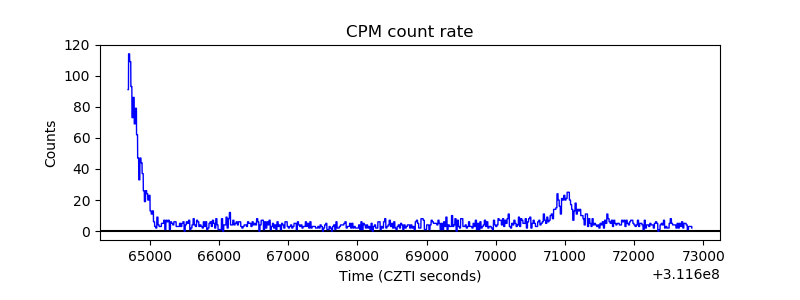

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

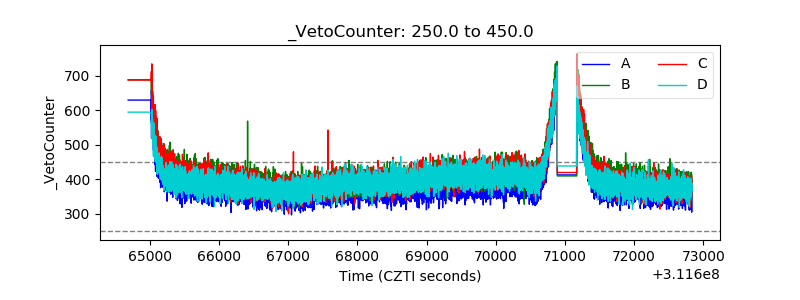

| Veto Counter |  |
