| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T04_9000003310_22371cztM0_level2.evt | modeM0/AS1A07_007T04_9000003310_22371cztM0_level2_quad_clean.evt |
| Size (bytes) | 841,904,640 | 175,901,760 |
| Size | 802.9 MB | 167.8 MB |
| Events in quadrant A | 5,599,677 | 1,149,248 |
| Events in quadrant B | 5,839,745 | 1,161,704 |
| Events in quadrant C | 5,689,942 | 1,108,523 |
| Events in quadrant D | 7,546,295 | 1,069,470 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24740 | 2 |
| B | 0 | 25117 | 2 |
| C | 0 | 24795 | 2 |
| D | 0 | 30537 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 246 | 0 |
| B | 0 | 246 | 0 |
| C | 0 | 246 | 0 |
| D | 0 | 246 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12132 | 108 | 0.890208% |
| B | 12132 | 94 | 0.774810% |
| C | 12132 | 142 | 1.170458% |
| D | 12132 | 488 | 4.022420% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

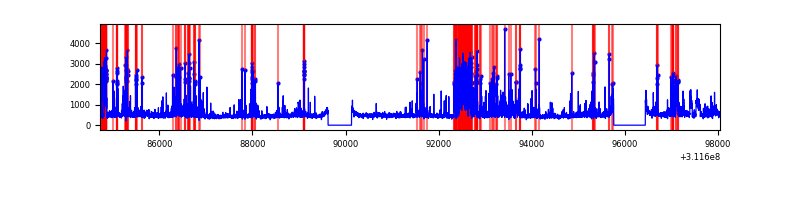

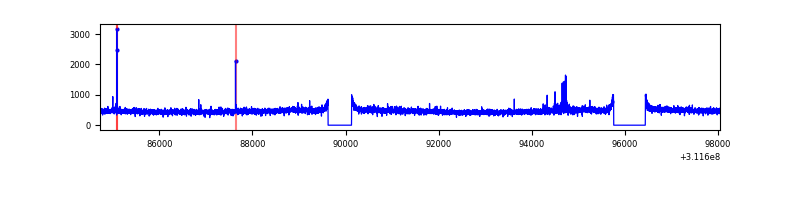

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13317 | 12132 | 0 | 0 | 0.00% | 0.00% |  |
| B | 13317 | 12133 | 0 | 0 | 0.00% | 0.00% |  |
| C | 13317 | 12133 | 3 | 3 | 0.02% | 0.02% |  |
| D | 13317 | 12132 | 337 | 337 | 2.53% | 2.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 30801 | 101.42 | 1445 | 1413 | 289.8 |
| A | 13 | 254 | 17044 | 53.94 | 1445 | 1413 | 289.8 |
| A | 3 | 137 | 12788 | 39.25 | 1445 | 1413 | 289.8 |
| B | 0 | 190 | 127288 | 458.53 | 1437 | 1397 | 274.6 |
| B | 12 | 111 | 34165 | 119.35 | 1437 | 1397 | 274.6 |
| B | 11 | 111 | 29884 | 103.76 | 1437 | 1397 | 274.6 |
| C | 14 | 238 | 216189 | 661.45 | 1387 | 1393 | 324.7 |
| C | 9 | 54 | 48383 | 144.7 | 1387 | 1393 | 324.7 |
| C | 10 | 22 | 15648 | 43.9 | 1387 | 1393 | 324.7 |
| D | 1 | 52 | 1652235 | 4855.0 | 1393 | 1354 | 340.0 |
| D | 7 | 38 | 375259 | 1099.6 | 1393 | 1354 | 340.0 |
| D | 13 | 172 | 199029 | 581.33 | 1393 | 1354 | 340.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

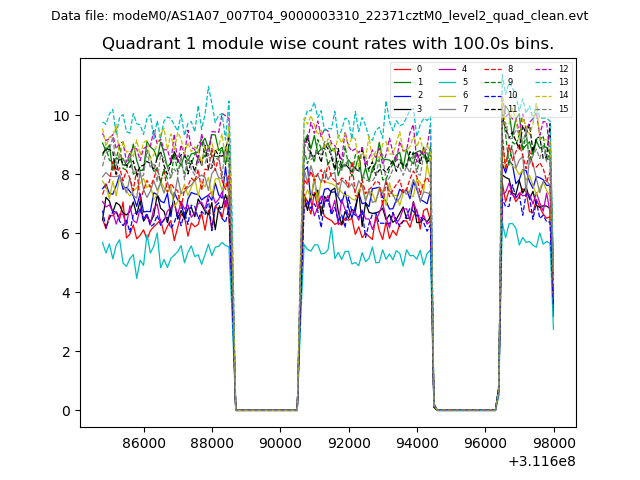

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

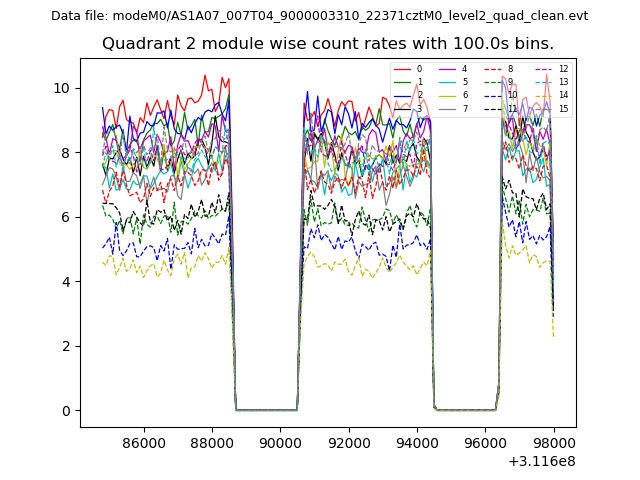

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

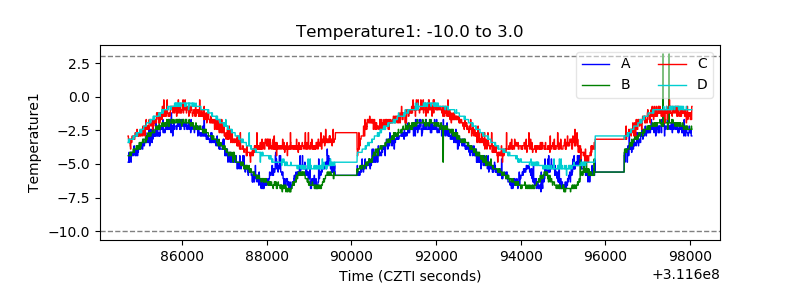

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

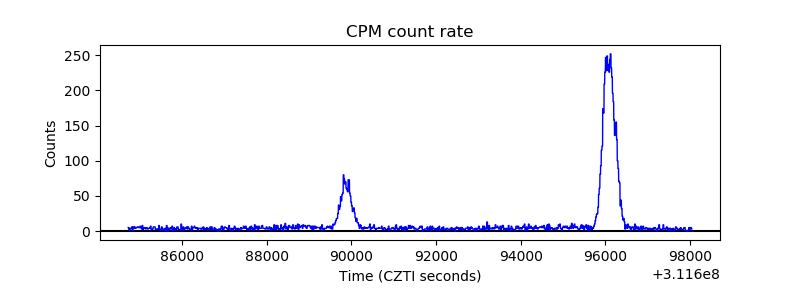

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

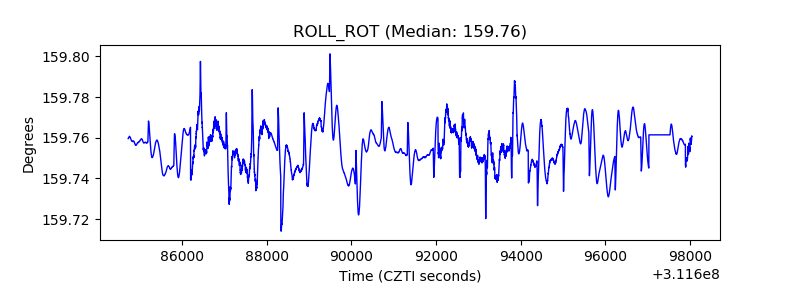

| _ROLL_ROT |  |
| _Roll_DEC |  |

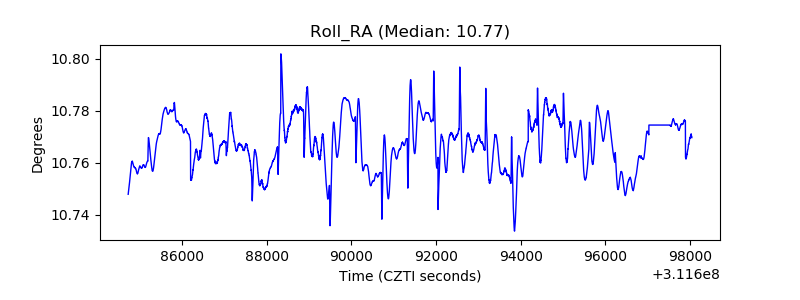

| _Roll_RA |  |
| Veto Counter |  |
