| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T04_9000003310_22376cztM0_level2.evt | modeM0/AS1A07_007T04_9000003310_22376cztM0_level2_quad_clean.evt |
| Size (bytes) | 546,177,600 | 95,598,720 |
| Size | 520.9 MB | 91.2 MB |
| Events in quadrant A | 3,059,540 | 646,822 |
| Events in quadrant B | 3,173,250 | 660,670 |
| Events in quadrant C | 3,203,042 | 629,514 |
| Events in quadrant D | 6,687,024 | 527,239 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13137 | 2 |
| B | 0 | 13433 | 2 |
| C | 0 | 13458 | 2 |
| D | 0 | 24237 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6165 | 41 | 0.665045% |
| B | 6165 | 43 | 0.697486% |
| C | 6165 | 85 | 1.378751% |
| D | 6165 | 1088 | 17.648013% |

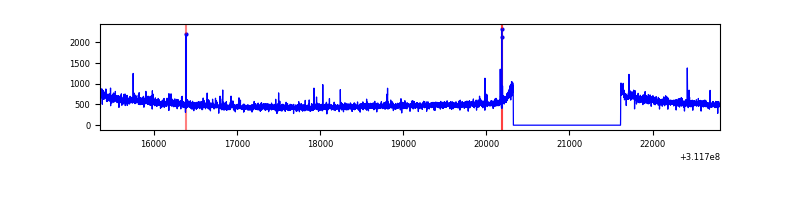

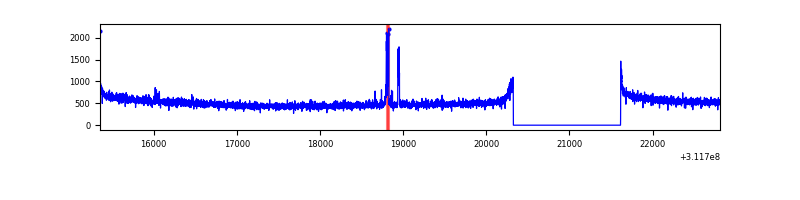

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7455 | 6166 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7455 | 6165 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7455 | 6165 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7454 | 6164 | 1050 | 1050 | 14.09% | 17.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9532 | 55.37 | 792 | 777 | 158.1 |
| A | 0 | 226 | 6772 | 37.92 | 792 | 777 | 158.1 |
| A | 3 | 137 | 6206 | 34.34 | 792 | 777 | 158.1 |
| B | 0 | 245 | 19264 | 124.45 | 794 | 774 | 148.6 |
| B | 3 | 64 | 17268 | 111.02 | 794 | 774 | 148.6 |
| B | 12 | 111 | 16745 | 107.5 | 794 | 774 | 148.6 |
| C | 14 | 238 | 121870 | 676.61 | 771 | 777 | 179.0 |
| C | 9 | 54 | 56899 | 313.58 | 771 | 777 | 179.0 |
| C | 0 | 10 | 15075 | 79.89 | 771 | 777 | 179.0 |
| D | 1 | 52 | 3855632 | 23324.83 | 694 | 677 | 165.3 |
| D | 7 | 38 | 75180 | 450.79 | 694 | 677 | 165.3 |
| D | 5 | 32 | 44221 | 263.47 | 694 | 677 | 165.3 |

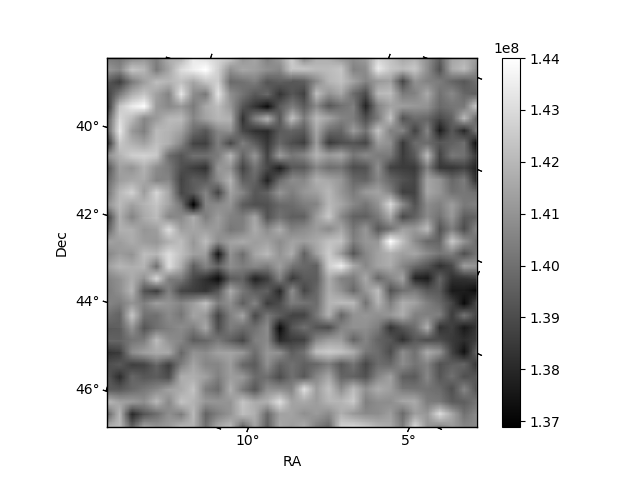

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

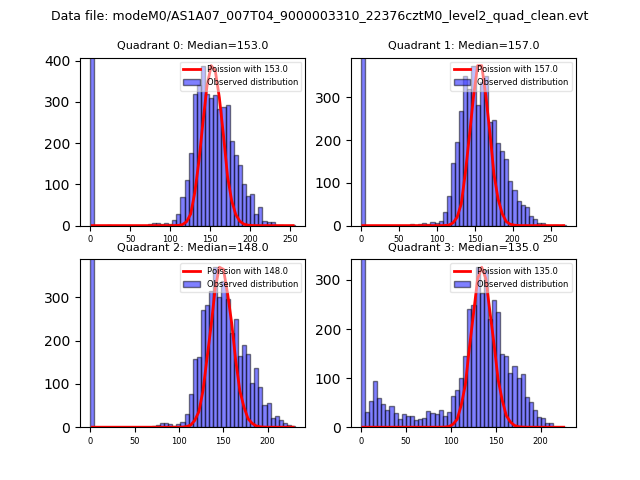

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

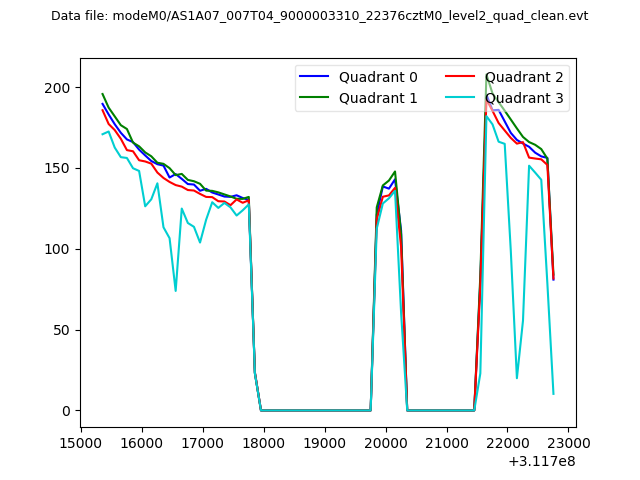

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

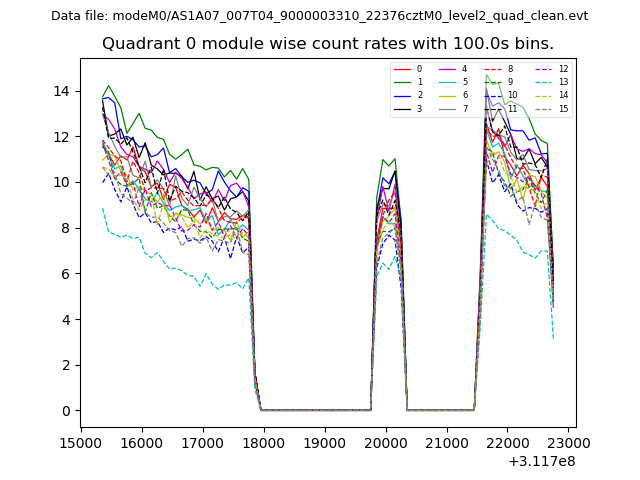

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

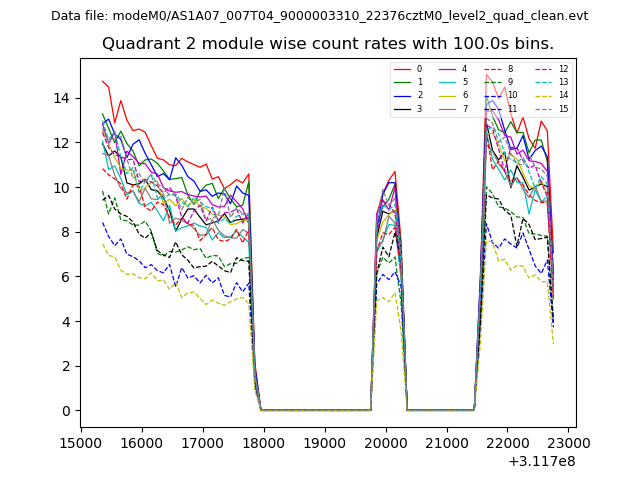

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

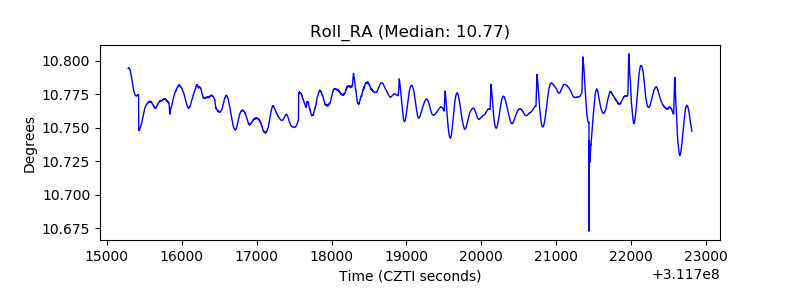

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
