| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T04_9000003310_22378cztM0_level2.evt | modeM0/AS1A07_007T04_9000003310_22378cztM0_level2_quad_clean.evt |
| Size (bytes) | 638,726,400 | 91,152,000 |
| Size | 609.1 MB | 86.9 MB |
| Events in quadrant A | 3,054,552 | 638,048 |
| Events in quadrant B | 3,203,769 | 658,490 |
| Events in quadrant C | 3,123,781 | 621,977 |
| Events in quadrant D | 9,550,122 | 416,634 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12763 | 2 |
| B | 0 | 13214 | 2 |
| C | 0 | 12947 | 2 |
| D | 0 | 32444 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6083 | 18 | 0.295907% |
| B | 6083 | 32 | 0.526056% |
| C | 6082 | 53 | 0.871424% |
| D | 6082 | 2644 | 43.472542% |

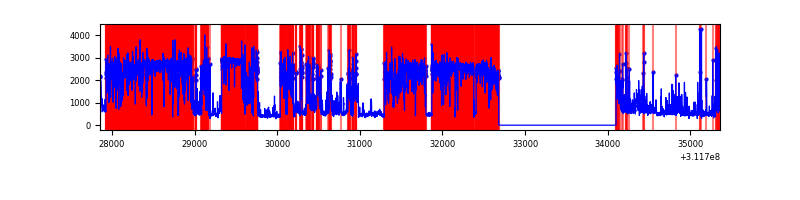

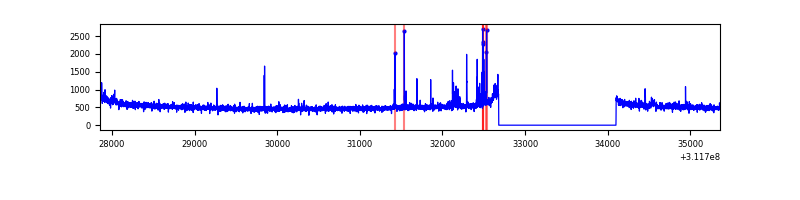

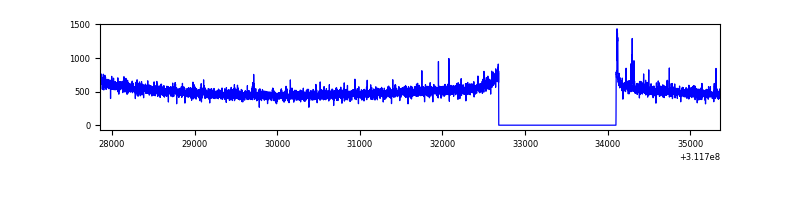

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7503 | 6084 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7503 | 6084 | 7 | 7 | 0.09% | 0.12% |  |
| C | 7502 | 6083 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7502 | 6082 | 2600 | 2600 | 34.66% | 42.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 36832 | 232.05 | 782 | 769 | 155.4 |
| A | 13 | 254 | 9697 | 57.45 | 782 | 769 | 155.4 |
| A | 0 | 226 | 6648 | 37.83 | 782 | 769 | 155.4 |
| B | 3 | 64 | 58414 | 394.98 | 792 | 774 | 145.9 |
| B | 12 | 111 | 17229 | 112.76 | 792 | 774 | 145.9 |
| B | 11 | 111 | 14641 | 95.02 | 792 | 774 | 145.9 |
| C | 14 | 238 | 122803 | 694.93 | 762 | 770 | 175.6 |
| C | 0 | 10 | 16312 | 88.51 | 762 | 770 | 175.6 |
| C | 10 | 22 | 8892 | 46.25 | 762 | 770 | 175.6 |
| D | 1 | 52 | 7080387 | 48481.68 | 608 | 591 | 146.0 |
| D | 7 | 38 | 100113 | 681.52 | 608 | 591 | 146.0 |
| D | 13 | 172 | 51633 | 349.53 | 608 | 591 | 146.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

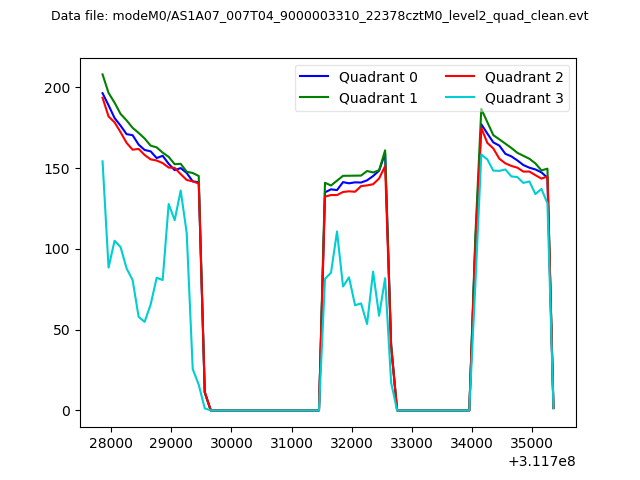

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

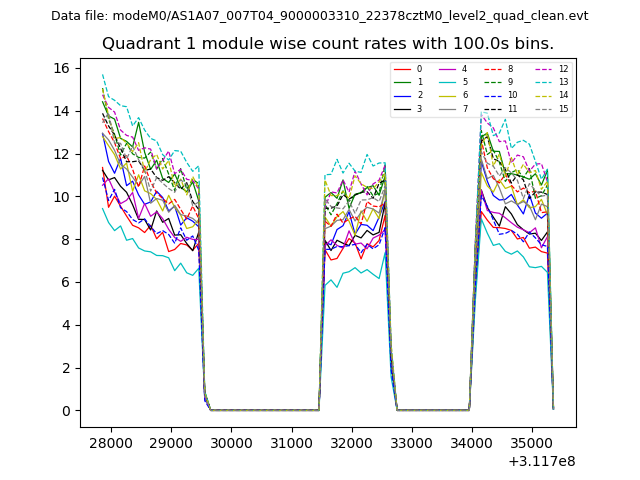

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

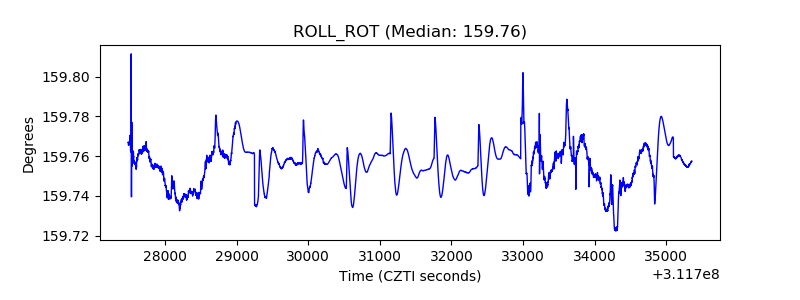

| _ROLL_ROT |  |

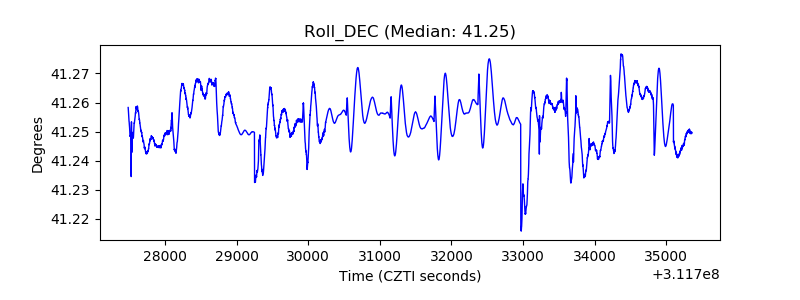

| _Roll_DEC |  |
| _Roll_RA |  |

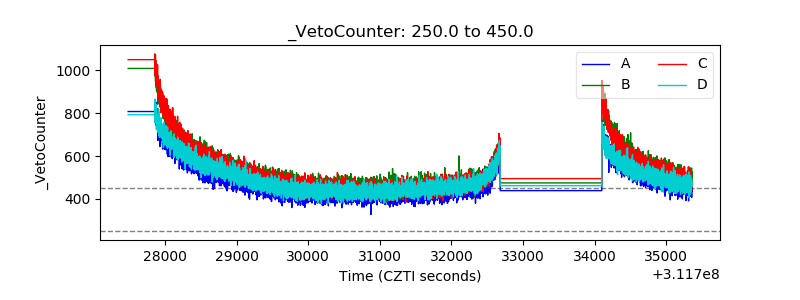

| Veto Counter |  |
