| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T04_9000003310_22379cztM0_level2.evt | modeM0/AS1A07_007T04_9000003310_22379cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,795,840 | 88,145,280 |
| Size | 449.9 MB | 84.1 MB |
| Events in quadrant A | 3,014,655 | 569,753 |
| Events in quadrant B | 3,133,715 | 590,757 |
| Events in quadrant C | 3,069,813 | 555,119 |
| Events in quadrant D | 4,651,862 | 523,379 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12828 | 2 |
| B | 0 | 13078 | 2 |
| C | 0 | 12882 | 2 |
| D | 0 | 18040 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6166 | 23 | 0.373013% |
| B | 6166 | 28 | 0.454103% |
| C | 6166 | 64 | 1.037950% |
| D | 6166 | 387 | 6.276354% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7481 | 6167 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7481 | 6167 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7481 | 6167 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7481 | 6167 | 365 | 365 | 4.88% | 5.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 22880 | 144.17 | 776 | 761 | 153.4 |
| A | 13 | 254 | 9316 | 55.76 | 776 | 761 | 153.4 |
| A | 0 | 226 | 6606 | 38.1 | 776 | 761 | 153.4 |
| B | 0 | 190 | 20621 | 135.74 | 784 | 764 | 146.3 |
| B | 3 | 64 | 18804 | 123.32 | 784 | 764 | 146.3 |
| B | 12 | 111 | 17329 | 113.23 | 784 | 764 | 146.3 |
| C | 14 | 238 | 122372 | 695.5 | 753 | 760 | 174.9 |
| C | 0 | 10 | 13436 | 72.49 | 753 | 760 | 174.9 |
| C | 13 | 61 | 5205 | 25.42 | 753 | 760 | 174.9 |
| D | 1 | 52 | 1702467 | 9647.36 | 734 | 714 | 176.4 |
| D | 7 | 38 | 89638 | 504.12 | 734 | 714 | 176.4 |
| D | 13 | 172 | 42751 | 238.31 | 734 | 714 | 176.4 |

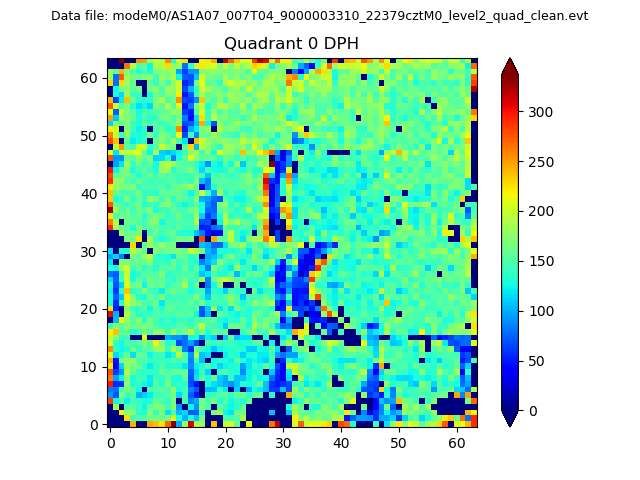

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

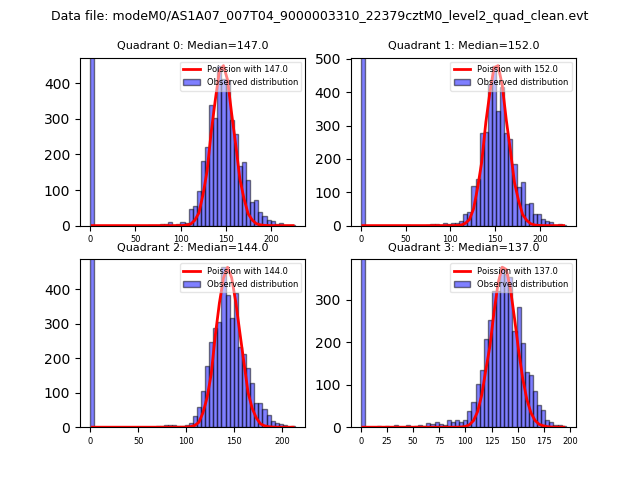

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

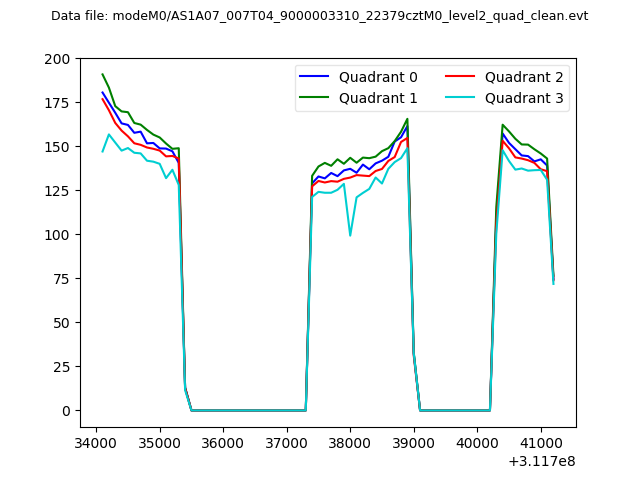

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

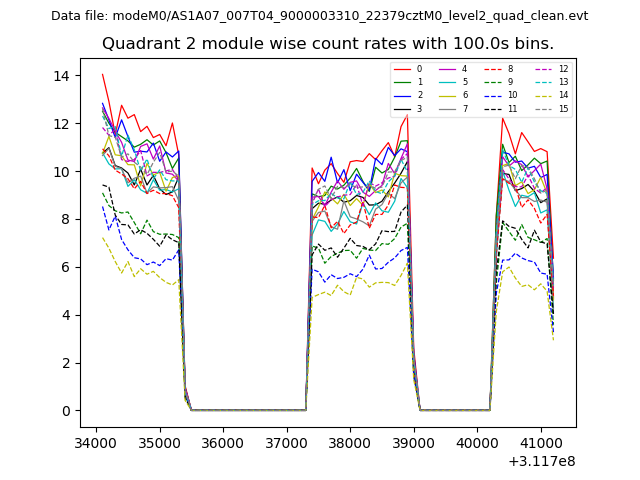

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

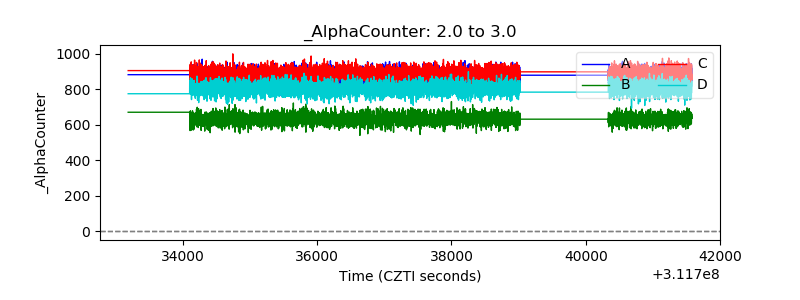

| Alpha Counter |  |

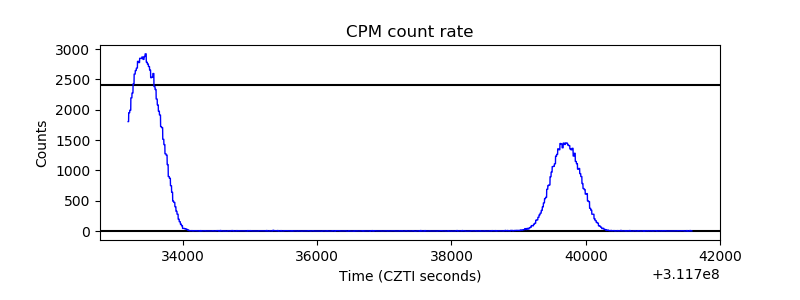

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

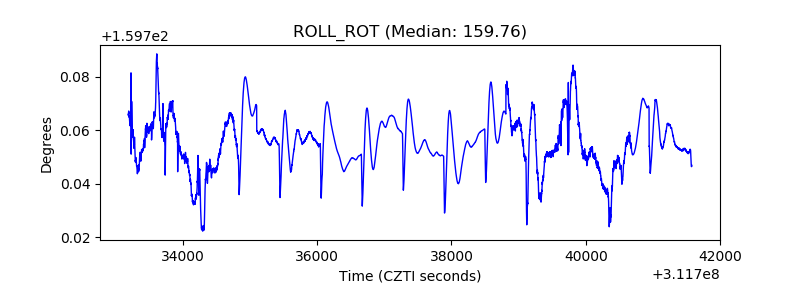

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
