| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T04_9000003310_22382cztM0_level2.evt | modeM0/AS1A07_007T04_9000003310_22382cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,675,200 | 97,346,880 |
| Size | 573.8 MB | 92.8 MB |
| Events in quadrant A | 3,959,537 | 608,617 |
| Events in quadrant B | 4,114,505 | 616,366 |
| Events in quadrant C | 4,064,828 | 590,689 |
| Events in quadrant D | 5,516,094 | 552,051 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17333 | 3 |
| B | 0 | 17604 | 4 |
| C | 0 | 17474 | 3 |
| D | 0 | 22227 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8341 | 285 | 3.416856% |
| B | 8340 | 348 | 4.172662% |
| C | 8341 | 331 | 3.968349% |
| D | 8341 | 661 | 7.924709% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8996 | 8344 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8995 | 8343 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8996 | 8345 | 2 | 2 | 0.02% | 0.02% |  |
| D | 8996 | 8345 | 435 | 435 | 4.84% | 5.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11288 | 49.49 | 1027 | 1000 | 207.9 |
| A | 3 | 137 | 9282 | 39.84 | 1027 | 1000 | 207.9 |
| A | 0 | 226 | 8764 | 37.35 | 1027 | 1000 | 207.9 |
| B | 0 | 245 | 45805 | 226.05 | 1027 | 997 | 198.2 |
| B | 12 | 111 | 24667 | 119.41 | 1027 | 997 | 198.2 |
| B | 11 | 111 | 21991 | 105.91 | 1027 | 997 | 198.2 |
| C | 14 | 238 | 154897 | 662.82 | 994 | 999 | 232.2 |
| C | 10 | 22 | 32224 | 134.48 | 994 | 999 | 232.2 |
| C | 13 | 61 | 7043 | 26.03 | 994 | 999 | 232.2 |
| D | 1 | 52 | 1654445 | 6971.8 | 984 | 955 | 237.2 |
| D | 7 | 38 | 89389 | 372.87 | 984 | 955 | 237.2 |
| D | 2 | 234 | 34928 | 143.24 | 984 | 955 | 237.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

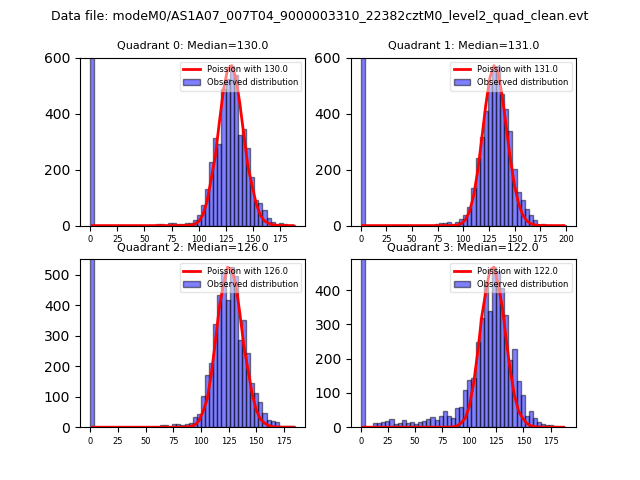

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

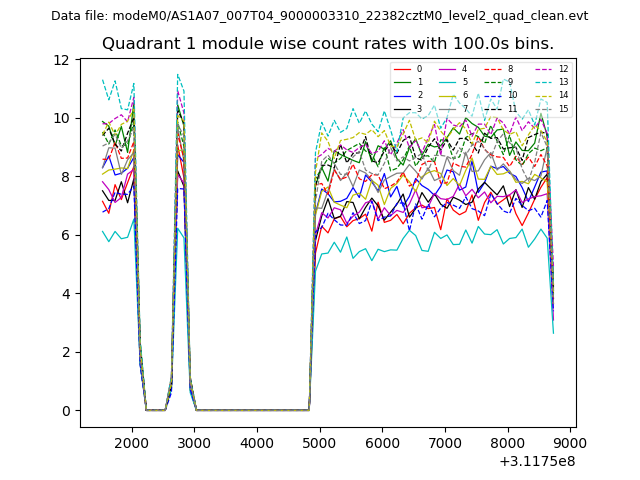

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
