| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T04_9000003310_22386cztM0_level2.evt | modeM0/AS1A07_007T04_9000003310_22386cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,349,164,800 | 250,387,200 |
| Size | 1.3 GB | 238.8 MB |
| Events in quadrant A | 8,793,081 | 1,613,360 |
| Events in quadrant B | 9,157,307 | 1,621,539 |
| Events in quadrant C | 8,848,911 | 1,558,000 |
| Events in quadrant D | 12,780,671 | 1,486,759 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38763 | 4 |
| B | 0 | 39473 | 4 |
| C | 0 | 38698 | 4 |
| D | 0 | 50437 | 8 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 386 | 0 |
| B | 0 | 386 | 0 |
| C | 0 | 386 | 0 |
| D | 0 | 386 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18927 | 321 | 1.695990% |
| B | 18928 | 367 | 1.938926% |
| C | 18928 | 385 | 2.034024% |
| D | 18927 | 942 | 4.977017% |

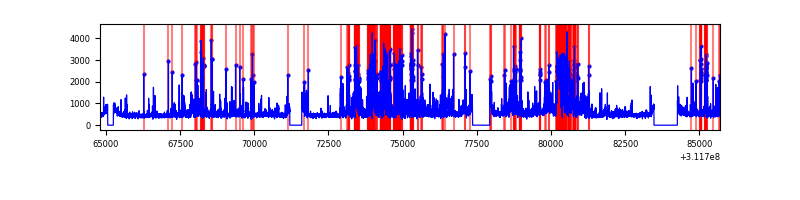

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20897 | 18929 | 0 | 0 | 0.00% | 0.00% |  |
| B | 20898 | 18930 | 8 | 8 | 0.04% | 0.04% |  |
| C | 20898 | 18931 | 0 | 0 | 0.00% | 0.00% |  |
| D | 20897 | 18928 | 626 | 626 | 3.00% | 3.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 40473 | 83.87 | 2270 | 2215 | 456.2 |
| A | 13 | 254 | 26005 | 52.15 | 2270 | 2215 | 456.2 |
| A | 3 | 137 | 20062 | 39.12 | 2270 | 2215 | 456.2 |
| B | 3 | 64 | 140152 | 321.42 | 2259 | 2197 | 429.2 |
| B | 0 | 190 | 82369 | 186.79 | 2259 | 2197 | 429.2 |
| B | 12 | 111 | 53237 | 118.92 | 2259 | 2197 | 429.2 |
| C | 14 | 238 | 341499 | 667.29 | 2180 | 2189 | 508.5 |
| C | 13 | 61 | 15274 | 25.73 | 2180 | 2189 | 508.5 |
| C | 10 | 22 | 10775 | 16.89 | 2180 | 2189 | 508.5 |
| D | 1 | 52 | 3509786 | 6606.04 | 2182 | 2111 | 531.0 |
| D | 7 | 38 | 746068 | 1401.1 | 2182 | 2111 | 531.0 |
| D | 2 | 136 | 127318 | 235.8 | 2182 | 2111 | 531.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

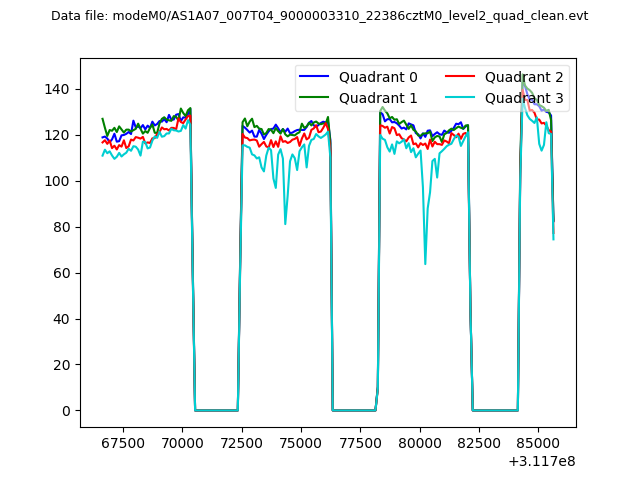

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

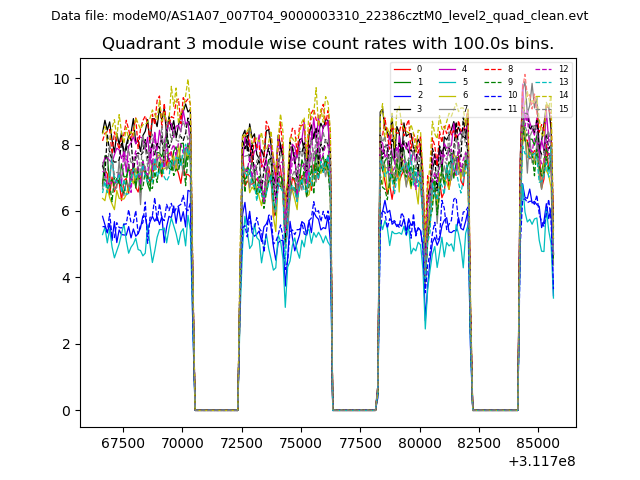

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

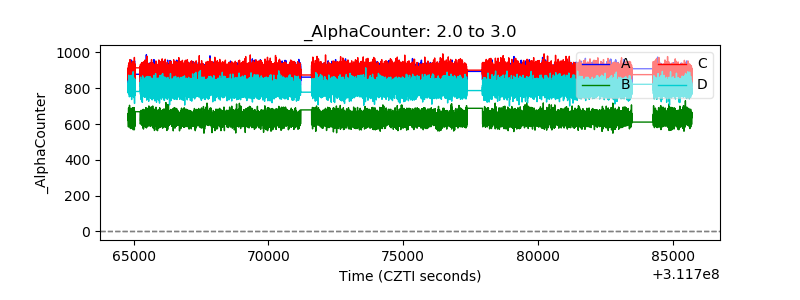

| Alpha Counter |  |
| _CPM_Rate |  |

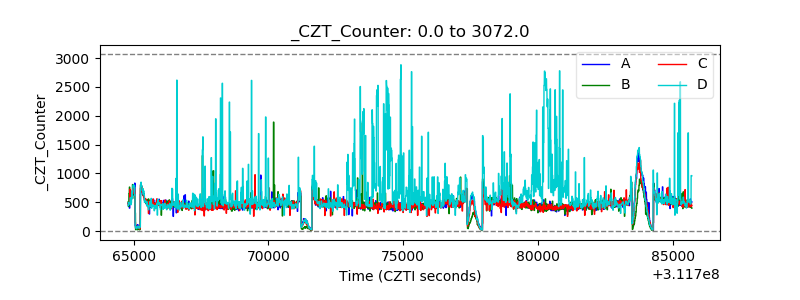

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

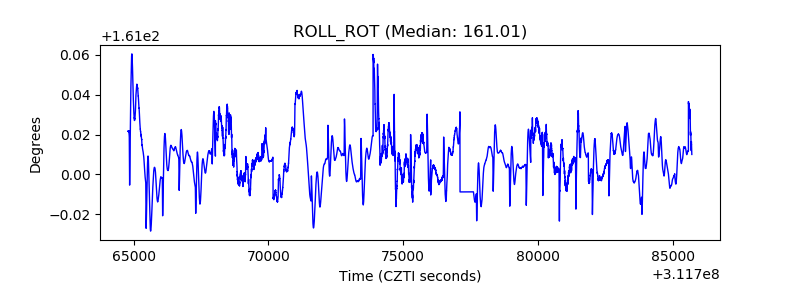

| _ROLL_ROT |  |
| _Roll_DEC |  |

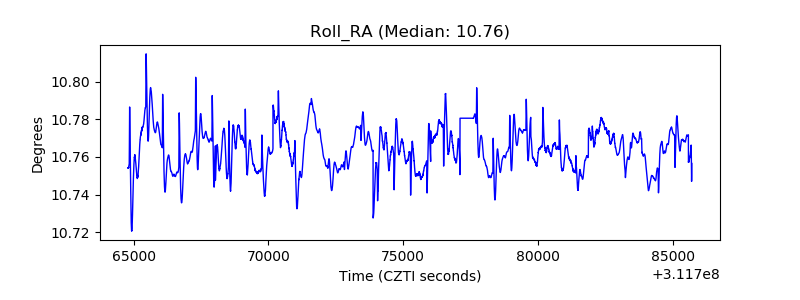

| _Roll_RA |  |

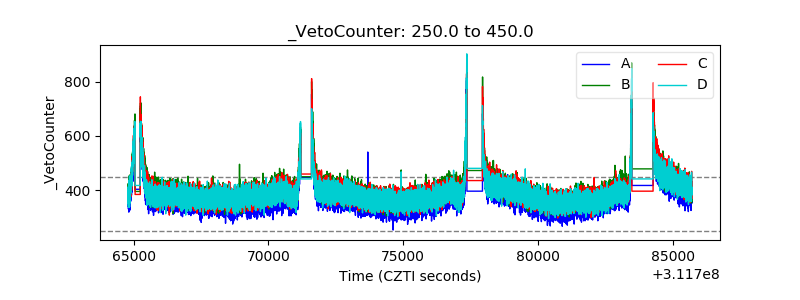

| Veto Counter |  |
