| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T04_9000003310_22392cztM0_level2.evt | modeM0/AS1A07_007T04_9000003310_22392cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,414,720 | 99,708,480 |
| Size | 438.1 MB | 95.1 MB |
| Events in quadrant A | 3,080,337 | 659,791 |
| Events in quadrant B | 3,235,926 | 684,830 |
| Events in quadrant C | 3,176,671 | 647,915 |
| Events in quadrant D | 4,000,888 | 595,806 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12989 | 2 |
| B | 0 | 13400 | 3 |
| C | 0 | 13213 | 2 |
| D | 0 | 15925 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6176 | 9 | 0.145725% |
| B | 6175 | 26 | 0.421053% |
| C | 6175 | 42 | 0.680162% |
| D | 6175 | 257 | 4.161943% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7606 | 6177 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7605 | 6176 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7605 | 6176 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7605 | 6176 | 225 | 225 | 2.96% | 3.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8521 | 48.88 | 799 | 785 | 158.2 |
| A | 0 | 226 | 6973 | 39.1 | 799 | 785 | 158.2 |
| A | 3 | 137 | 6343 | 35.12 | 799 | 785 | 158.2 |
| B | 3 | 64 | 19531 | 125.47 | 809 | 792 | 149.4 |
| B | 12 | 111 | 16952 | 108.2 | 809 | 792 | 149.4 |
| B | 0 | 190 | 16441 | 104.78 | 809 | 792 | 149.4 |
| C | 14 | 238 | 124397 | 681.56 | 781 | 788 | 181.4 |
| C | 0 | 10 | 6502 | 31.51 | 781 | 788 | 181.4 |
| C | 13 | 61 | 5429 | 25.59 | 781 | 788 | 181.4 |
| D | 7 | 38 | 574632 | 3140.45 | 761 | 742 | 182.7 |
| D | 12 | 227 | 272738 | 1488.42 | 761 | 742 | 182.7 |
| D | 1 | 52 | 197723 | 1077.92 | 761 | 742 | 182.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

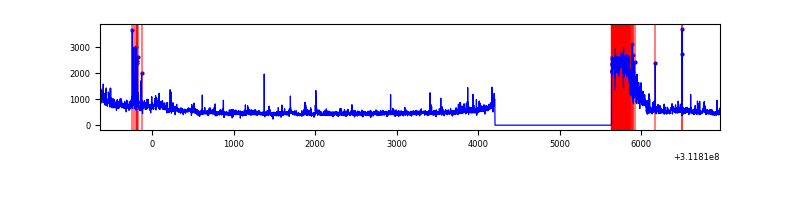

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

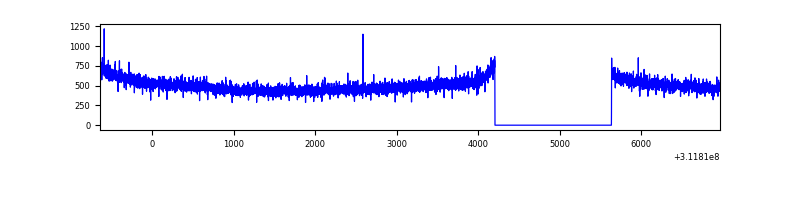

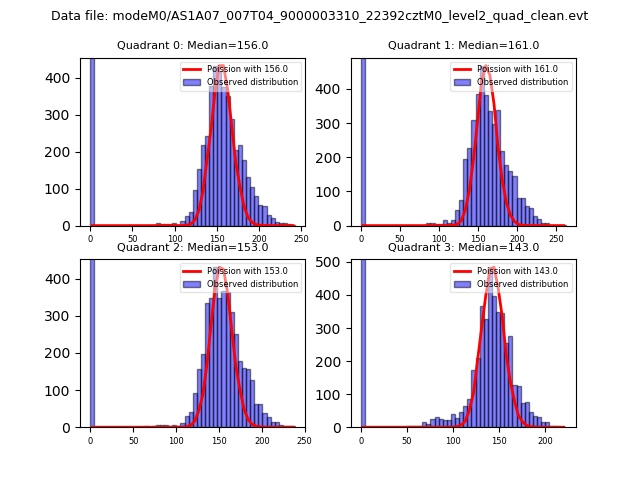

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

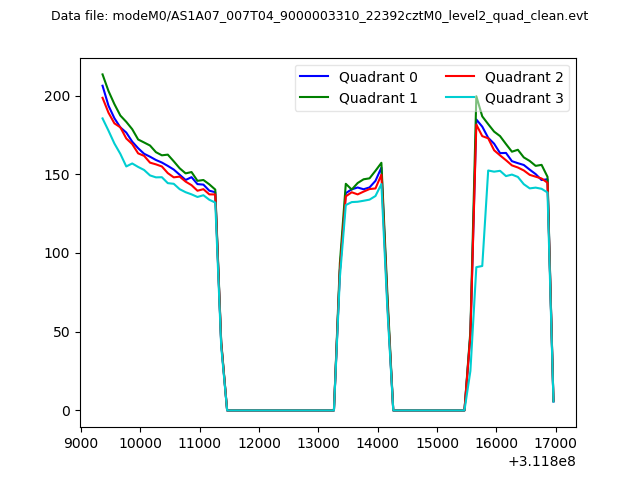

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

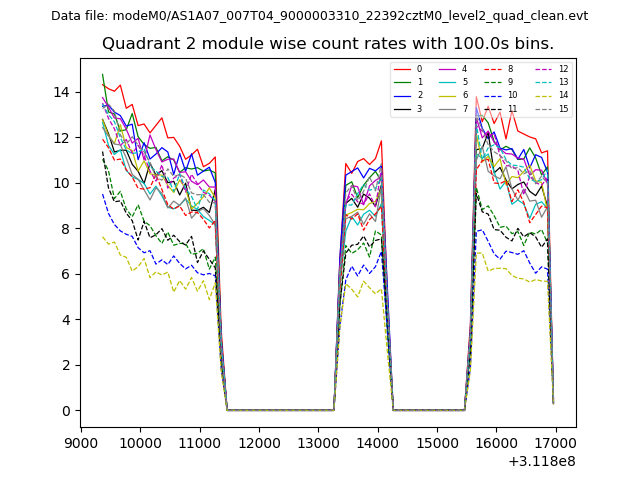

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

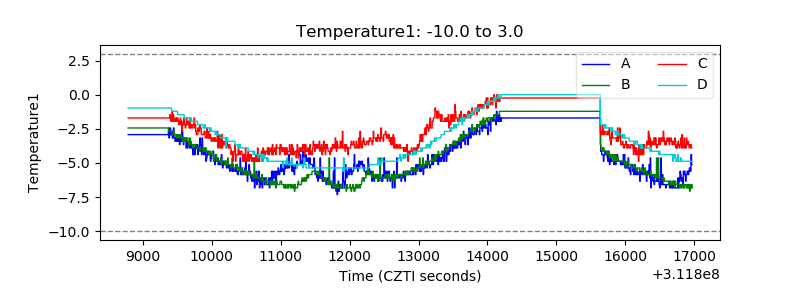

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

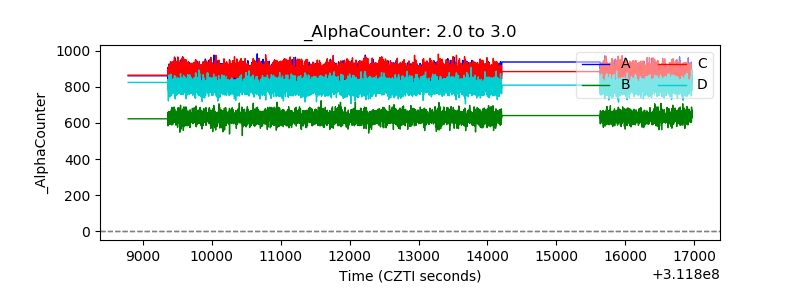

| Alpha Counter |  |

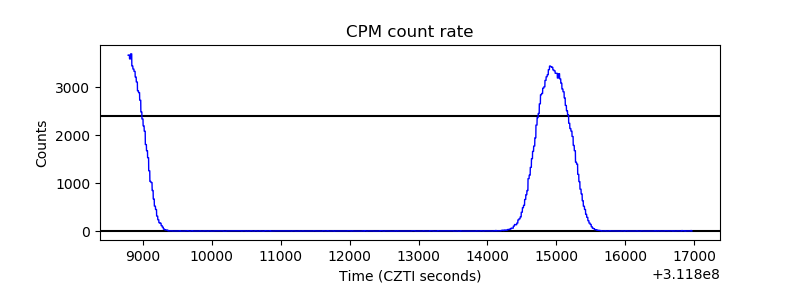

| _CPM_Rate |  |

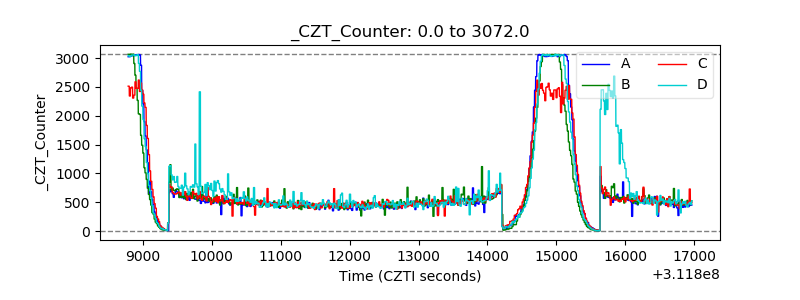

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

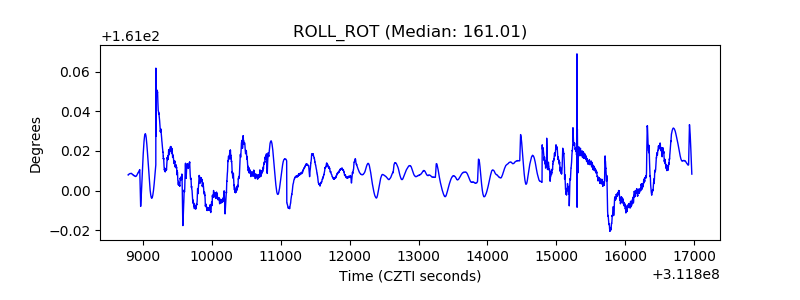

| _ROLL_ROT |  |

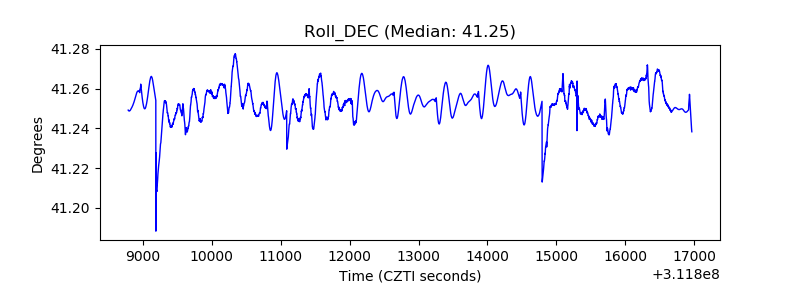

| _Roll_DEC |  |

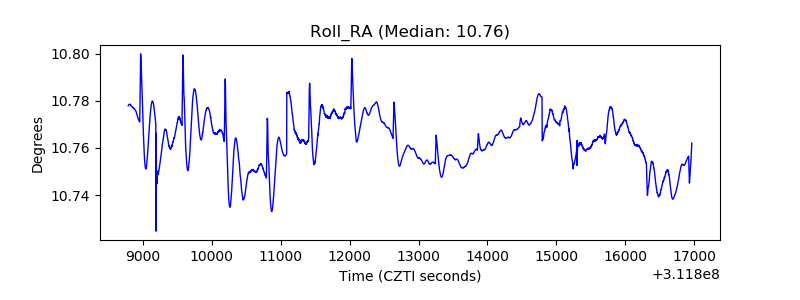

| _Roll_RA |  |
| Veto Counter |  |
