| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T04_9000003310_22396cztM0_level2.evt | modeM0/AS1A07_007T04_9000003310_22396cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,308,480 | 84,093,120 |
| Size | 476.2 MB | 80.2 MB |
| Events in quadrant A | 3,490,760 | 514,376 |
| Events in quadrant B | 3,759,537 | 520,385 |
| Events in quadrant C | 3,548,559 | 500,523 |
| Events in quadrant D | 3,811,046 | 487,515 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15430 | 2 |
| B | 0 | 16049 | 2 |
| C | 0 | 15443 | 2 |
| D | 0 | 16496 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7527 | 106 | 1.408264% |
| B | 7527 | 189 | 2.510961% |
| C | 7527 | 151 | 2.006111% |
| D | 7527 | 114 | 1.514548% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7877 | 7528 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7877 | 7528 | 57 | 57 | 0.72% | 0.76% |  |
| C | 7877 | 7528 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7877 | 7528 | 33 | 33 | 0.42% | 0.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11026 | 55.0 | 904 | 882 | 184.4 |
| A | 3 | 137 | 7854 | 37.8 | 904 | 882 | 184.4 |
| A | 0 | 226 | 7505 | 35.91 | 904 | 882 | 184.4 |
| B | 3 | 64 | 183061 | 1052.12 | 901 | 876 | 173.2 |
| B | 12 | 111 | 21699 | 120.25 | 901 | 876 | 173.2 |
| B | 11 | 111 | 18593 | 102.32 | 901 | 876 | 173.2 |
| C | 14 | 238 | 138580 | 672.48 | 873 | 879 | 204.8 |
| C | 13 | 61 | 6033 | 25.17 | 873 | 879 | 204.8 |
| C | 8 | 208 | 3304 | 11.84 | 873 | 879 | 204.8 |
| D | 1 | 52 | 249121 | 1172.75 | 878 | 854 | 211.7 |
| D | 7 | 38 | 64815 | 302.14 | 878 | 854 | 211.7 |
| D | 2 | 136 | 58958 | 274.47 | 878 | 854 | 211.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

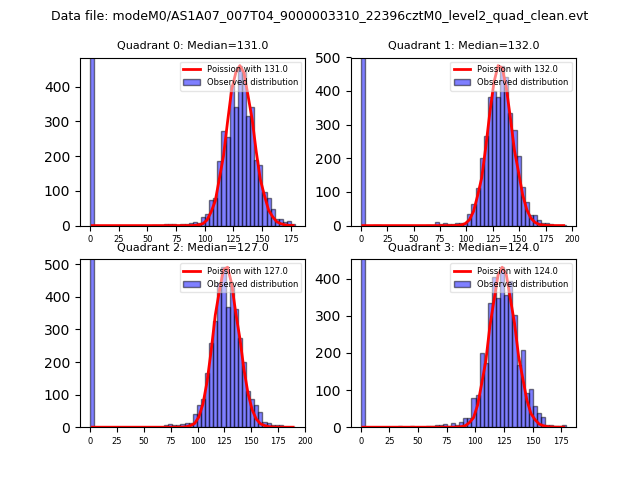

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

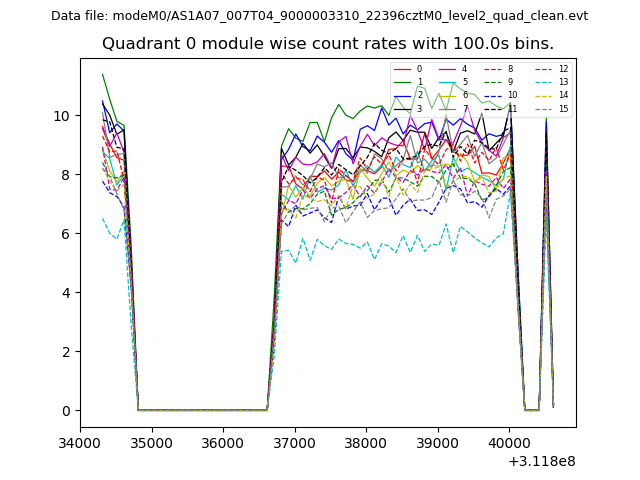

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
