| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T04_9000003310_22400cztM0_level2.evt | modeM0/AS1A07_007T04_9000003310_22400cztM0_level2_quad_clean.evt |
| Size (bytes) | 919,270,080 | 173,568,960 |
| Size | 876.7 MB | 165.5 MB |
| Events in quadrant A | 6,205,873 | 1,106,729 |
| Events in quadrant B | 6,439,698 | 1,118,491 |
| Events in quadrant C | 6,258,624 | 1,069,037 |
| Events in quadrant D | 8,030,297 | 1,038,624 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27276 | 3 |
| B | 0 | 27673 | 3 |
| C | 0 | 27206 | 3 |
| D | 0 | 32560 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 274 | 0 |
| B | 0 | 274 | 0 |
| C | 0 | 274 | 0 |
| D | 0 | 274 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13373 | 200 | 1.495551% |
| B | 13374 | 239 | 1.787049% |
| C | 13374 | 227 | 1.697323% |
| D | 13374 | 401 | 2.998355% |

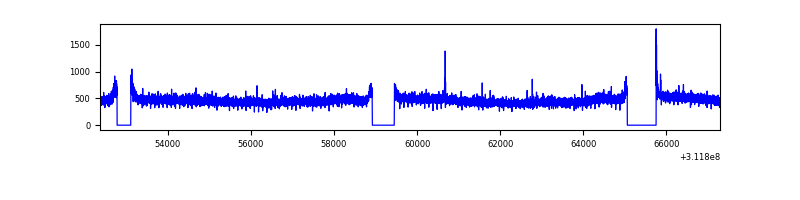

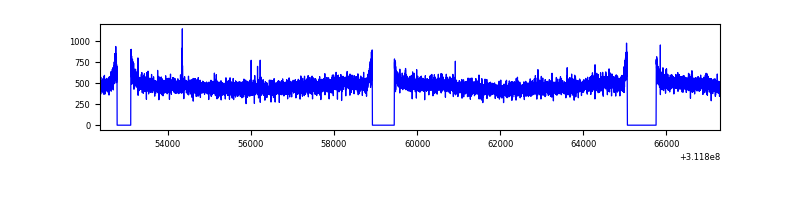

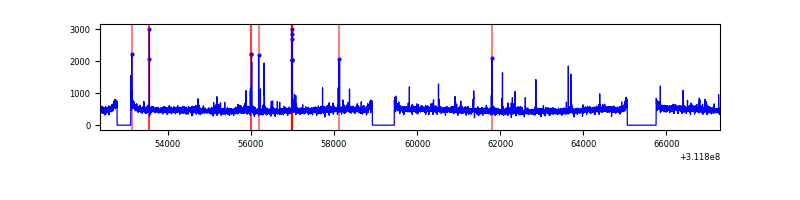

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

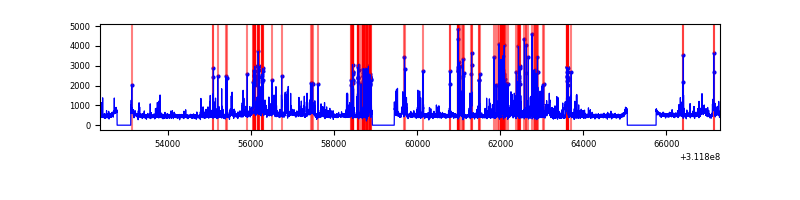

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14928 | 13373 | 0 | 0 | 0.00% | 0.00% |  |
| B | 14929 | 13375 | 14 | 14 | 0.09% | 0.10% |  |
| C | 14929 | 13376 | 0 | 0 | 0.00% | 0.00% |  |
| D | 14929 | 13375 | 202 | 202 | 1.35% | 1.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 19037 | 54.44 | 1602 | 1570 | 320.9 |
| A | 15 | 48 | 18240 | 51.95 | 1602 | 1570 | 320.9 |
| A | 3 | 137 | 13941 | 38.55 | 1602 | 1570 | 320.9 |
| B | 3 | 64 | 84540 | 273.07 | 1594 | 1551 | 303.9 |
| B | 12 | 111 | 37907 | 119.63 | 1594 | 1551 | 303.9 |
| B | 11 | 111 | 33618 | 105.51 | 1594 | 1551 | 303.9 |
| C | 14 | 238 | 242180 | 669.61 | 1537 | 1543 | 359.4 |
| C | 8 | 128 | 13079 | 32.1 | 1537 | 1543 | 359.4 |
| C | 13 | 61 | 10873 | 25.96 | 1537 | 1543 | 359.4 |
| D | 1 | 52 | 1079648 | 2855.31 | 1550 | 1505 | 377.6 |
| D | 13 | 172 | 463866 | 1224.5 | 1550 | 1505 | 377.6 |
| D | 12 | 227 | 179560 | 471.55 | 1550 | 1505 | 377.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

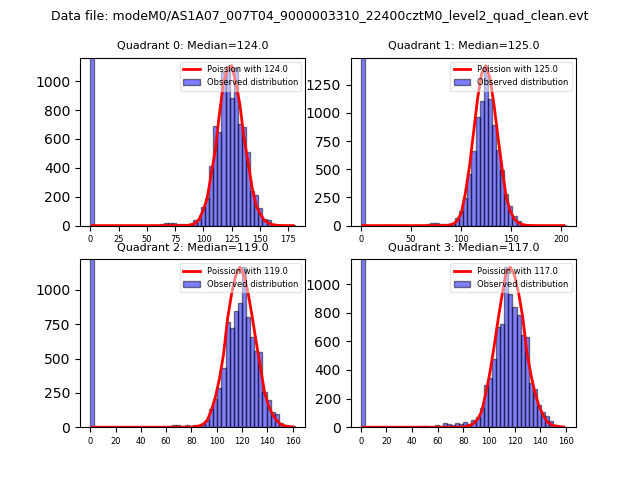

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

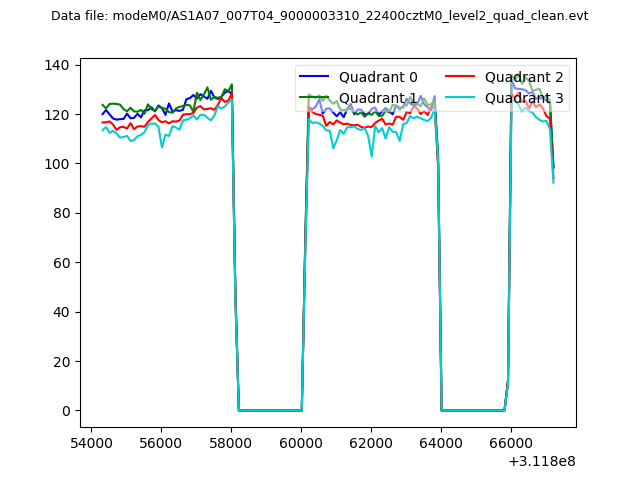

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

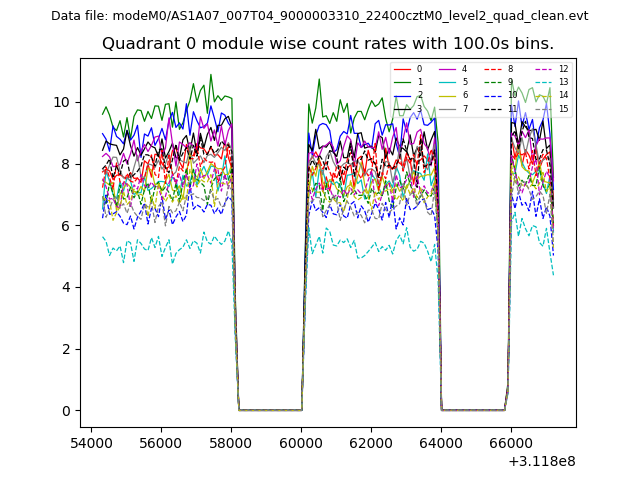

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

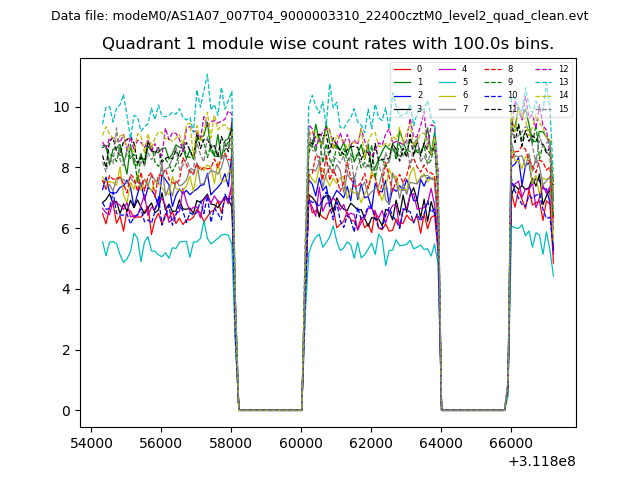

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

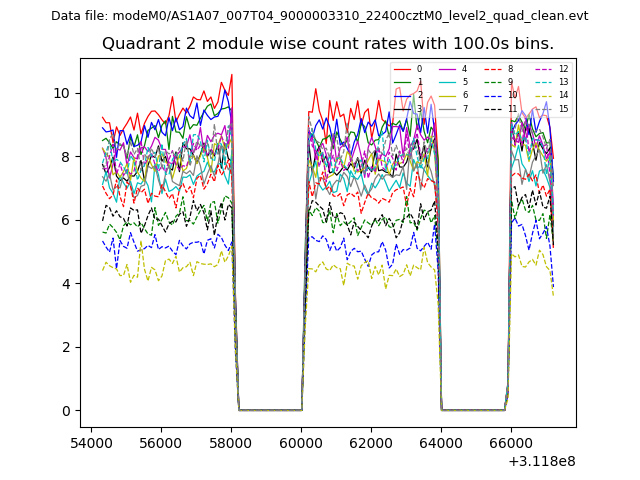

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

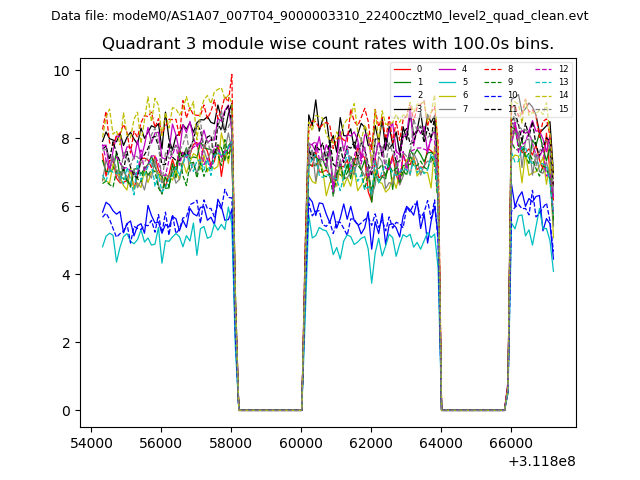

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

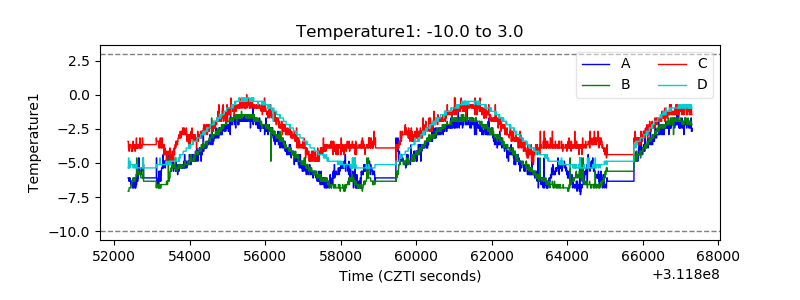

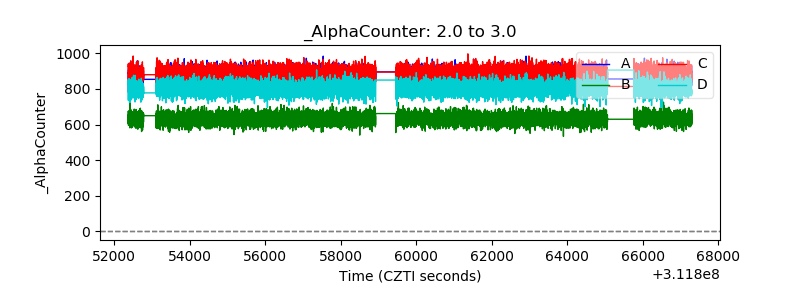

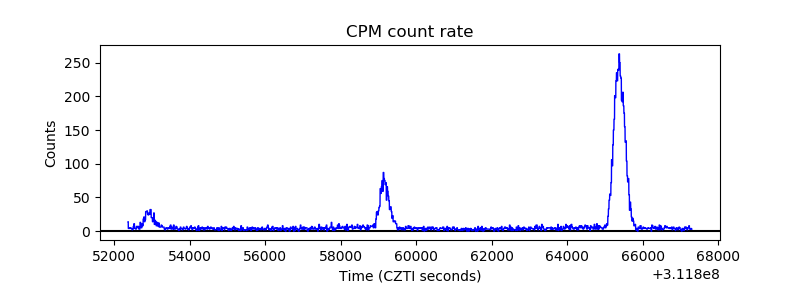

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

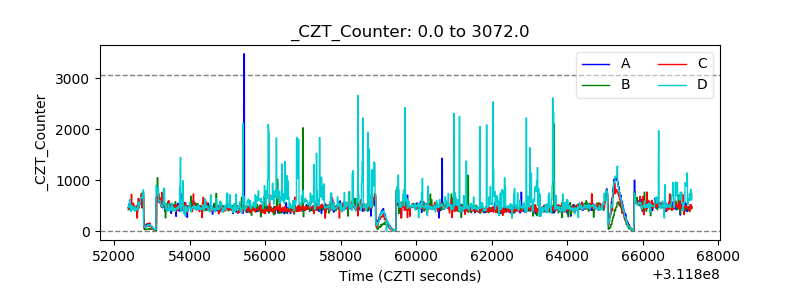

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

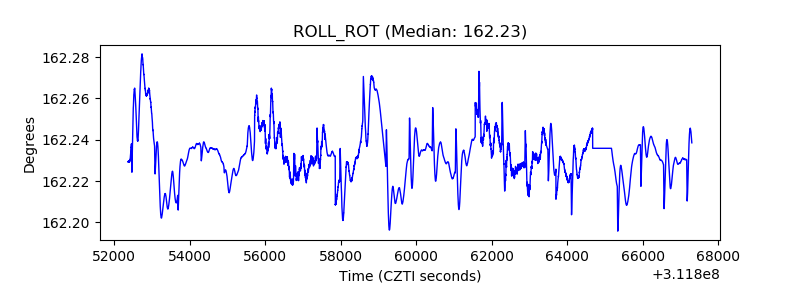

| _ROLL_ROT |  |

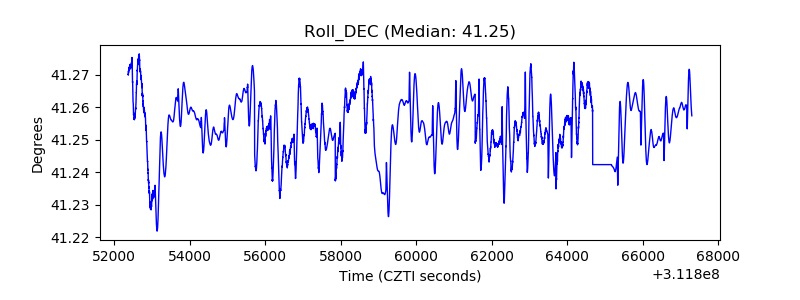

| _Roll_DEC |  |

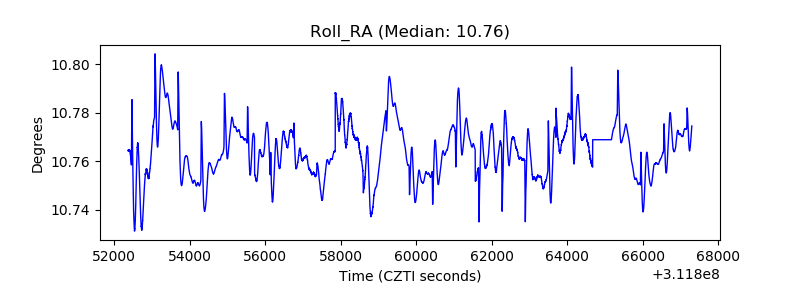

| _Roll_RA |  |

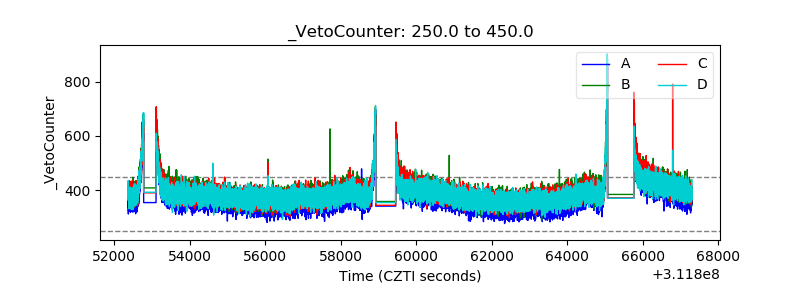

| Veto Counter |  |
