| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_004T01_9000003308_22351cztM0_level2.evt | modeM0/AS1C05_004T01_9000003308_22351cztM0_level2_quad_clean.evt |
| Size (bytes) | 437,425,920 | 92,511,360 |
| Size | 417.2 MB | 88.2 MB |
| Events in quadrant A | 3,144,674 | 592,425 |
| Events in quadrant B | 3,302,057 | 606,935 |
| Events in quadrant C | 3,183,497 | 575,224 |
| Events in quadrant D | 3,163,299 | 561,674 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13645 | 2 |
| B | 0 | 13964 | 2 |
| C | 0 | 13703 | 2 |
| D | 0 | 14042 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6672 | 35 | 0.524580% |
| B | 6672 | 67 | 1.004197% |
| C | 6672 | 80 | 1.199041% |
| D | 6672 | 23 | 0.344724% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7702 | 6673 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7702 | 6673 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7702 | 6673 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7702 | 6673 | 8 | 8 | 0.10% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 11576 | 66.4 | 811 | 794 | 162.4 |
| A | 13 | 254 | 9684 | 54.74 | 811 | 794 | 162.4 |
| A | 0 | 226 | 6945 | 37.88 | 811 | 794 | 162.4 |
| B | 0 | 245 | 48278 | 311.03 | 816 | 798 | 152.7 |
| B | 0 | 229 | 19055 | 119.6 | 816 | 798 | 152.7 |
| B | 12 | 111 | 18201 | 114.0 | 816 | 798 | 152.7 |
| C | 14 | 238 | 126570 | 691.77 | 782 | 786 | 181.8 |
| C | 0 | 10 | 8880 | 44.51 | 782 | 786 | 181.8 |
| C | 13 | 61 | 5457 | 25.69 | 782 | 786 | 181.8 |
| D | 1 | 52 | 79464 | 418.92 | 785 | 763 | 187.9 |
| D | 12 | 227 | 60155 | 316.14 | 785 | 763 | 187.9 |
| D | 2 | 153 | 27647 | 143.1 | 785 | 763 | 187.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

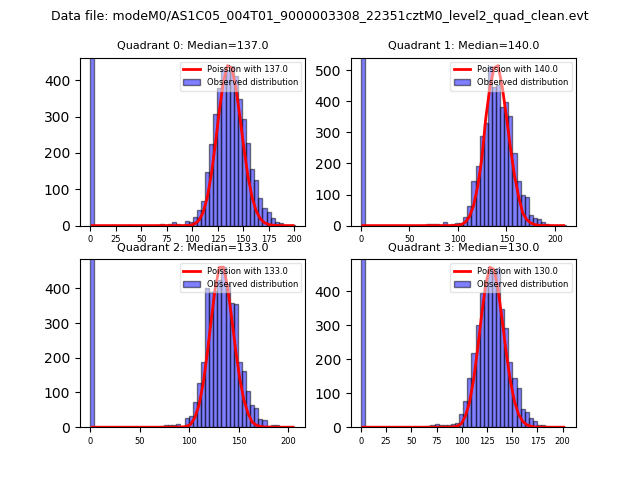

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

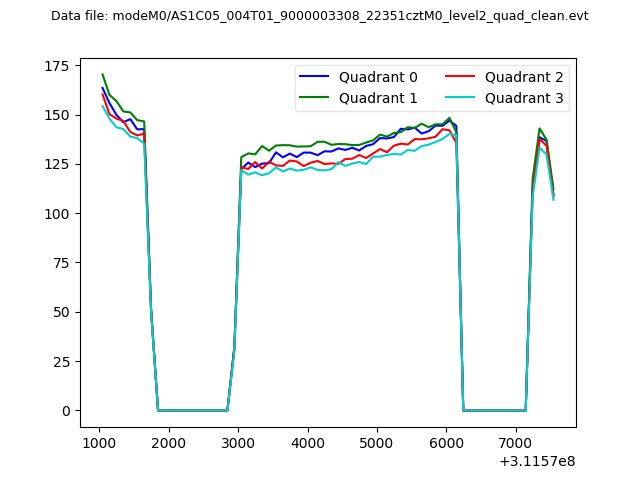

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

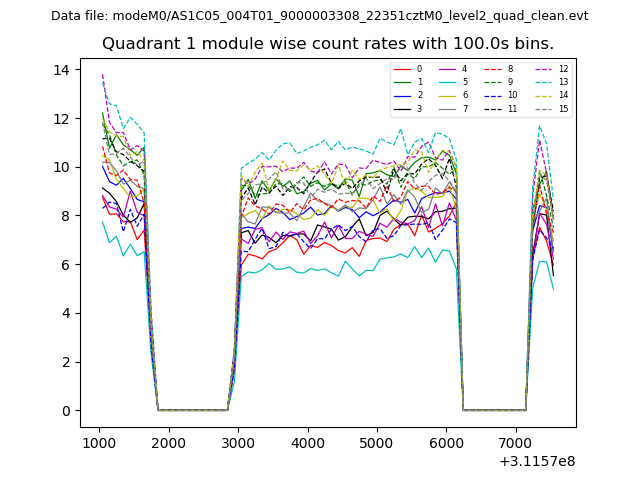

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

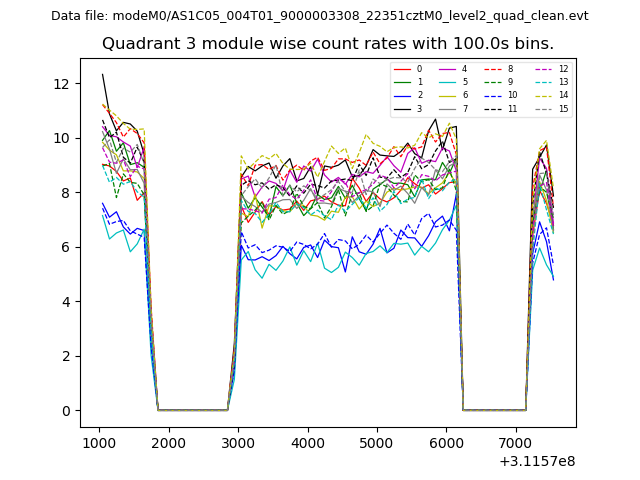

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
