| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_004T01_9000003308_22353cztM0_level2.evt | modeM0/AS1C05_004T01_9000003308_22353cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,278,080 | 104,051,520 |
| Size | 482.8 MB | 99.2 MB |
| Events in quadrant A | 3,649,495 | 663,936 |
| Events in quadrant B | 3,755,487 | 675,593 |
| Events in quadrant C | 3,590,659 | 647,583 |
| Events in quadrant D | 3,813,377 | 628,200 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16041 | 2 |
| B | 0 | 16151 | 2 |
| C | 0 | 15796 | 2 |
| D | 0 | 16634 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7704 | 167 | 2.167705% |
| B | 7704 | 179 | 2.323468% |
| C | 7704 | 171 | 2.219626% |
| D | 7705 | 124 | 1.609345% |

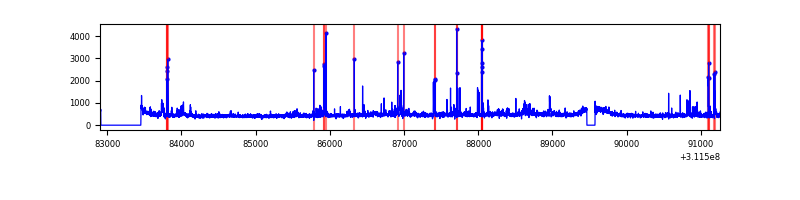

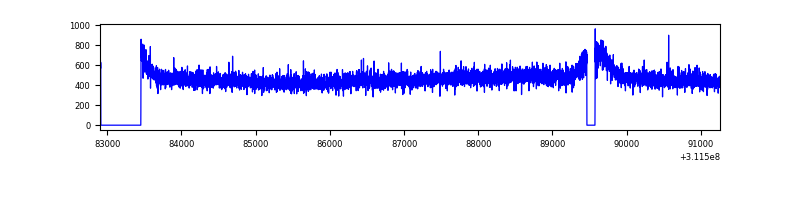

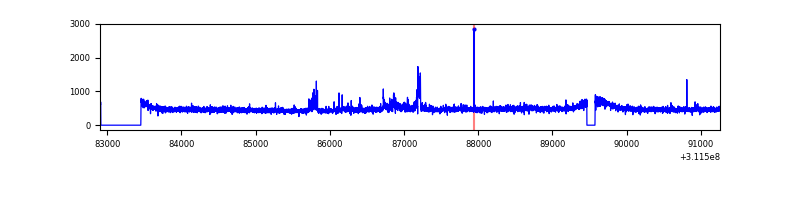

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8354 | 7704 | 10 | 10 | 0.12% | 0.13% |  |
| B | 8354 | 7705 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8354 | 7705 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8355 | 7706 | 25 | 25 | 0.30% | 0.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 116402 | 628.87 | 916 | 893 | 183.7 |
| A | 13 | 254 | 9702 | 47.96 | 916 | 893 | 183.7 |
| A | 3 | 137 | 8192 | 39.74 | 916 | 893 | 183.7 |
| B | 0 | 190 | 65020 | 368.03 | 918 | 895 | 174.2 |
| B | 0 | 245 | 34654 | 193.75 | 918 | 895 | 174.2 |
| B | 0 | 197 | 28892 | 160.68 | 918 | 895 | 174.2 |
| C | 14 | 238 | 142307 | 688.47 | 884 | 887 | 205.4 |
| C | 13 | 61 | 6310 | 26.4 | 884 | 887 | 205.4 |
| C | 3 | 9 | 2971 | 10.15 | 884 | 887 | 205.4 |
| D | 1 | 52 | 268586 | 1242.5 | 889 | 862 | 215.5 |
| D | 12 | 227 | 52568 | 239.97 | 889 | 862 | 215.5 |
| D | 13 | 104 | 42079 | 191.29 | 889 | 862 | 215.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

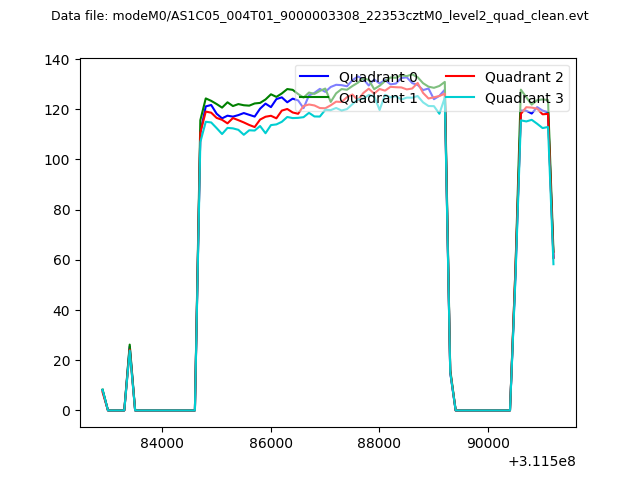

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

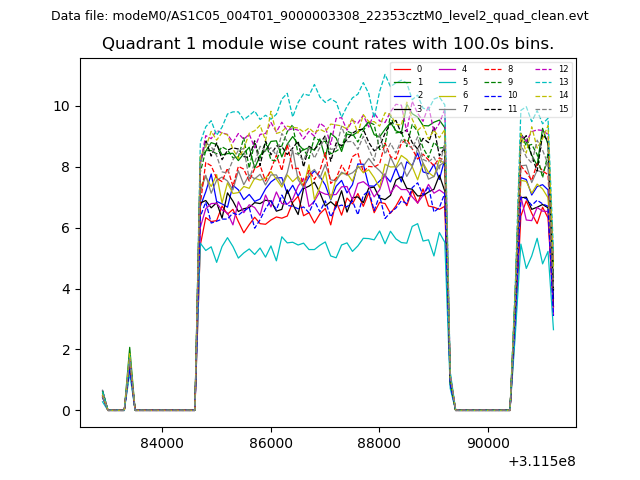

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

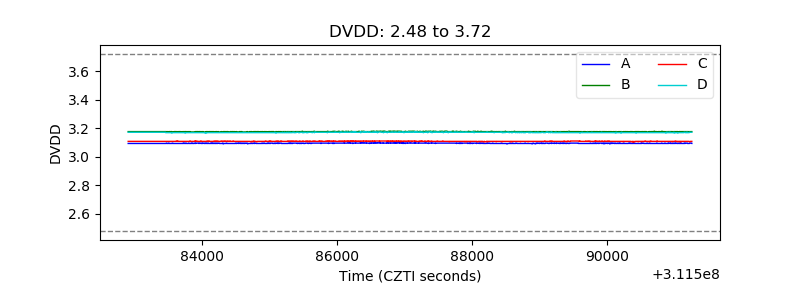

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

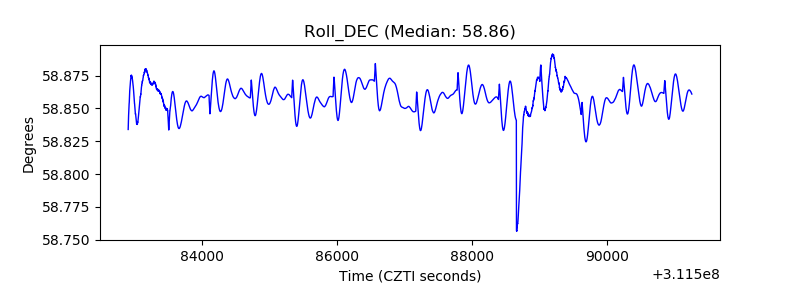

| _Roll_DEC |  |

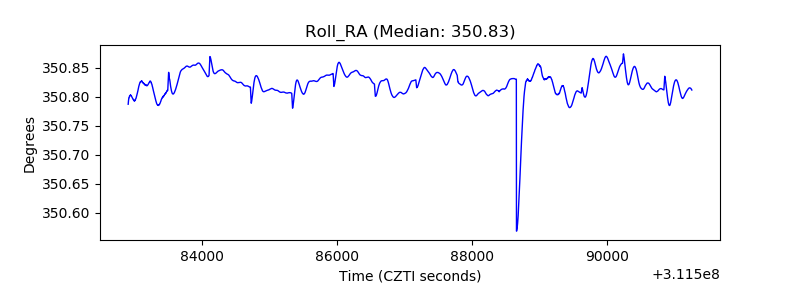

| _Roll_RA |  |
| Veto Counter |  |
