| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_004T01_9000003308_22358cztM0_level2.evt | modeM0/AS1C05_004T01_9000003308_22358cztM0_level2_quad_clean.evt |
| Size (bytes) | 153,812,160 | 34,439,040 |
| Size | 146.7 MB | 32.8 MB |
| Events in quadrant A | 874,961 | 234,680 |
| Events in quadrant B | 914,682 | 238,426 |
| Events in quadrant C | 887,338 | 226,557 |
| Events in quadrant D | 1,858,268 | 212,792 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3681 | 1 |
| B | 0 | 3777 | 1 |
| C | 0 | 3680 | 1 |
| D | 0 | 6736 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1774 | 4 | 0.225479% |
| B | 1774 | 5 | 0.281849% |
| C | 1774 | 30 | 1.691094% |
| D | 1774 | 111 | 6.257046% |

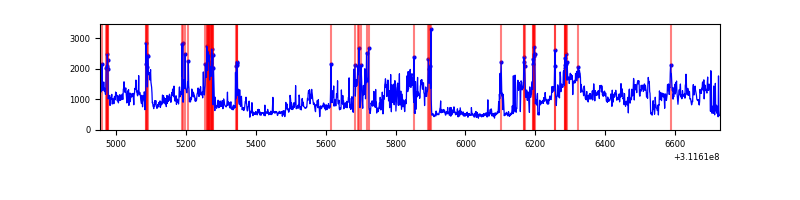

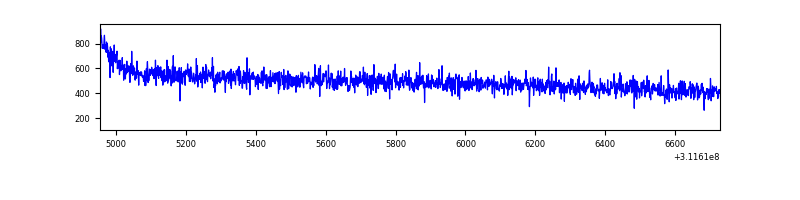

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1774 | 1774 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1774 | 1774 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1774 | 1774 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1774 | 1774 | 68 | 68 | 3.83% | 3.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 2192 | 41.2 | 226 | 220 | 47.9 |
| A | 0 | 226 | 1996 | 37.1 | 226 | 220 | 47.9 |
| A | 3 | 137 | 1841 | 33.87 | 226 | 220 | 47.9 |
| B | 0 | 245 | 13427 | 296.68 | 223 | 217 | 44.5 |
| B | 0 | 190 | 11242 | 247.61 | 223 | 217 | 44.5 |
| B | 0 | 229 | 6186 | 134.06 | 223 | 217 | 44.5 |
| C | 14 | 238 | 34384 | 652.93 | 217 | 217 | 52.3 |
| C | 0 | 10 | 3599 | 64.62 | 217 | 217 | 52.3 |
| C | 13 | 61 | 1498 | 24.47 | 217 | 217 | 52.3 |
| D | 1 | 52 | 901202 | 16344.56 | 219 | 212 | 55.1 |
| D | 12 | 227 | 51689 | 933.83 | 219 | 212 | 55.1 |
| D | 7 | 38 | 18066 | 323.88 | 219 | 212 | 55.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

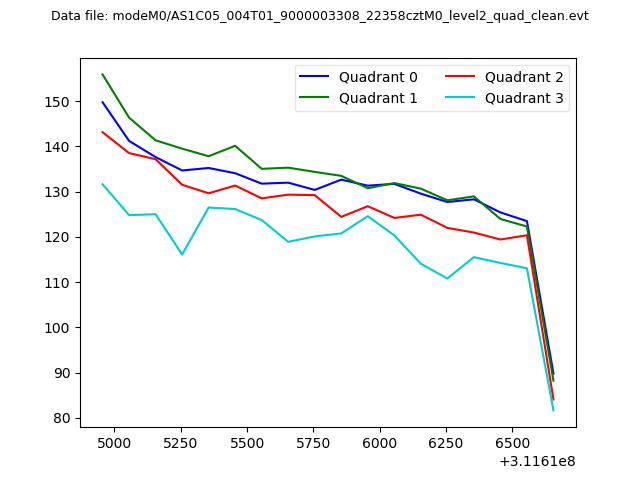

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

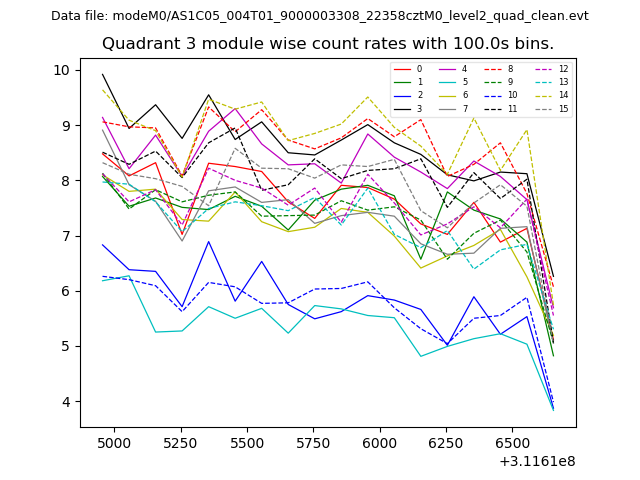

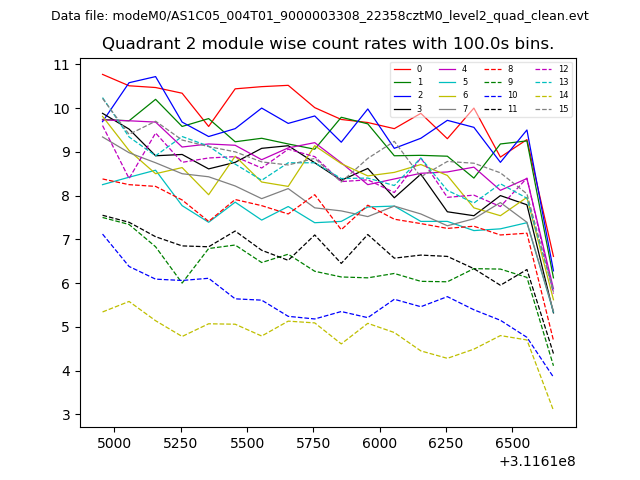

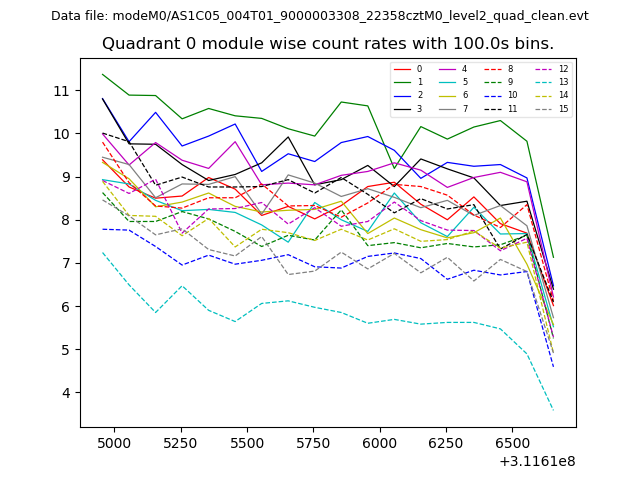

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

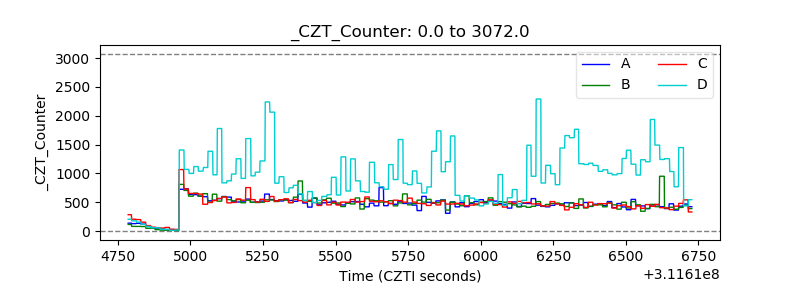

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

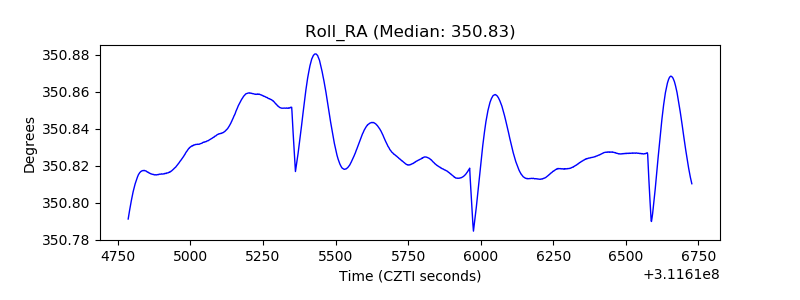

| _Roll_RA |  |
| Veto Counter |  |
