| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_156T01_9000003312_22412cztM0_level2.evt | modeM0/AS1T03_156T01_9000003312_22412cztM0_level2_quad_clean.evt |
| Size (bytes) | 381,873,600 | 71,337,600 |
| Size | 364.2 MB | 68.0 MB |
| Events in quadrant A | 2,602,350 | 450,900 |
| Events in quadrant B | 2,713,433 | 455,174 |
| Events in quadrant C | 2,637,440 | 437,532 |
| Events in quadrant D | 3,231,044 | 425,309 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11519 | 1 |
| B | 0 | 11684 | 1 |
| C | 0 | 11541 | 1 |
| D | 0 | 13391 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5588 | 137 | 2.451682% |
| B | 5588 | 186 | 3.328561% |
| C | 5588 | 152 | 2.720115% |
| D | 5588 | 173 | 3.095920% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5778 | 5588 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5778 | 5588 | 2 | 2 | 0.03% | 0.04% |  |
| C | 5778 | 5590 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5778 | 5589 | 66 | 66 | 1.14% | 1.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7791 | 51.88 | 674 | 657 | 137.5 |
| A | 3 | 137 | 6081 | 39.45 | 674 | 657 | 137.5 |
| A | 0 | 226 | 5765 | 37.15 | 674 | 657 | 137.5 |
| B | 0 | 228 | 33737 | 255.3 | 671 | 650 | 129.6 |
| B | 0 | 190 | 16312 | 120.85 | 671 | 650 | 129.6 |
| B | 12 | 111 | 15670 | 115.9 | 671 | 650 | 129.6 |
| C | 14 | 238 | 101269 | 654.61 | 650 | 652 | 153.7 |
| C | 13 | 61 | 4528 | 25.21 | 650 | 652 | 153.7 |
| C | 10 | 22 | 1745 | 7.11 | 650 | 652 | 153.7 |
| D | 1 | 52 | 648834 | 4078.02 | 656 | 636 | 158.9 |
| D | 2 | 234 | 27694 | 170.23 | 656 | 636 | 158.9 |
| D | 13 | 172 | 20337 | 123.95 | 656 | 636 | 158.9 |

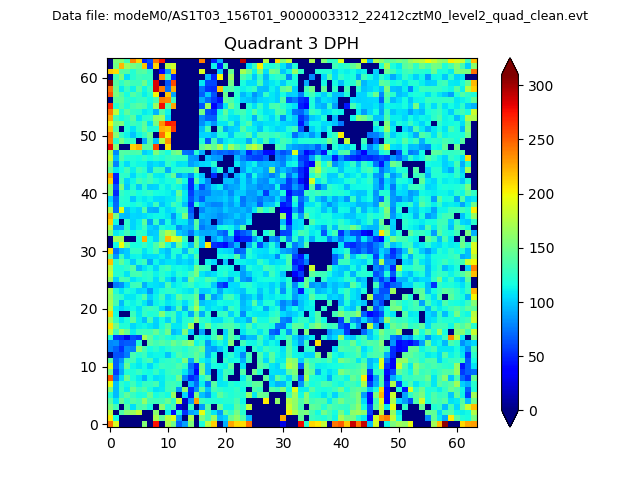

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
