| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_056T01_9000003330_22447cztM0_level2.evt | modeM0/AS1A07_056T01_9000003330_22447cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,598,400 | 118,241,280 |
| Size | 490.8 MB | 112.8 MB |
| Events in quadrant A | 2,904,589 | 808,607 |
| Events in quadrant B | 4,520,213 | 805,845 |
| Events in quadrant C | 2,928,748 | 789,452 |
| Events in quadrant D | 4,818,980 | 752,771 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12680 | 1 |
| B | 0 | 17424 | 1 |
| C | 0 | 12658 | 1 |
| D | 0 | 18389 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6076 | 40 | 0.658328% |
| B | 6077 | 269 | 4.426526% |
| C | 6077 | 88 | 1.448083% |
| D | 6077 | 475 | 7.816357% |

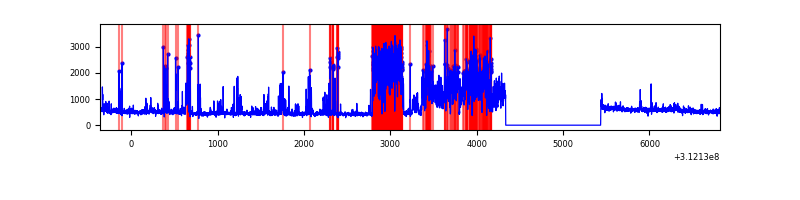

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7176 | 6076 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7177 | 6077 | 177 | 177 | 2.47% | 2.91% |  |
| C | 7177 | 6077 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7177 | 6077 | 397 | 397 | 5.53% | 6.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 98 | 37022 | 247.07 | 735 | 719 | 146.9 |
| A | 15 | 174 | 17191 | 112.1 | 735 | 719 | 146.9 |
| A | 3 | 1 | 15776 | 102.47 | 735 | 719 | 146.9 |
| B | 10 | 245 | 1618684 | 11852.11 | 727 | 709 | 136.5 |
| B | 0 | 190 | 21095 | 149.33 | 727 | 709 | 136.5 |
| B | 0 | 245 | 18034 | 126.91 | 727 | 709 | 136.5 |
| C | 14 | 238 | 115813 | 695.6 | 715 | 718 | 165.5 |
| C | 3 | 9 | 15141 | 87.17 | 715 | 718 | 165.5 |
| C | 0 | 10 | 7649 | 41.89 | 715 | 718 | 165.5 |
| D | 1 | 52 | 1022799 | 5955.69 | 711 | 691 | 171.6 |
| D | 7 | 223 | 937321 | 5457.62 | 711 | 691 | 171.6 |
| D | 1 | 20 | 96734 | 559.63 | 711 | 691 | 171.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

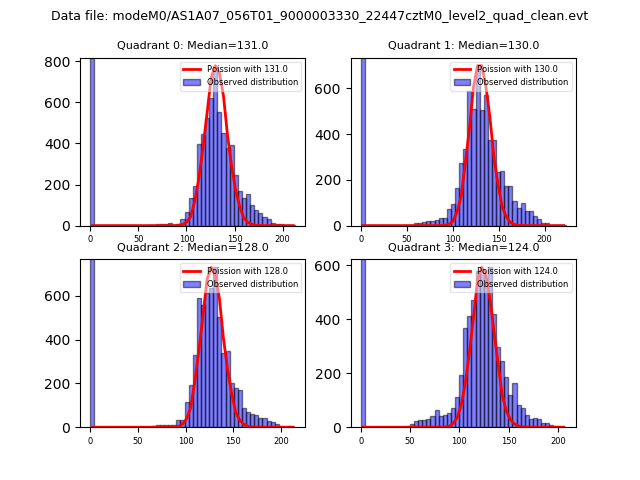

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

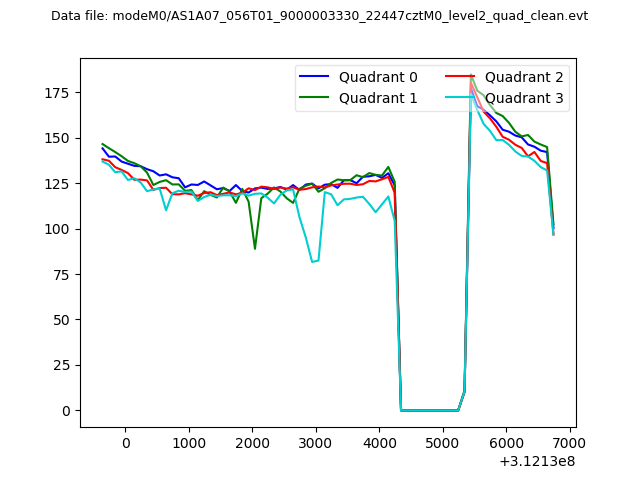

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

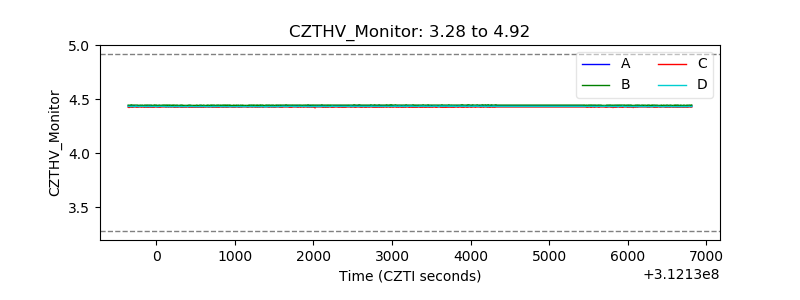

| CZT HV Monitor |  |

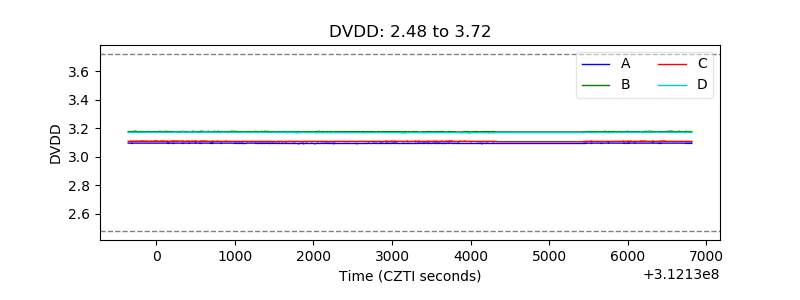

| D_VDD |  |

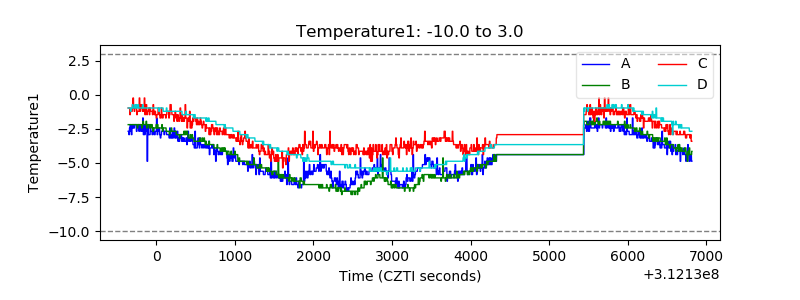

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

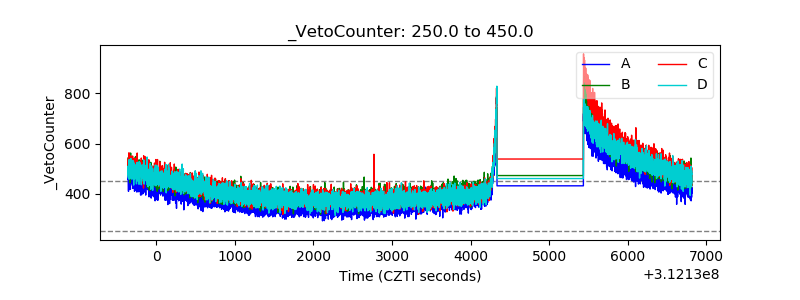

| Veto Counter |  |
