| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_056T01_9000003330_22455cztM0_level2.evt | modeM0/AS1A07_056T01_9000003330_22455cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,584,640 | 120,836,160 |
| Size | 464.0 MB | 115.2 MB |
| Events in quadrant A | 2,991,321 | 818,052 |
| Events in quadrant B | 4,723,241 | 806,834 |
| Events in quadrant C | 3,114,360 | 800,013 |
| Events in quadrant D | 3,464,968 | 780,669 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13380 | 2 |
| B | 0 | 18354 | 2 |
| C | 0 | 13645 | 2 |
| D | 0 | 15032 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6511 | 58 | 0.890800% |
| B | 6511 | 539 | 8.278298% |
| C | 6511 | 106 | 1.628014% |
| D | 6511 | 160 | 2.457380% |

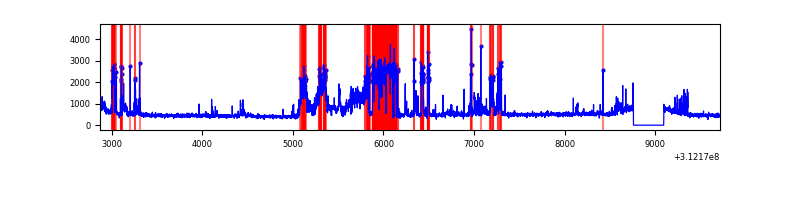

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6846 | 6512 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6846 | 6511 | 377 | 377 | 5.51% | 5.79% |  |
| C | 6846 | 6512 | 7 | 7 | 0.10% | 0.11% |  |
| D | 6846 | 6512 | 138 | 138 | 2.02% | 2.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 240 | 13226 | 80.37 | 770 | 755 | 155.2 |
| A | 13 | 254 | 8722 | 51.35 | 770 | 755 | 155.2 |
| A | 3 | 137 | 6854 | 39.31 | 770 | 755 | 155.2 |
| B | 10 | 245 | 1740857 | 12111.59 | 754 | 733 | 143.7 |
| B | 12 | 111 | 17763 | 118.53 | 754 | 733 | 143.7 |
| B | 11 | 111 | 15811 | 104.95 | 754 | 733 | 143.7 |
| C | 14 | 238 | 118688 | 672.32 | 746 | 749 | 175.4 |
| C | 10 | 22 | 80016 | 451.86 | 746 | 749 | 175.4 |
| C | 3 | 9 | 6650 | 33.64 | 746 | 749 | 175.4 |
| D | 1 | 52 | 511042 | 2815.53 | 747 | 724 | 181.3 |
| D | 5 | 32 | 59697 | 325.37 | 747 | 724 | 181.3 |
| D | 2 | 136 | 41369 | 224.25 | 747 | 724 | 181.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

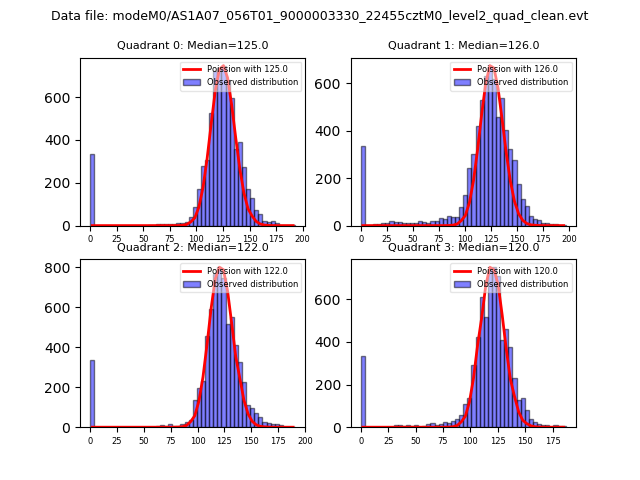

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

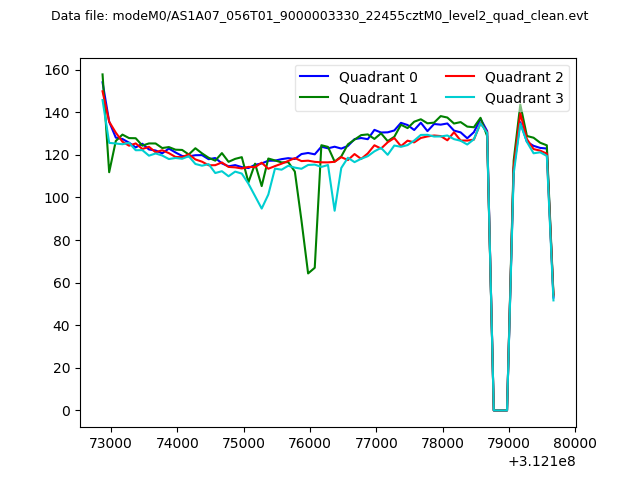

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

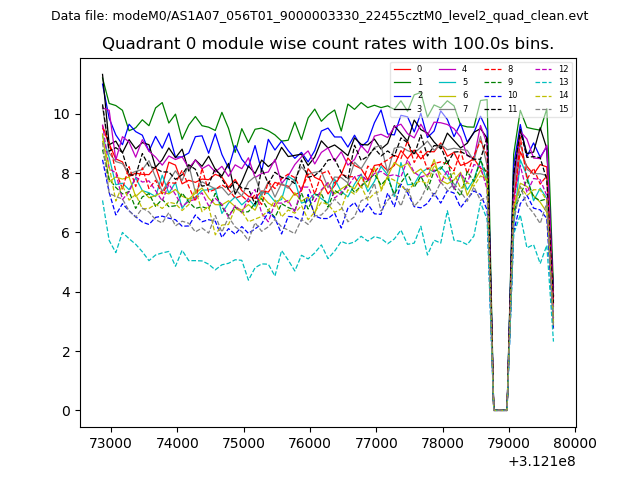

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

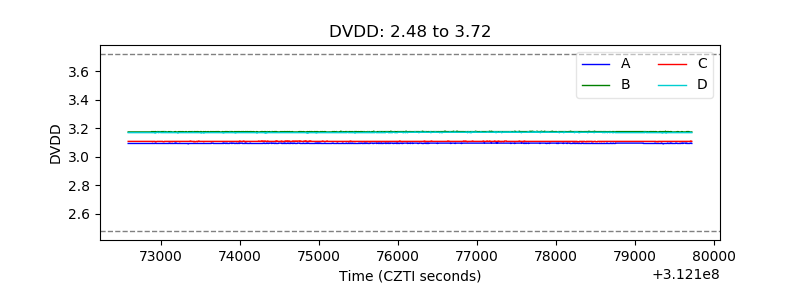

| D_VDD |  |

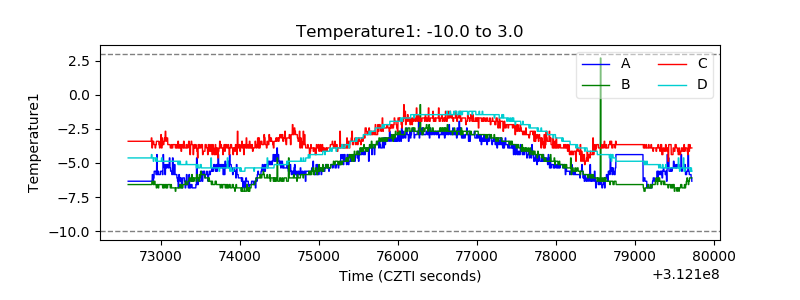

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

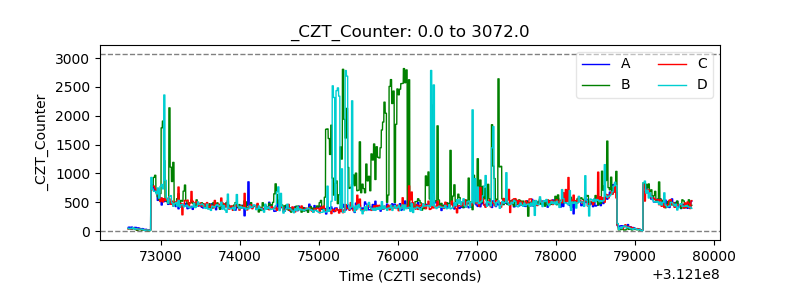

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

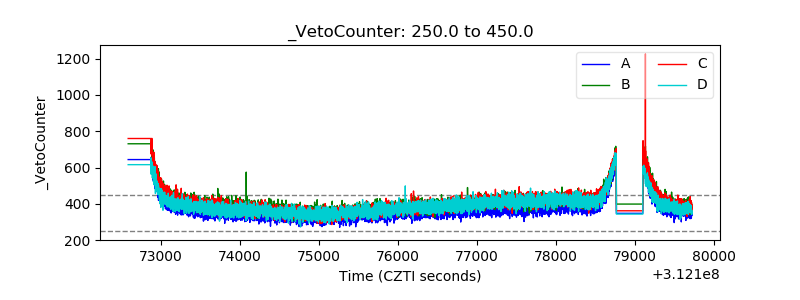

| Veto Counter |  |
