| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_149T06_9000003326_22425cztM0_level2.evt | modeM0/AS1T03_149T06_9000003326_22425cztM0_level2_quad_clean.evt |
| Size (bytes) | 163,310,400 | 46,771,200 |
| Size | 155.7 MB | 44.6 MB |
| Events in quadrant A | 1,157,451 | 314,220 |
| Events in quadrant B | 1,223,418 | 322,966 |
| Events in quadrant C | 1,186,140 | 303,922 |
| Events in quadrant D | 1,210,240 | 299,329 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50 | 0 |
| B | 0 | 50 | 0 |
| C | 0 | 50 | 0 |
| D | 0 | 50 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5078 | 1 |
| B | 0 | 5174 | 1 |
| C | 0 | 5088 | 1 |
| D | 0 | 5306 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2446 | 37 | 1.512674% |
| B | 2446 | 54 | 2.207686% |
| C | 2446 | 77 | 3.147997% |
| D | 2446 | 31 | 1.267375% |

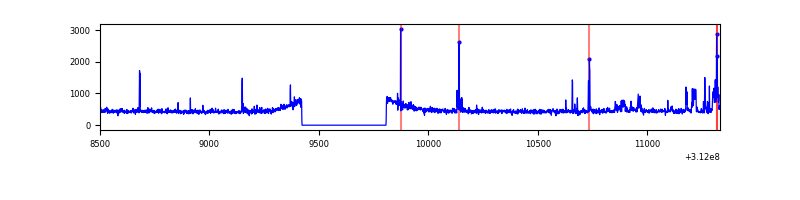

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2831 | 2447 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2831 | 2447 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2831 | 2447 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2831 | 2447 | 5 | 5 | 0.18% | 0.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 3349 | 48.96 | 299 | 291 | 62.5 |
| A | 3 | 137 | 2621 | 37.3 | 299 | 291 | 62.5 |
| A | 0 | 226 | 2559 | 36.31 | 299 | 291 | 62.5 |
| B | 0 | 244 | 33482 | 553.41 | 301 | 292 | 60.0 |
| B | 3 | 64 | 7647 | 122.64 | 301 | 292 | 60.0 |
| B | 12 | 111 | 7342 | 117.55 | 301 | 292 | 60.0 |
| C | 14 | 238 | 46060 | 646.19 | 292 | 293 | 70.8 |
| C | 13 | 61 | 2026 | 24.47 | 292 | 293 | 70.8 |
| C | 15 | 78 | 742 | 6.34 | 292 | 293 | 70.8 |
| D | 13 | 104 | 89903 | 1250.22 | 291 | 282 | 71.7 |
| D | 2 | 234 | 9718 | 131.63 | 291 | 282 | 71.7 |
| D | 13 | 172 | 8512 | 114.81 | 291 | 282 | 71.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

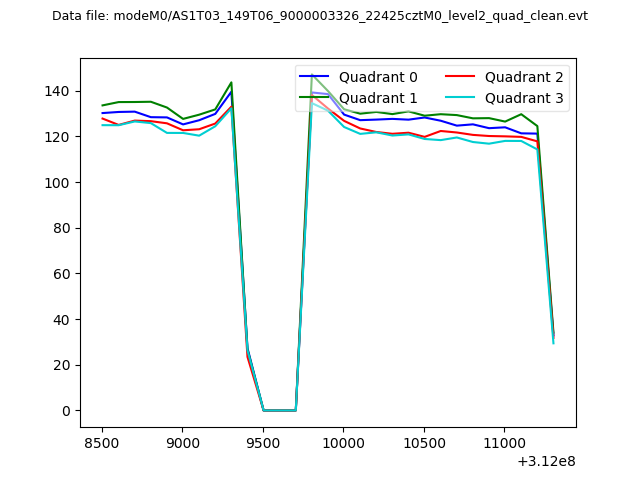

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

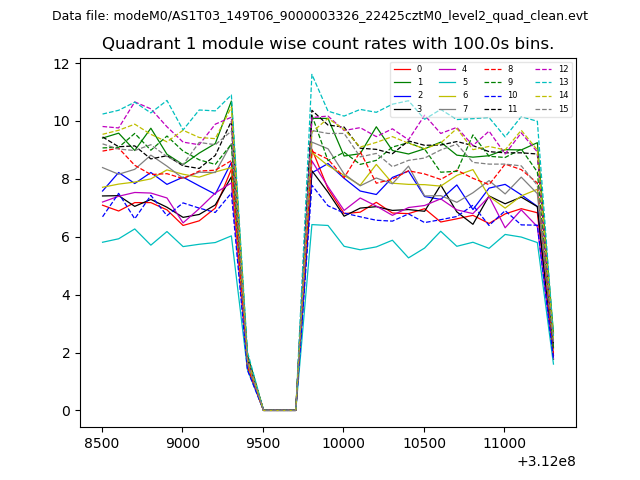

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

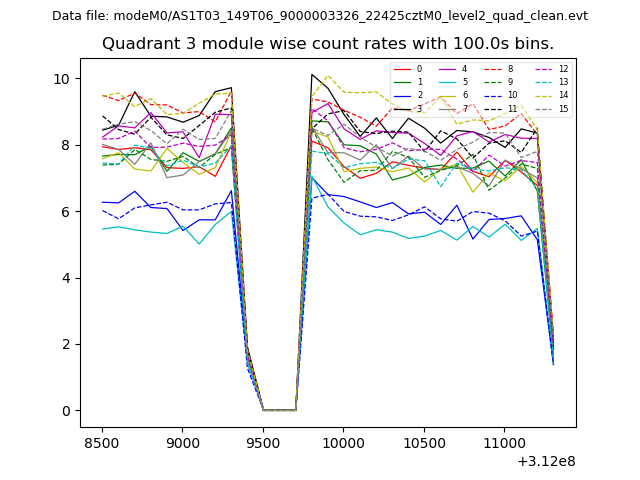

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

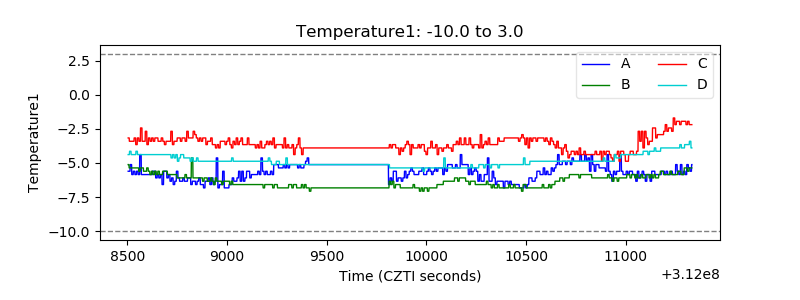

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

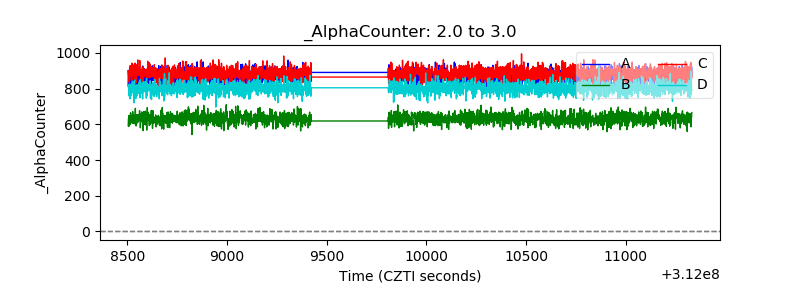

| Alpha Counter |  |

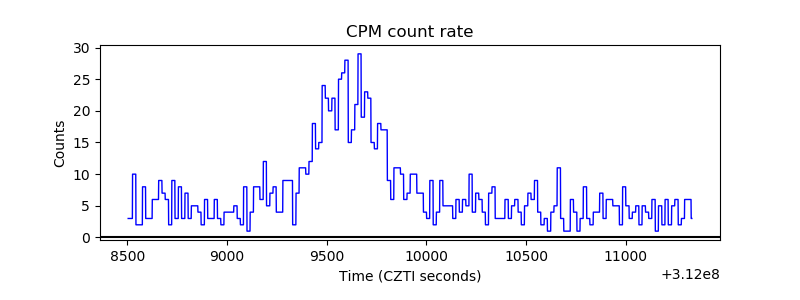

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

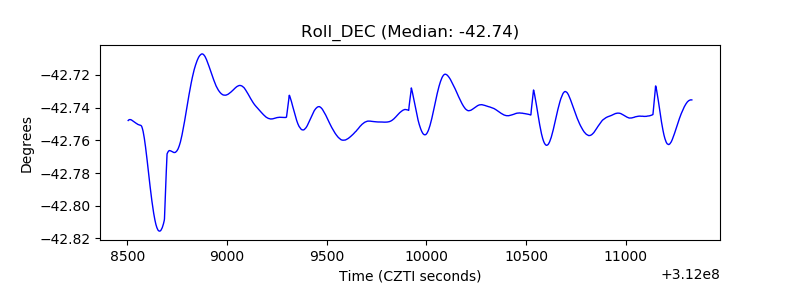

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
