| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_159T01_9000003328_22431cztM0_level2.evt | modeM0/AS1T03_159T01_9000003328_22431cztM0_level2_quad_clean.evt |
| Size (bytes) | 730,085,760 | 160,902,720 |
| Size | 696.3 MB | 153.4 MB |
| Events in quadrant A | 5,194,766 | 1,052,154 |
| Events in quadrant B | 5,170,841 | 1,069,125 |
| Events in quadrant C | 5,114,464 | 1,009,084 |
| Events in quadrant D | 5,899,061 | 995,937 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 220 | 0 |
| B | 0 | 220 | 0 |
| C | 0 | 220 | 0 |
| D | 0 | 220 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22553 | 2 |
| B | 0 | 22532 | 2 |
| C | 0 | 22434 | 2 |
| D | 0 | 25093 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10792 | 100 | 0.926612% |
| B | 10791 | 116 | 1.074970% |
| C | 10791 | 154 | 1.427115% |
| D | 10792 | 215 | 1.992216% |

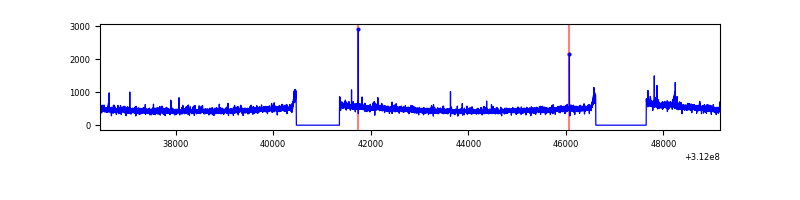

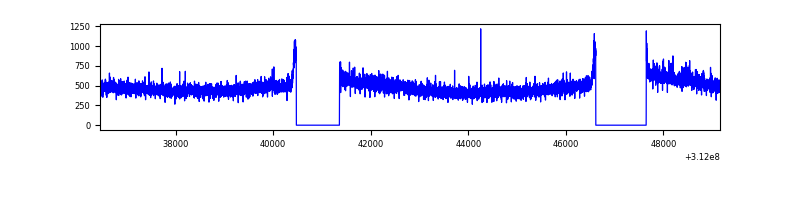

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12712 | 10792 | 0 | 0 | 0.00% | 0.00% |  |
| B | 12711 | 10791 | 2 | 2 | 0.02% | 0.02% |  |
| C | 12711 | 10791 | 0 | 0 | 0.00% | 0.00% |  |
| D | 12712 | 10792 | 121 | 121 | 0.95% | 1.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 240 | 79552 | 300.79 | 1309 | 1282 | 260.2 |
| A | 15 | 174 | 27933 | 102.42 | 1309 | 1282 | 260.2 |
| A | 2 | 79 | 26266 | 96.01 | 1309 | 1282 | 260.2 |
| B | 12 | 111 | 30588 | 117.92 | 1308 | 1276 | 248.6 |
| B | 11 | 111 | 27036 | 103.63 | 1308 | 1276 | 248.6 |
| B | 14 | 111 | 23585 | 89.75 | 1308 | 1276 | 248.6 |
| C | 14 | 238 | 198610 | 675.48 | 1250 | 1258 | 292.2 |
| C | 1 | 16 | 21708 | 69.99 | 1250 | 1258 | 292.2 |
| C | 0 | 10 | 18988 | 60.68 | 1250 | 1258 | 292.2 |
| D | 1 | 52 | 696270 | 2313.04 | 1258 | 1223 | 300.5 |
| D | 7 | 223 | 286485 | 949.32 | 1258 | 1223 | 300.5 |
| D | 9 | 85 | 55162 | 179.5 | 1258 | 1223 | 300.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

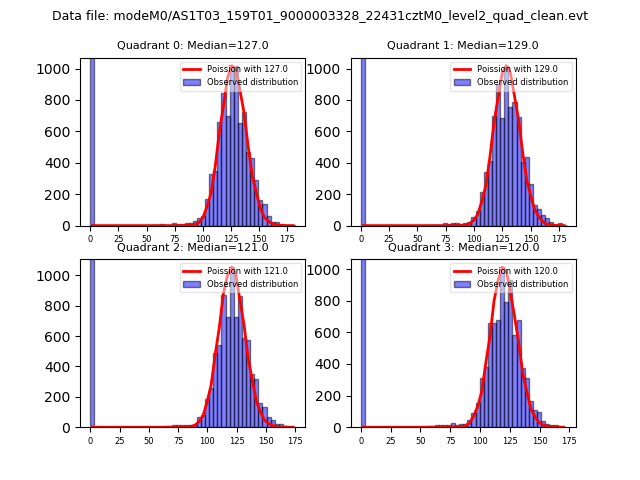

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

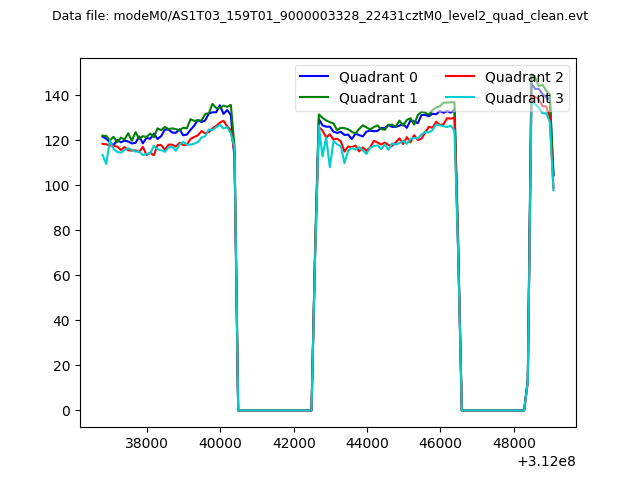

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

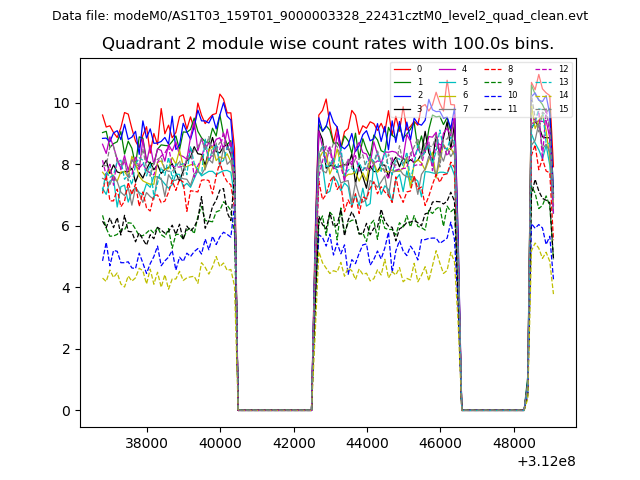

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

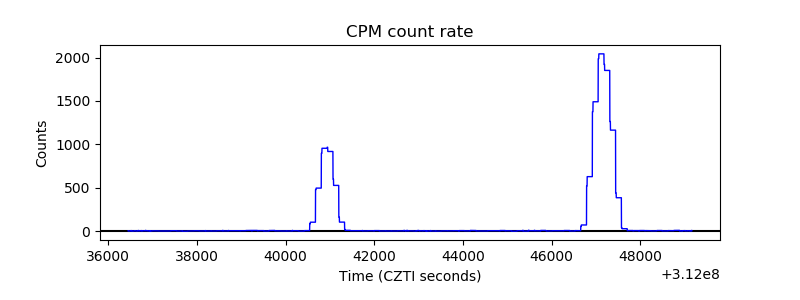

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

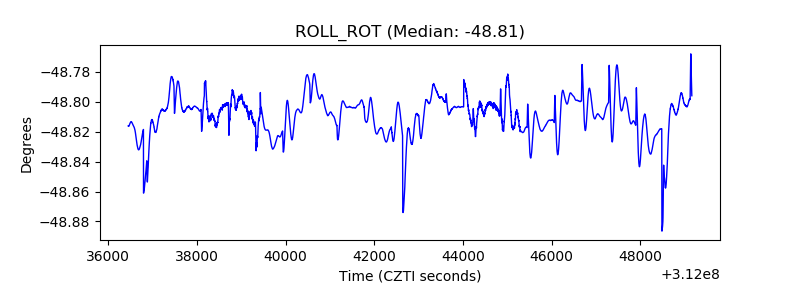

| _ROLL_ROT |  |

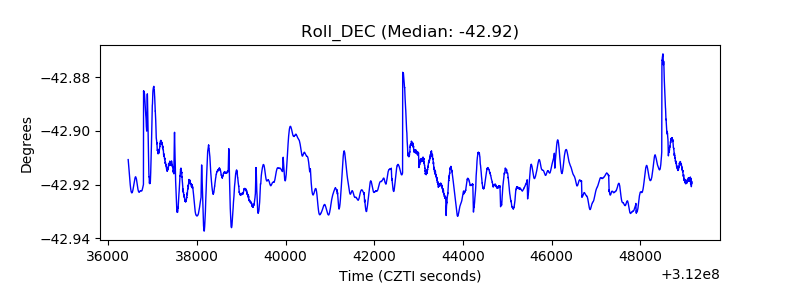

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
