| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_065T01_9000003338_22459cztM0_level2.evt | modeM0/AS1A07_065T01_9000003338_22459cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,612,160 | 74,456,640 |
| Size | 457.4 MB | 71.0 MB |
| Events in quadrant A | 3,407,946 | 450,716 |
| Events in quadrant B | 3,627,909 | 451,291 |
| Events in quadrant C | 3,473,538 | 432,213 |
| Events in quadrant D | 3,537,838 | 430,317 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14461 | 2 |
| B | 0 | 15071 | 2 |
| C | 0 | 14617 | 3 |
| D | 0 | 15186 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7036 | 67 | 0.952246% |
| B | 7036 | 130 | 1.847641% |
| C | 7035 | 126 | 1.791045% |
| D | 7035 | 109 | 1.549396% |

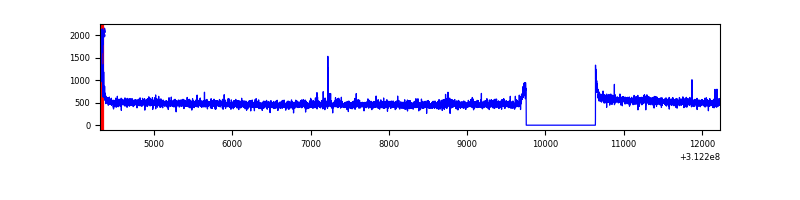

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7921 | 7036 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7921 | 7036 | 23 | 23 | 0.29% | 0.33% |  |
| C | 7920 | 7035 | 11 | 11 | 0.14% | 0.16% |  |
| D | 7920 | 7035 | 38 | 38 | 0.48% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9732 | 49.52 | 881 | 860 | 179.2 |
| A | 3 | 1 | 8754 | 44.06 | 881 | 860 | 179.2 |
| A | 3 | 137 | 7717 | 38.27 | 881 | 860 | 179.2 |
| B | 0 | 244 | 167674 | 992.14 | 870 | 847 | 168.1 |
| B | 0 | 190 | 35891 | 208.41 | 870 | 847 | 168.1 |
| B | 12 | 111 | 20646 | 117.75 | 870 | 847 | 168.1 |
| C | 14 | 238 | 133260 | 672.89 | 838 | 842 | 196.8 |
| C | 10 | 22 | 63053 | 316.13 | 838 | 842 | 196.8 |
| C | 9 | 54 | 6144 | 26.94 | 838 | 842 | 196.8 |
| D | 1 | 52 | 198616 | 952.55 | 855 | 829 | 207.6 |
| D | 2 | 136 | 40743 | 192.23 | 855 | 829 | 207.6 |
| D | 2 | 234 | 31520 | 147.81 | 855 | 829 | 207.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

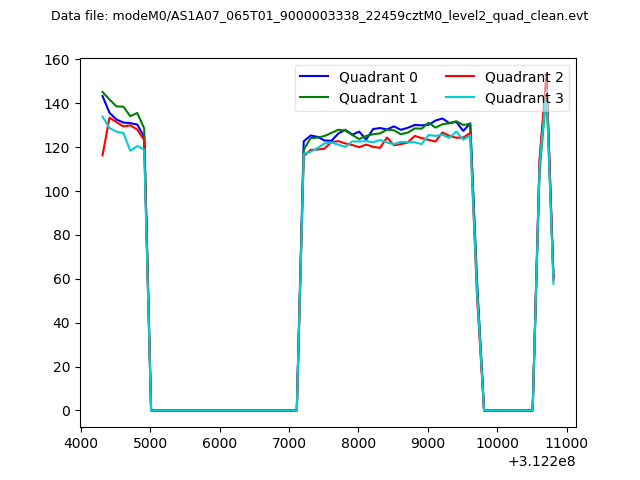

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

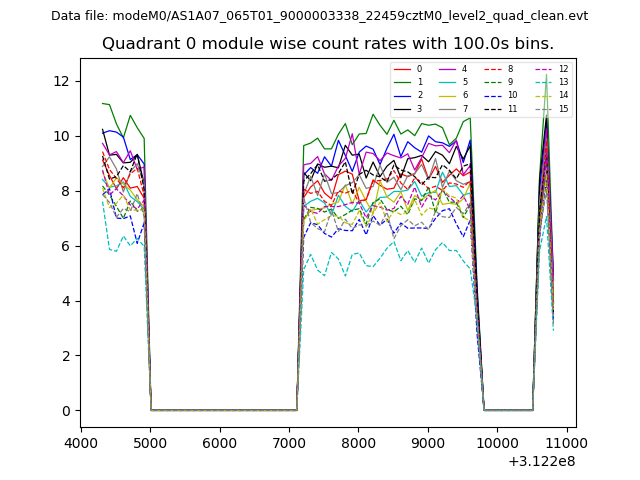

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

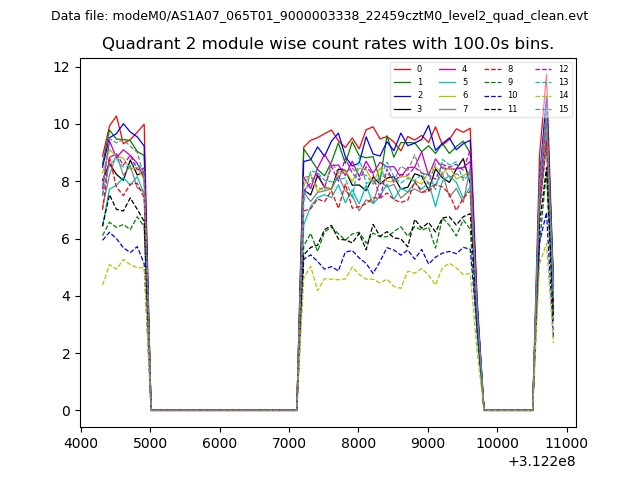

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

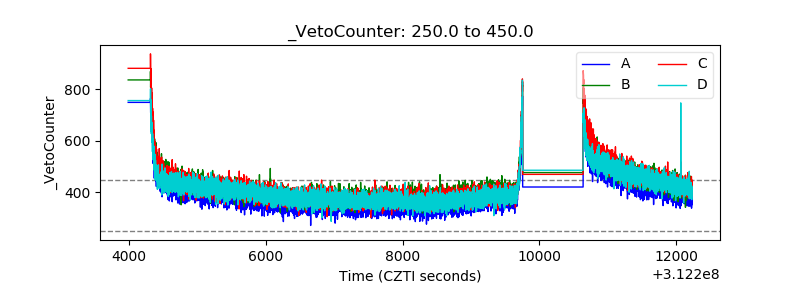

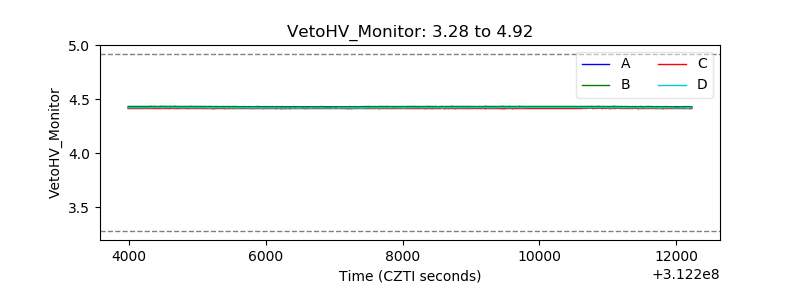

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

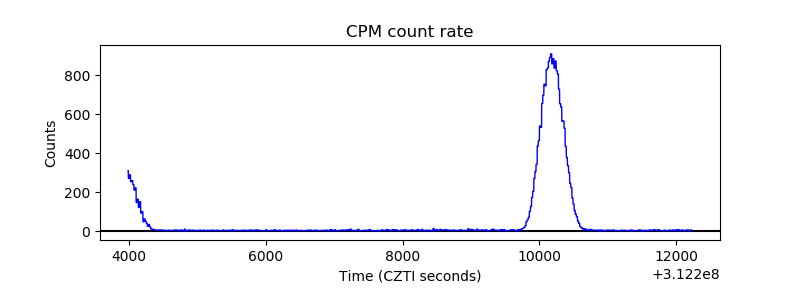

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

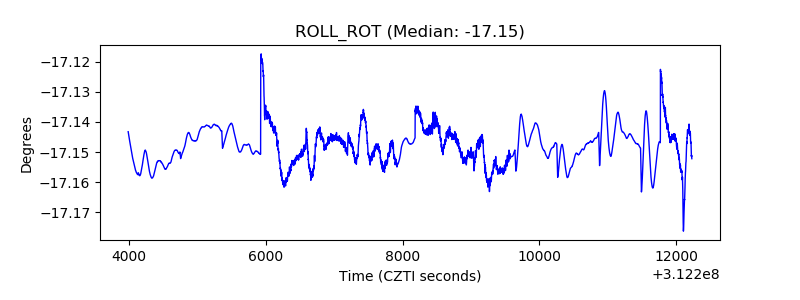

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
