| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_065T01_9000003338_22464cztM0_level2.evt | modeM0/AS1A07_065T01_9000003338_22464cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,956,800 | 95,250,240 |
| Size | 454.9 MB | 90.8 MB |
| Events in quadrant A | 3,351,494 | 617,121 |
| Events in quadrant B | 3,559,072 | 626,171 |
| Events in quadrant C | 3,624,965 | 606,681 |
| Events in quadrant D | 3,484,416 | 597,970 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14139 | 2 |
| B | 0 | 14557 | 2 |
| C | 0 | 14943 | 2 |
| D | 0 | 14524 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6261 | 41 | 0.654847% |
| B | 6261 | 86 | 1.373582% |
| C | 6261 | 191 | 3.050631% |
| D | 6261 | 82 | 1.309695% |

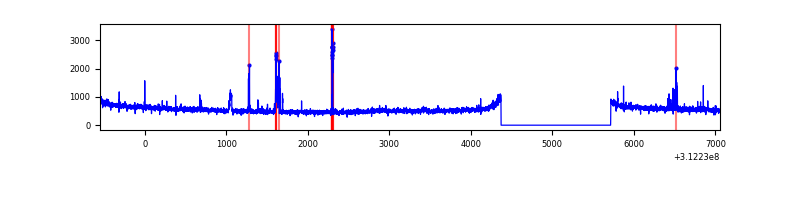

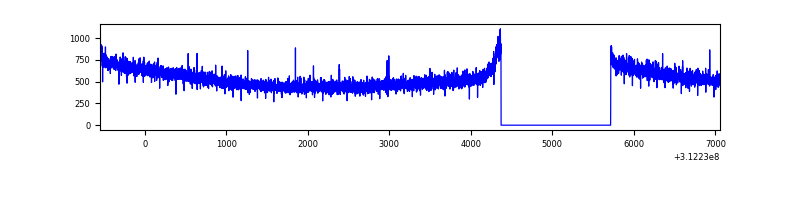

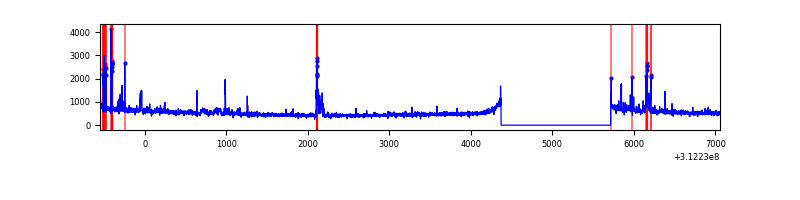

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7606 | 6261 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7606 | 6262 | 18 | 18 | 0.24% | 0.29% |  |
| C | 7606 | 6261 | 33 | 33 | 0.43% | 0.53% |  |
| D | 7606 | 6261 | 34 | 34 | 0.45% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 47392 | 271.98 | 858 | 844 | 171.1 |
| A | 13 | 254 | 9500 | 50.58 | 858 | 844 | 171.1 |
| A | 0 | 226 | 7314 | 37.8 | 858 | 844 | 171.1 |
| B | 0 | 244 | 76436 | 470.54 | 860 | 839 | 160.7 |
| B | 5 | 172 | 73206 | 450.44 | 860 | 839 | 160.7 |
| B | 12 | 111 | 18717 | 111.28 | 860 | 839 | 160.7 |
| C | 10 | 22 | 144349 | 741.51 | 836 | 844 | 193.5 |
| C | 14 | 238 | 134153 | 688.82 | 836 | 844 | 193.5 |
| C | 9 | 54 | 58000 | 295.33 | 836 | 844 | 193.5 |
| D | 1 | 52 | 84198 | 407.83 | 846 | 823 | 204.4 |
| D | 13 | 249 | 82540 | 399.72 | 846 | 823 | 204.4 |
| D | 2 | 136 | 69291 | 334.91 | 846 | 823 | 204.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

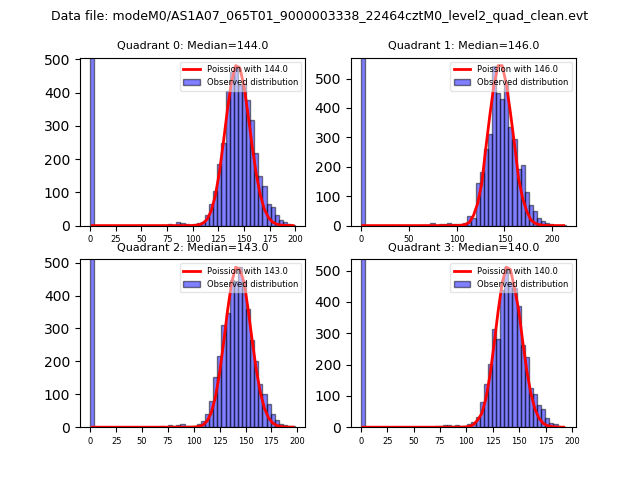

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

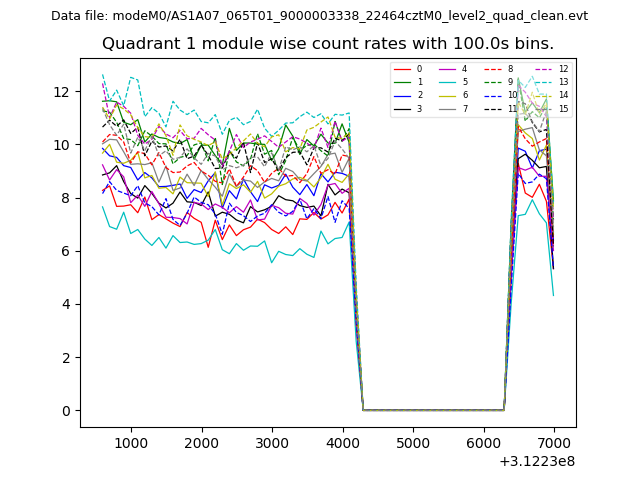

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

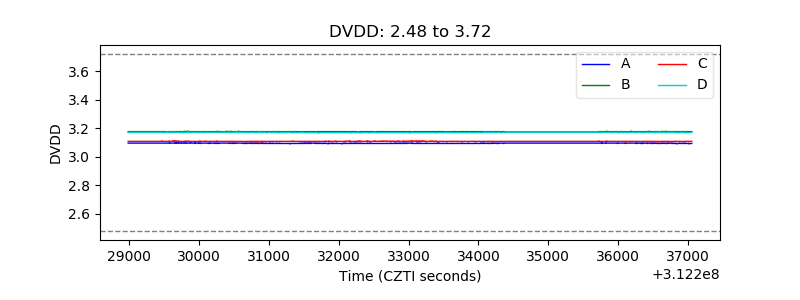

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

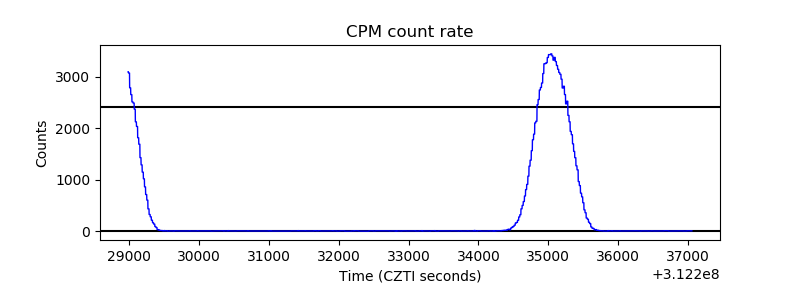

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

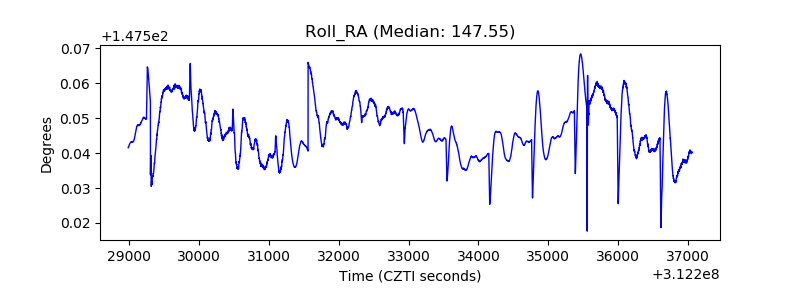

| _Roll_RA |  |
| Veto Counter |  |
