| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_065T01_9000003338_22465cztM0_level2.evt | modeM0/AS1A07_065T01_9000003338_22465cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,294,720 | 100,575,360 |
| Size | 432.3 MB | 95.9 MB |
| Events in quadrant A | 3,175,279 | 658,333 |
| Events in quadrant B | 3,494,958 | 674,161 |
| Events in quadrant C | 3,363,860 | 650,336 |
| Events in quadrant D | 3,276,607 | 634,293 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13356 | 2 |
| B | 0 | 14147 | 2 |
| C | 0 | 13940 | 2 |
| D | 0 | 13888 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6140 | 63 | 1.026059% |
| B | 6140 | 81 | 1.319218% |
| C | 6140 | 156 | 2.540717% |
| D | 6139 | 57 | 0.928490% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7470 | 6140 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7470 | 6140 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7470 | 6141 | 20 | 20 | 0.27% | 0.33% |  |
| D | 7469 | 6140 | 12 | 12 | 0.16% | 0.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 17057 | 99.46 | 820 | 804 | 163.4 |
| A | 13 | 254 | 9039 | 50.4 | 820 | 804 | 163.4 |
| A | 0 | 226 | 7063 | 38.3 | 820 | 804 | 163.4 |
| B | 0 | 244 | 235909 | 1520.11 | 825 | 806 | 154.7 |
| B | 12 | 111 | 18200 | 112.47 | 825 | 806 | 154.7 |
| B | 11 | 111 | 16178 | 99.39 | 825 | 806 | 154.7 |
| C | 14 | 238 | 127605 | 683.95 | 801 | 809 | 185.4 |
| C | 9 | 54 | 59940 | 318.96 | 801 | 809 | 185.4 |
| C | 0 | 10 | 28951 | 151.8 | 801 | 809 | 185.4 |
| D | 7 | 222 | 87990 | 452.23 | 804 | 783 | 192.8 |
| D | 13 | 249 | 41321 | 210.22 | 804 | 783 | 192.8 |
| D | 1 | 52 | 38783 | 197.06 | 804 | 783 | 192.8 |

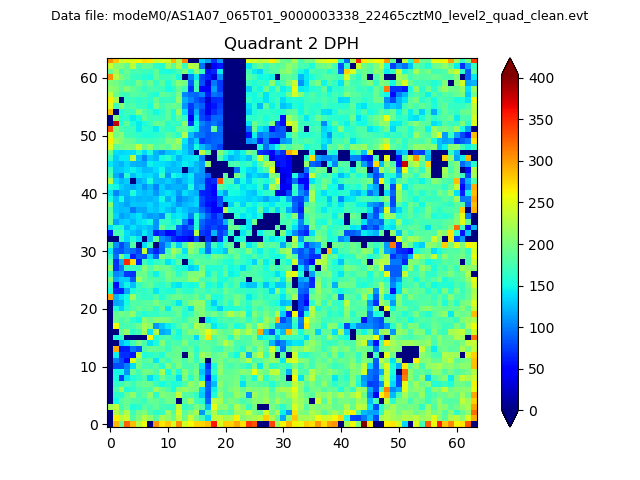

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

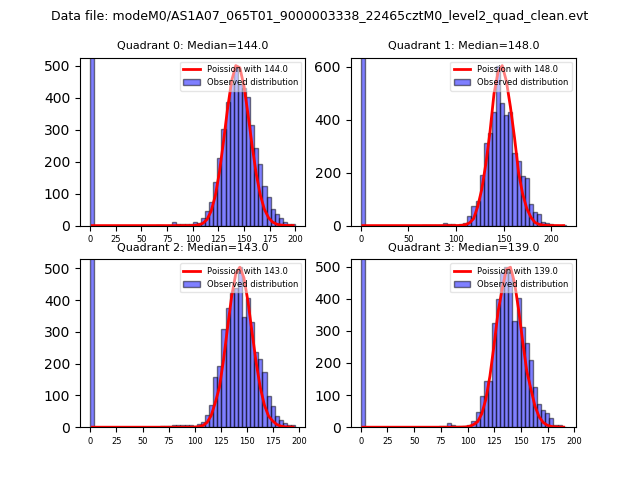

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

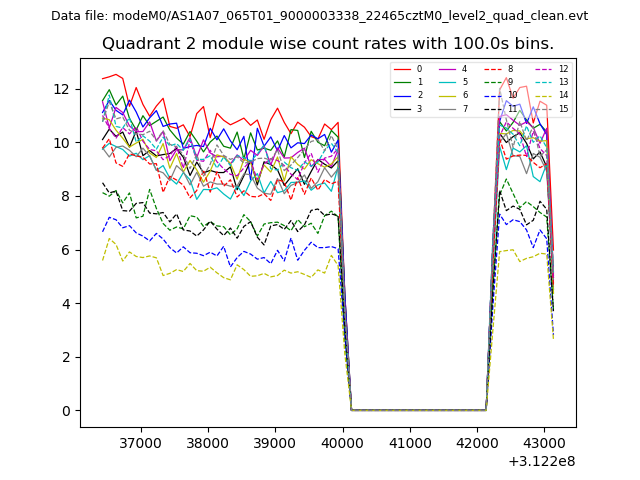

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

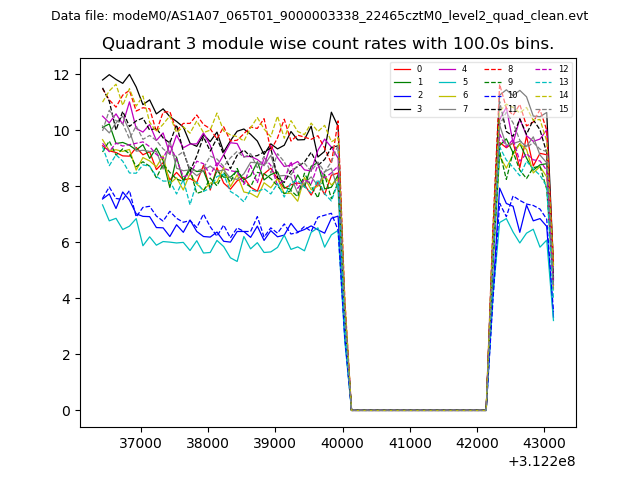

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

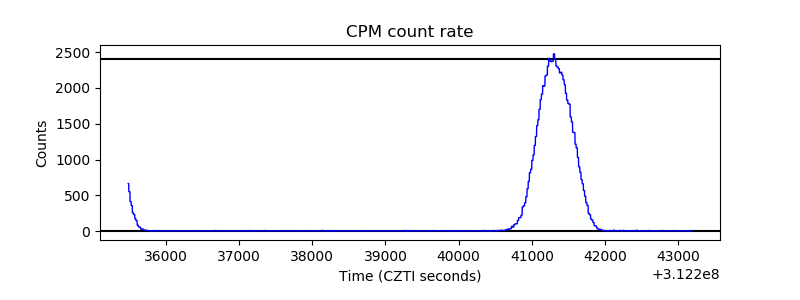

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

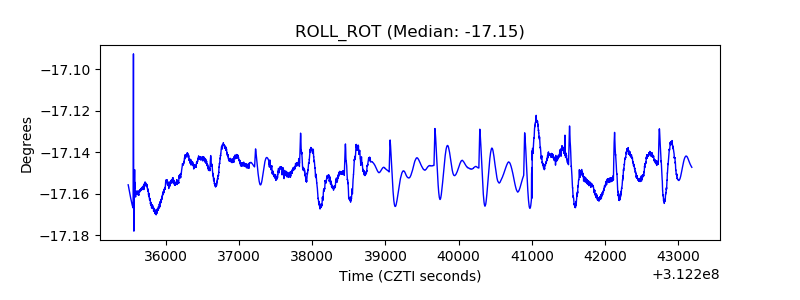

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
