| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_065T01_9000003338_22466cztM0_level2.evt | modeM0/AS1A07_065T01_9000003338_22466cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,068,800 | 102,792,960 |
| Size | 425.4 MB | 98.0 MB |
| Events in quadrant A | 3,024,903 | 681,988 |
| Events in quadrant B | 3,307,264 | 696,576 |
| Events in quadrant C | 3,158,269 | 668,726 |
| Events in quadrant D | 3,598,565 | 634,085 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12949 | 2 |
| B | 0 | 13642 | 2 |
| C | 0 | 13294 | 2 |
| D | 0 | 14904 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6184 | 19 | 0.307245% |
| B | 6184 | 26 | 0.420440% |
| C | 6183 | 54 | 0.873362% |
| D | 6183 | 201 | 3.250849% |

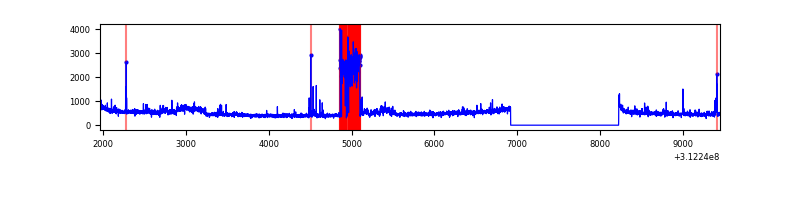

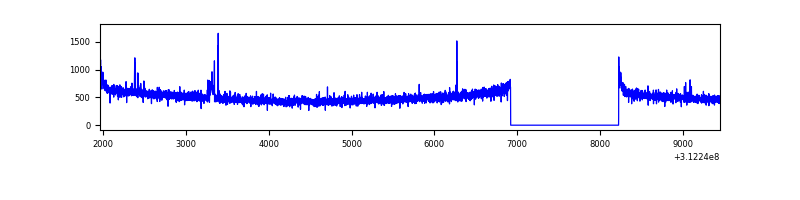

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7489 | 6185 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7489 | 6185 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7488 | 6184 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7488 | 6184 | 199 | 199 | 2.66% | 3.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9510 | 55.75 | 785 | 771 | 156.7 |
| A | 3 | 137 | 6660 | 37.57 | 785 | 771 | 156.7 |
| A | 0 | 226 | 6645 | 37.47 | 785 | 771 | 156.7 |
| B | 0 | 244 | 158201 | 1054.1 | 791 | 772 | 149.3 |
| B | 0 | 229 | 22493 | 145.44 | 791 | 772 | 149.3 |
| B | 12 | 111 | 17941 | 114.96 | 791 | 772 | 149.3 |
| C | 14 | 238 | 122348 | 684.79 | 764 | 770 | 177.5 |
| C | 10 | 22 | 41801 | 231.11 | 764 | 770 | 177.5 |
| C | 0 | 10 | 11200 | 58.74 | 764 | 770 | 177.5 |
| D | 13 | 249 | 568216 | 3101.3 | 752 | 730 | 183.0 |
| D | 7 | 222 | 104900 | 569.28 | 752 | 730 | 183.0 |
| D | 1 | 52 | 35532 | 190.19 | 752 | 730 | 183.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

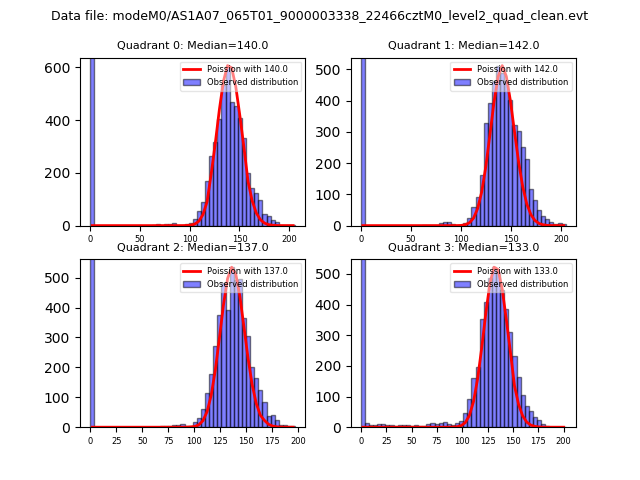

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

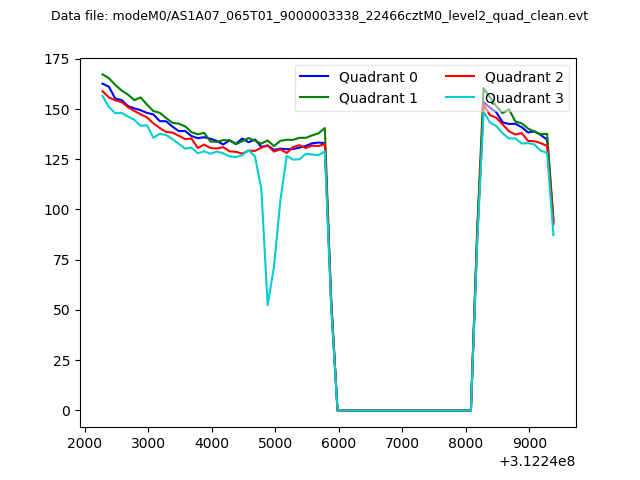

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

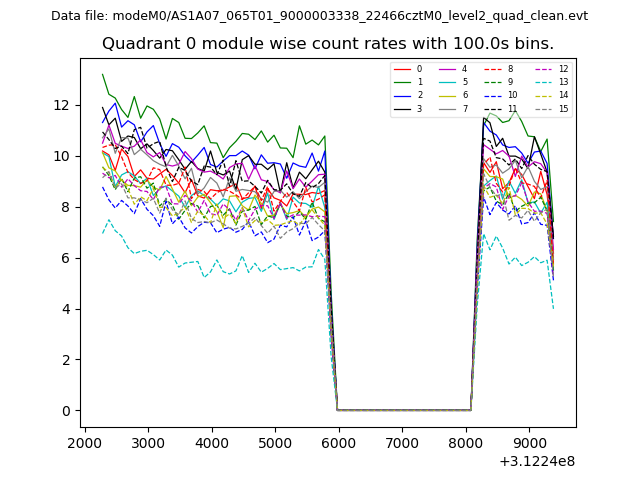

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

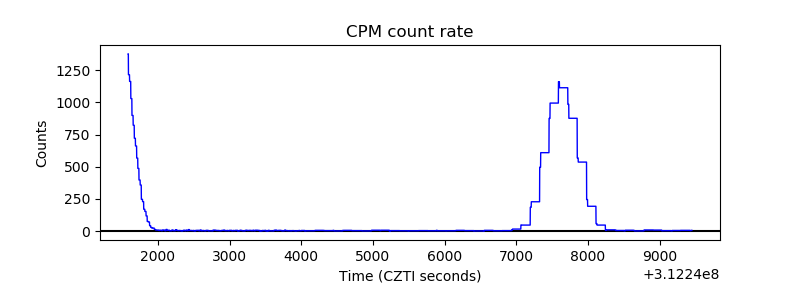

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

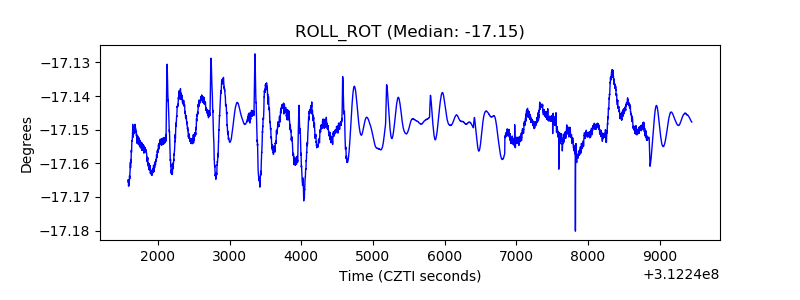

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
