| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_149T09_9000003336_22456cztM0_level2.evt | modeM0/AS1T03_149T09_9000003336_22456cztM0_level2_quad_clean.evt |
| Size (bytes) | 210,850,560 | 45,688,320 |
| Size | 201.1 MB | 43.6 MB |
| Events in quadrant A | 1,457,090 | 296,926 |
| Events in quadrant B | 1,753,175 | 298,889 |
| Events in quadrant C | 1,491,005 | 285,690 |
| Events in quadrant D | 1,475,581 | 285,184 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6338 | 1 |
| B | 0 | 7105 | 1 |
| C | 0 | 6352 | 1 |
| D | 0 | 6521 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 62 | 0 |
| B | 0 | 62 | 0 |
| C | 0 | 62 | 0 |
| D | 0 | 62 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3042 | 90 | 2.958580% |
| B | 3042 | 191 | 6.278764% |
| C | 3042 | 120 | 3.944773% |
| D | 3042 | 74 | 2.432610% |

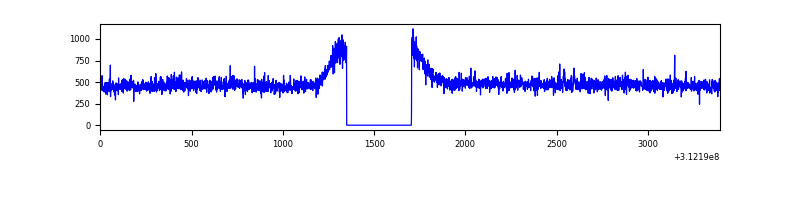

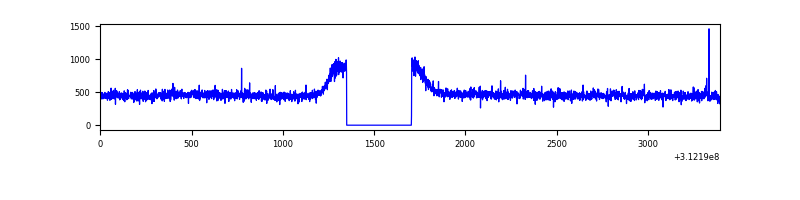

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3397 | 3042 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3397 | 3042 | 68 | 68 | 2.00% | 2.24% |  |
| C | 3397 | 3042 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3397 | 3042 | 2 | 2 | 0.06% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 4184 | 49.22 | 377 | 367 | 77.5 |
| A | 3 | 137 | 3510 | 40.53 | 377 | 367 | 77.5 |
| A | 0 | 226 | 3209 | 36.65 | 377 | 367 | 77.5 |
| B | 10 | 245 | 243996 | 3344.21 | 371 | 361 | 72.9 |
| B | 4 | 173 | 52712 | 718.59 | 371 | 361 | 72.9 |
| B | 12 | 111 | 9292 | 122.59 | 371 | 361 | 72.9 |
| C | 14 | 238 | 56200 | 633.1 | 367 | 369 | 88.2 |
| C | 13 | 61 | 2561 | 24.85 | 367 | 369 | 88.2 |
| C | 10 | 91 | 1931 | 17.71 | 367 | 369 | 88.2 |
| D | 1 | 52 | 70810 | 765.81 | 372 | 361 | 92.0 |
| D | 2 | 234 | 11178 | 117.58 | 372 | 361 | 92.0 |
| D | 14 | 226 | 3664 | 35.9 | 372 | 361 | 92.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

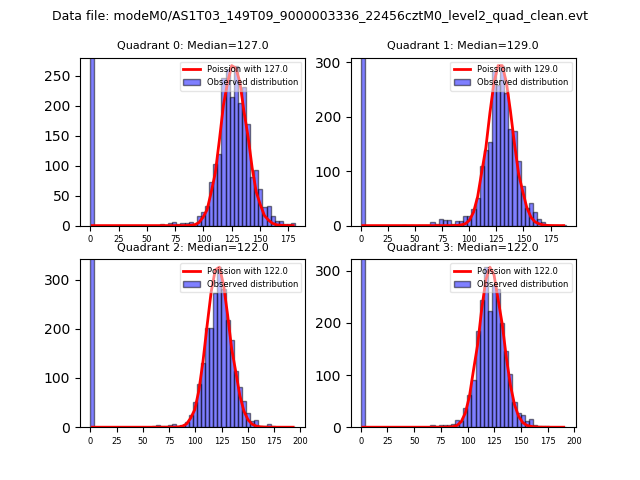

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

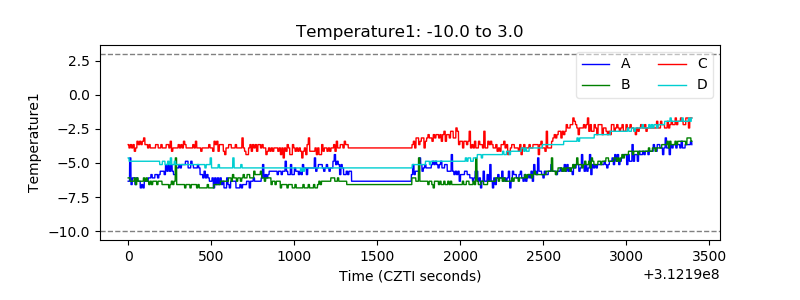

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

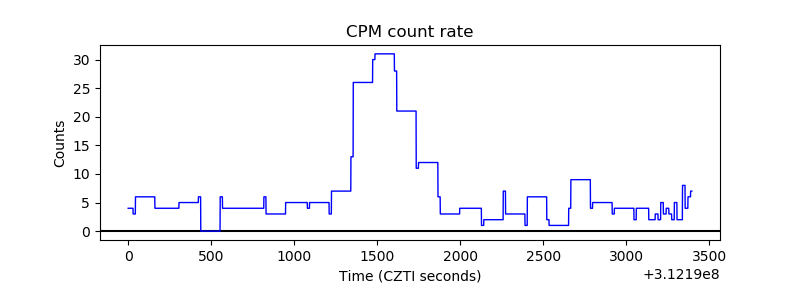

| _CPM_Rate |  |

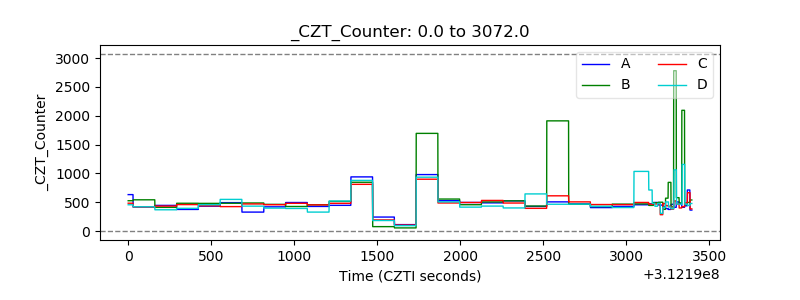

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
