| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_144T02_9000003340_22484cztM0_level2.evt | modeM0/AS1A07_144T02_9000003340_22484cztM0_level2_quad_clean.evt |
| Size (bytes) | 391,973,760 | 73,987,200 |
| Size | 373.8 MB | 70.6 MB |
| Events in quadrant A | 3,265,890 | 587,854 |
| Events in quadrant B | 3,432,328 | 597,678 |
| Events in quadrant C | 1,012,820 | 125 |
| Events in quadrant D | 3,674,158 | 562,635 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14530 | 1 |
| B | 0 | 14999 | 1 |
| C | 0 | 7029 | 1 |
| D | 0 | 15925 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7026 | 76 | 1.081697% |
| B | 7027 | 135 | 1.921161% |
| C | 7026 | 7026 | 100.000000% |
| D | 7026 | 105 | 1.494449% |

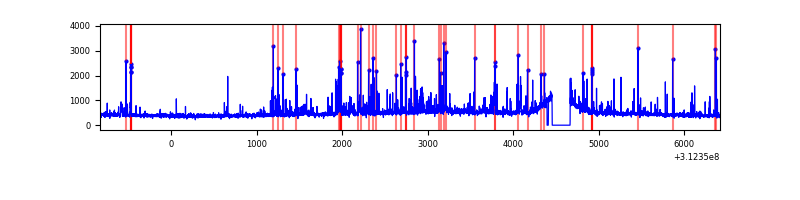

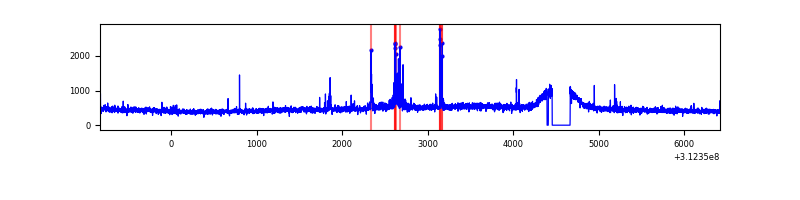

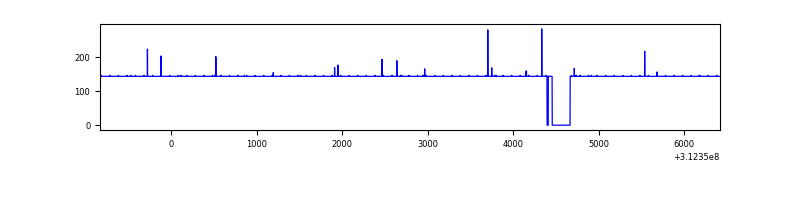

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

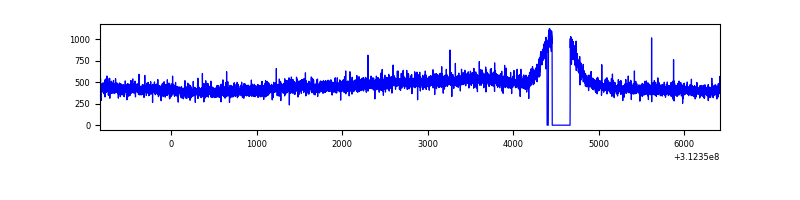

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7251 | 7027 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7252 | 7028 | 11 | 11 | 0.15% | 0.16% |  |
| C | 7250 | 7025 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7251 | 7027 | 47 | 47 | 0.65% | 0.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10958 | 59.07 | 846 | 827 | 171.5 |
| A | 3 | 137 | 7536 | 39.12 | 846 | 827 | 171.5 |
| A | 0 | 226 | 7248 | 37.44 | 846 | 827 | 171.5 |
| B | 15 | 33 | 64498 | 389.55 | 841 | 820 | 163.5 |
| B | 0 | 190 | 41057 | 246.15 | 841 | 820 | 163.5 |
| B | 12 | 111 | 20243 | 118.82 | 841 | 820 | 163.5 |
| C | 7 | 119 | 999212 | 621290.93 | 2 | 2 | 1.6 |
| C | 7 | 226 | 2044 | 1269.68 | 2 | 2 | 1.6 |
| C | 14 | 238 | 944 | 585.72 | 2 | 2 | 1.6 |
| D | 1 | 52 | 431169 | 2117.85 | 820 | 795 | 203.2 |
| D | 1 | 20 | 58708 | 284.98 | 820 | 795 | 203.2 |
| D | 2 | 234 | 30414 | 145.75 | 820 | 795 | 203.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

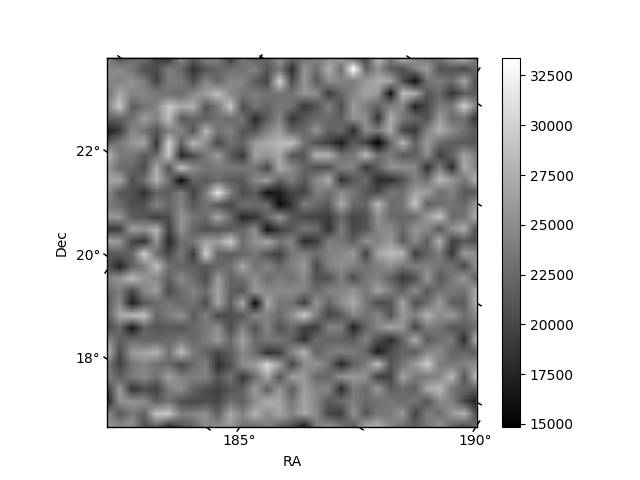

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

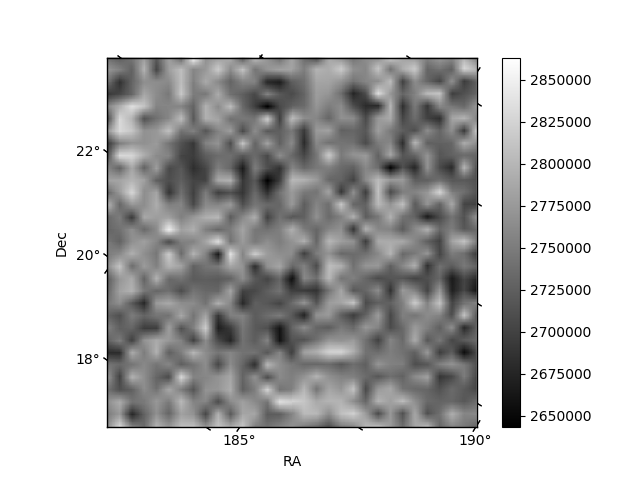

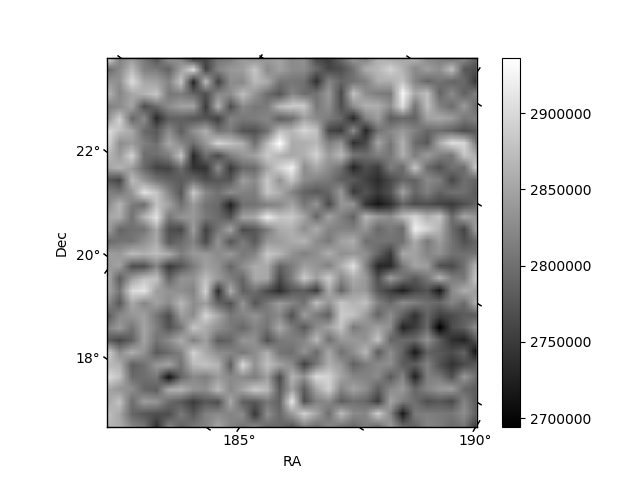

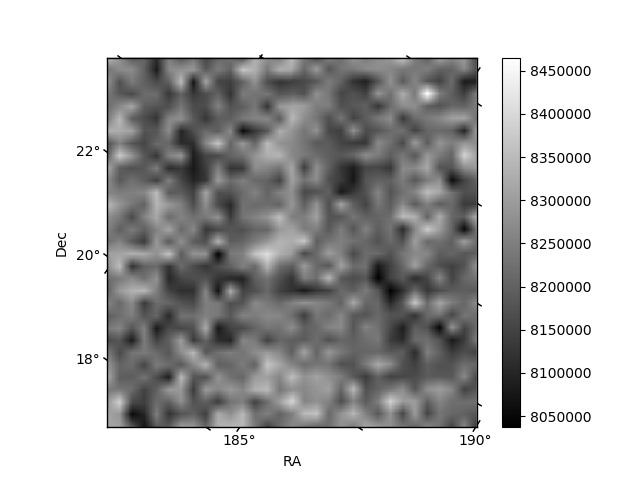

| Plot type | Count rate plots | Images |
|---|---|---|

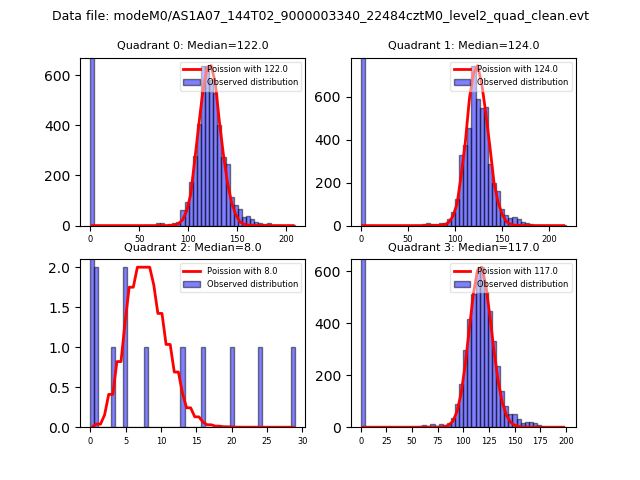

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

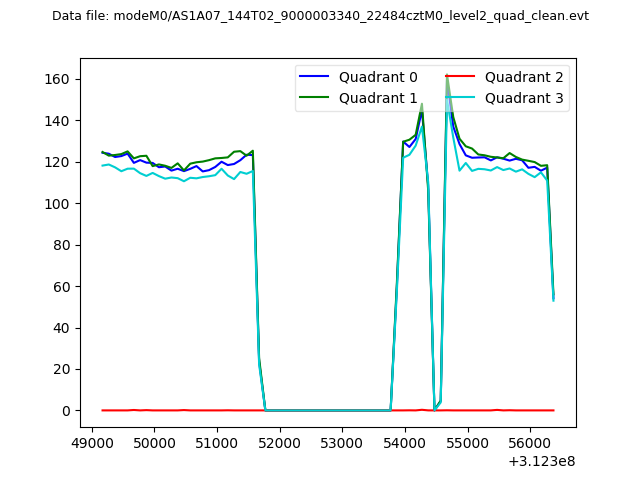

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

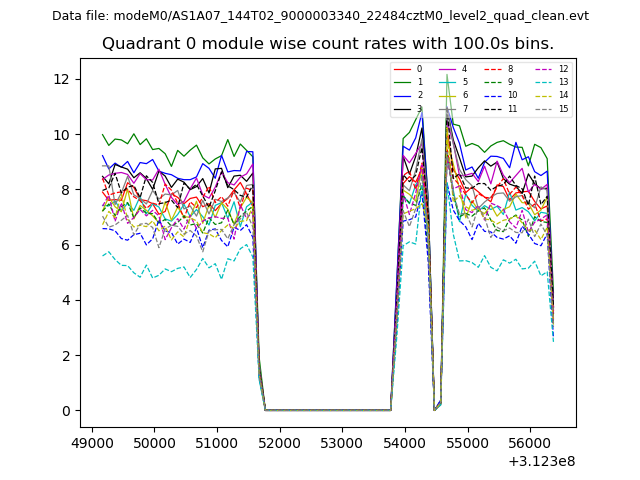

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

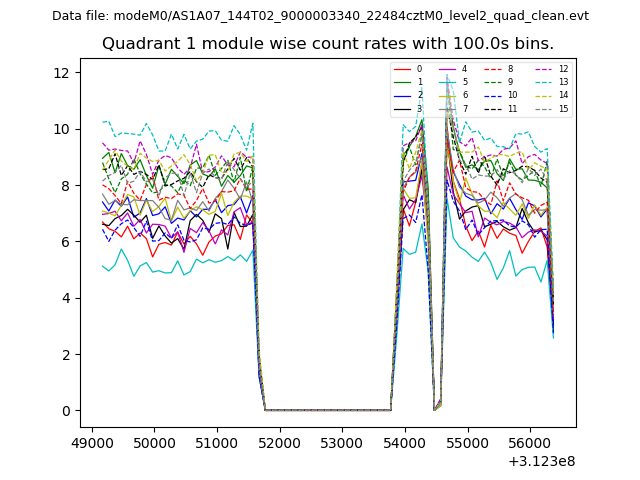

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

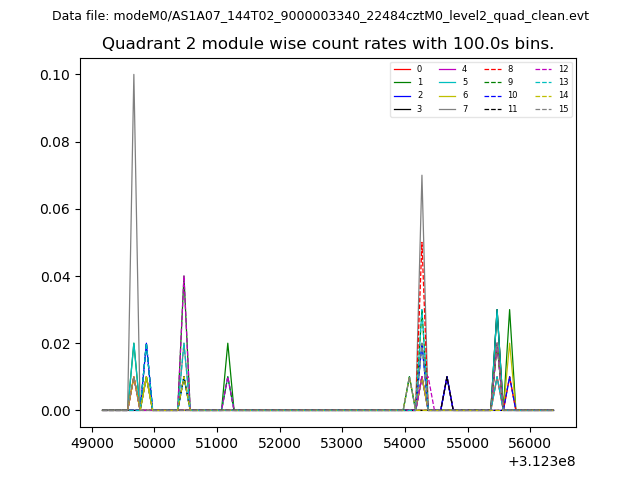

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

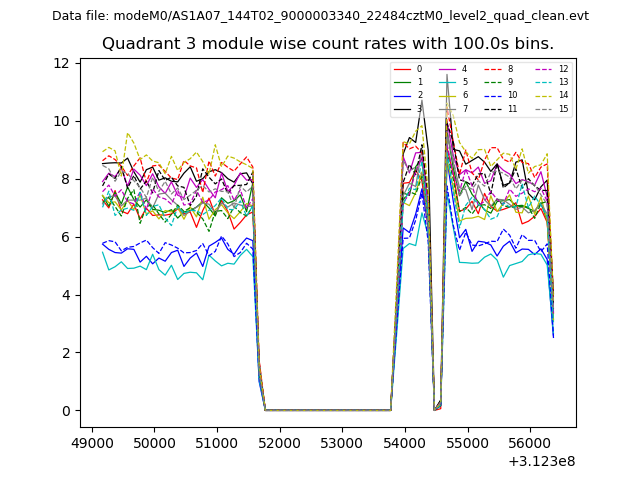

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

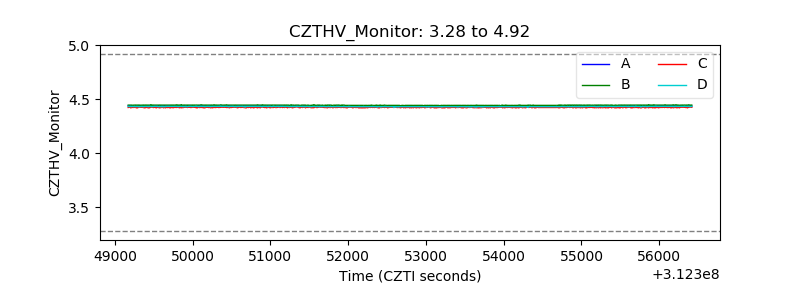

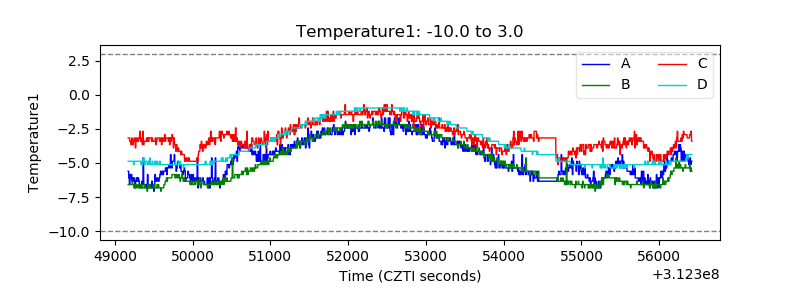

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

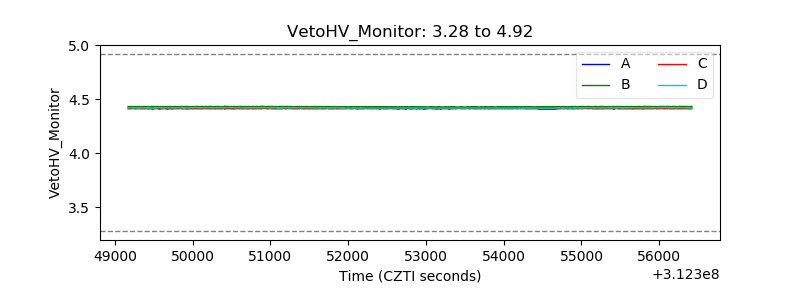

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

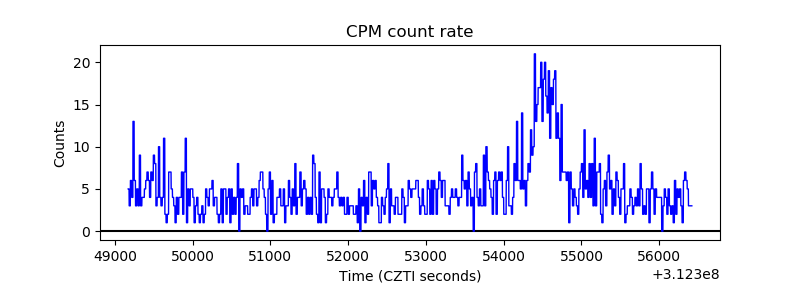

| _CPM_Rate |  |

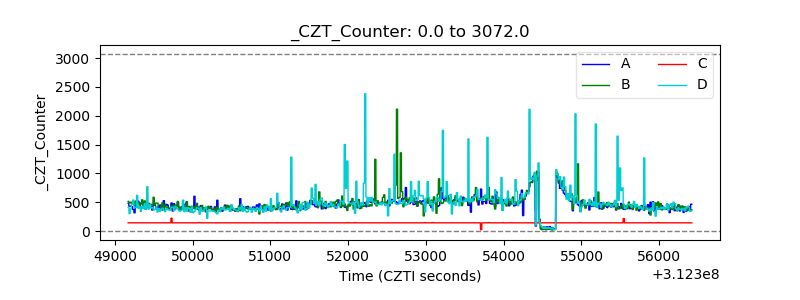

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

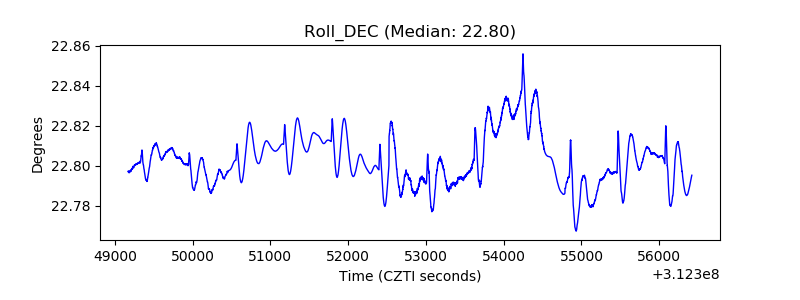

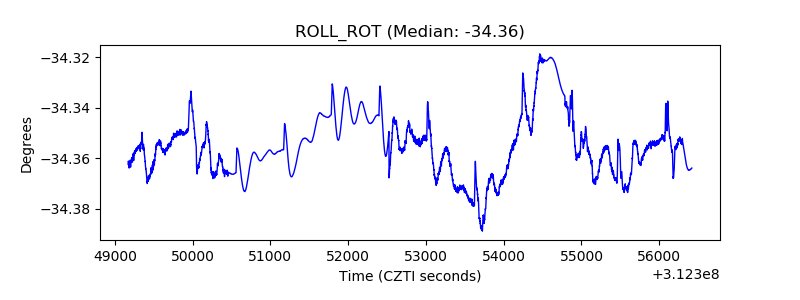

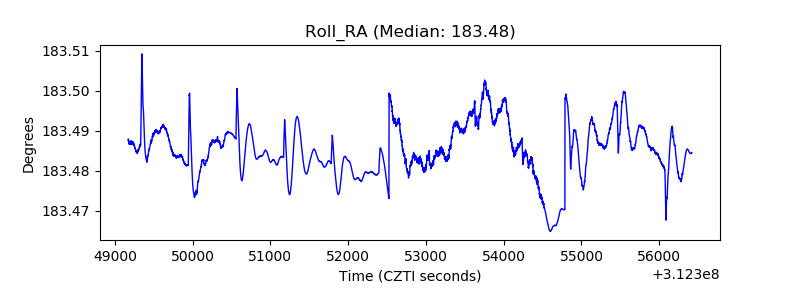

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

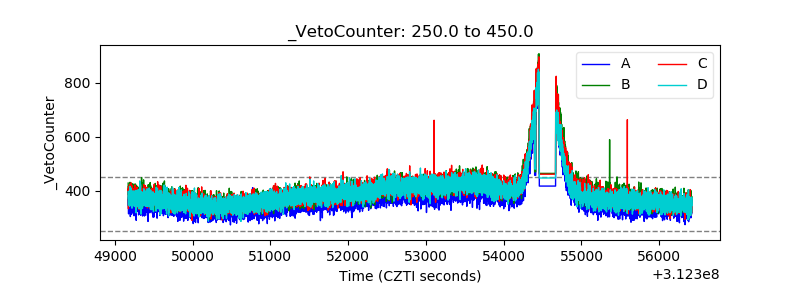

| Veto Counter |  |
